Telematics Communication Interface Control Module X1 (UE1)

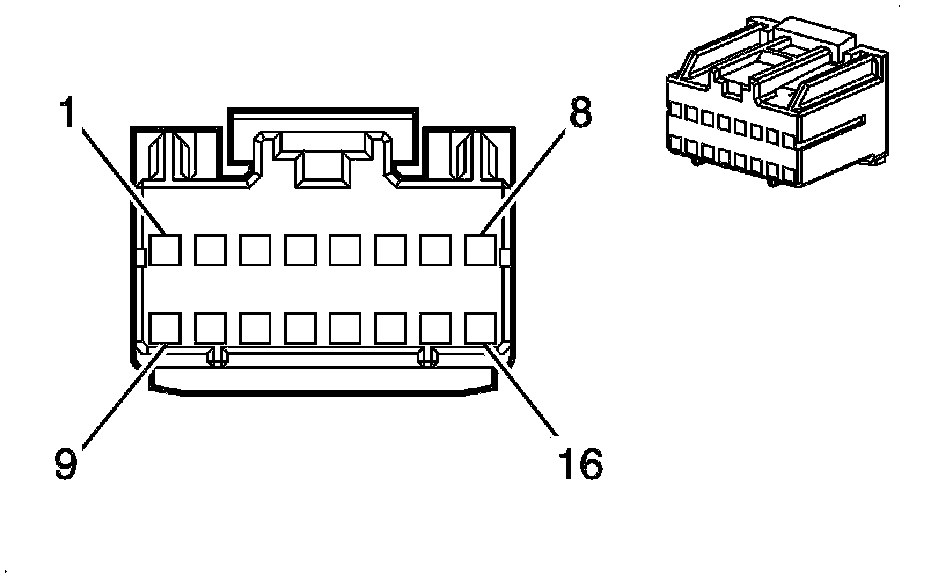

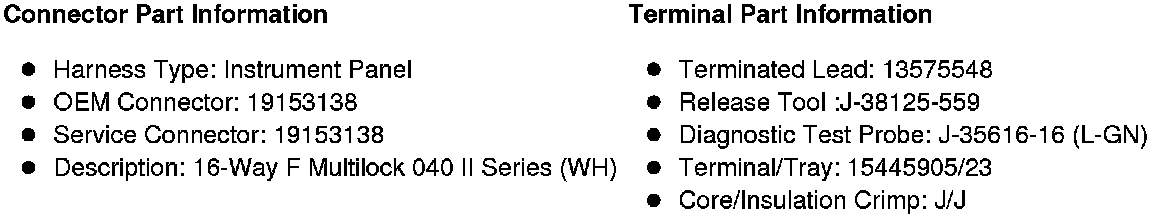

Component Connector End Views

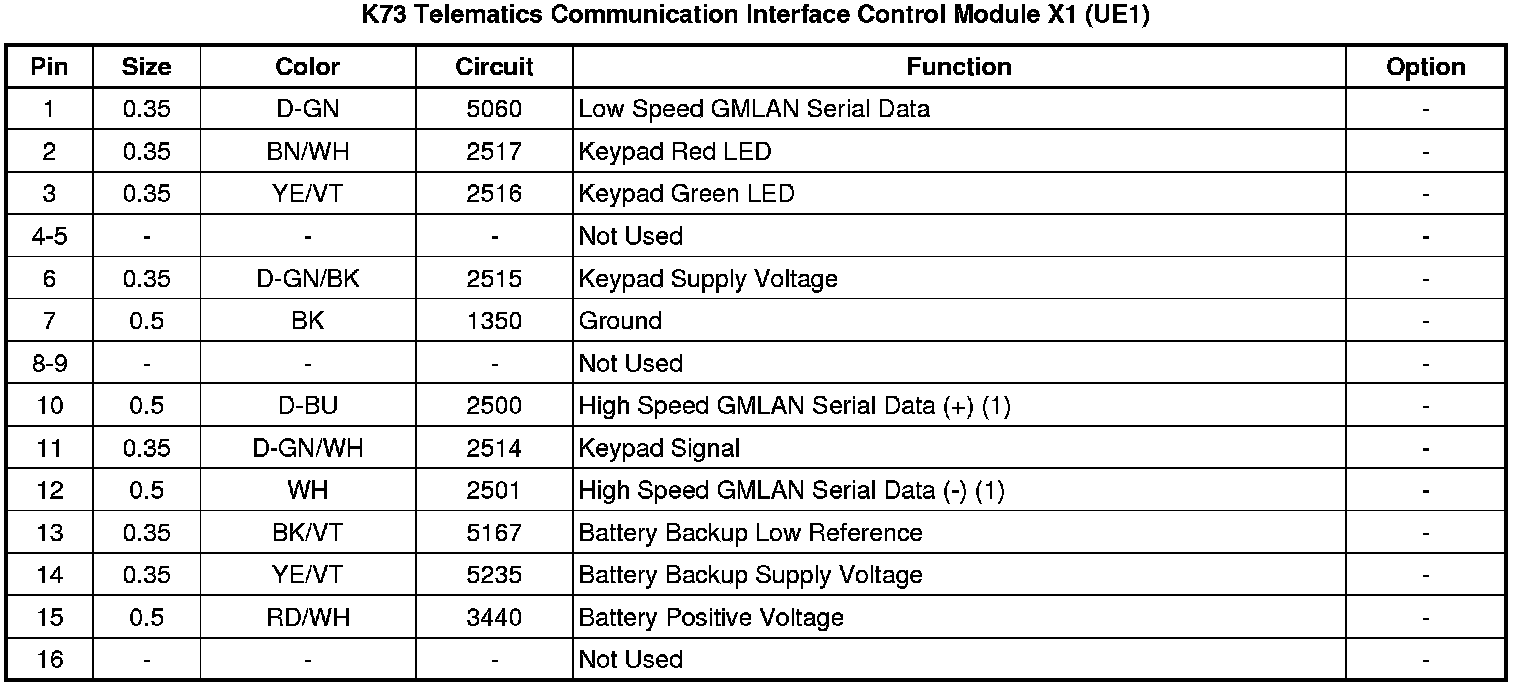

K73 Telematics Communication Interface
Control Module
X1 (UE1)
