Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch

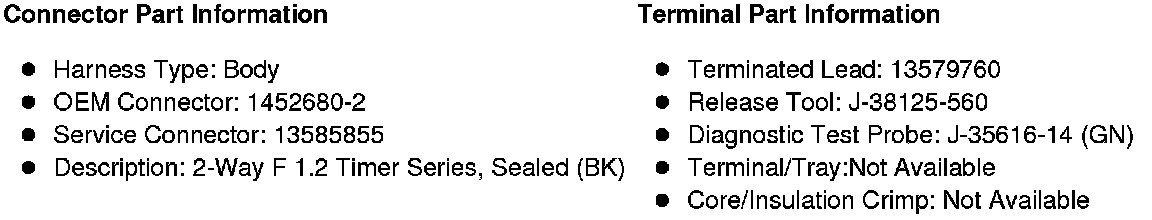

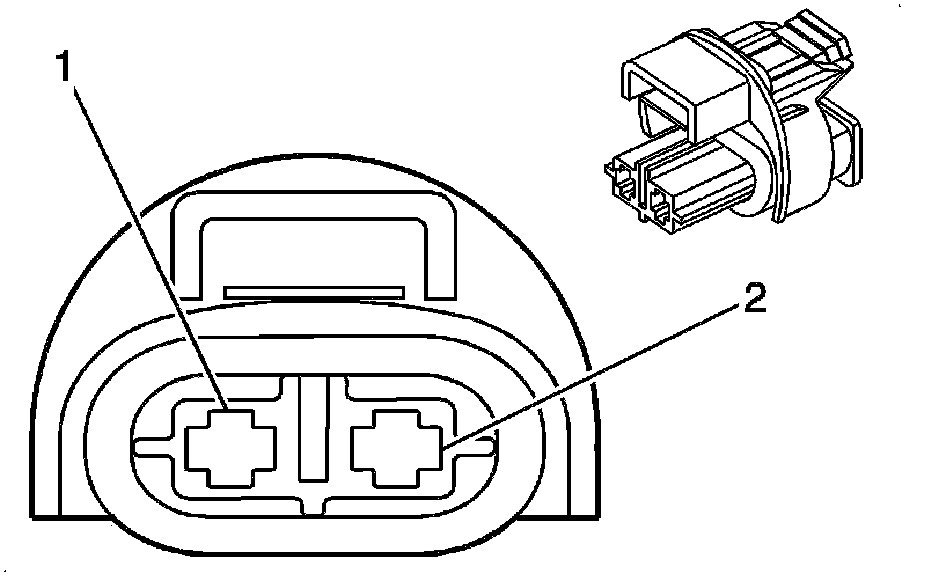

Component Connector End Views

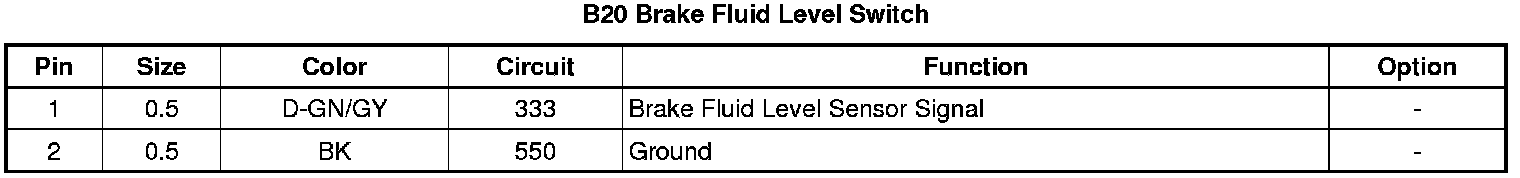

B20 Brake Fluid Level Switch
