Acceleration Sensor, Suspension Control
Acceleration Sensor, Suspension Control

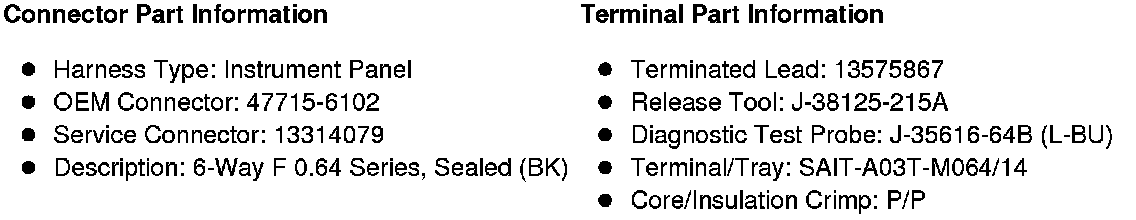

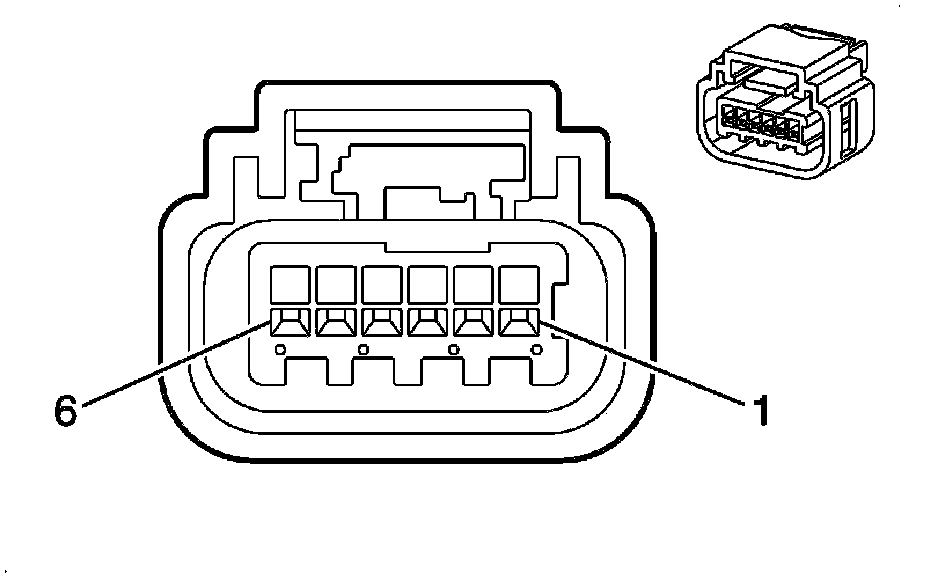

Component Connector End Views

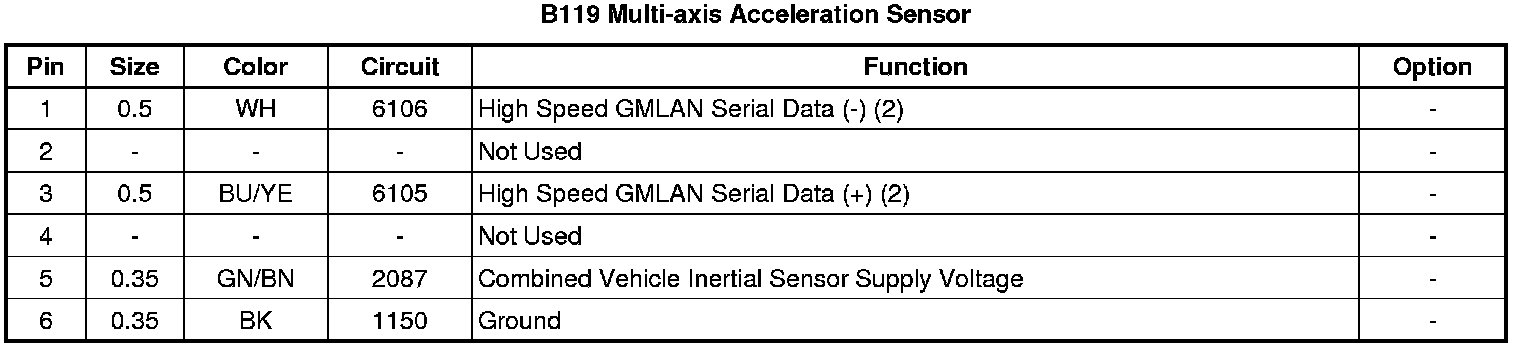

B119 Multi-axis
Acceleration Sensor
