Turbo Boost Sensor
Component Connector End Views

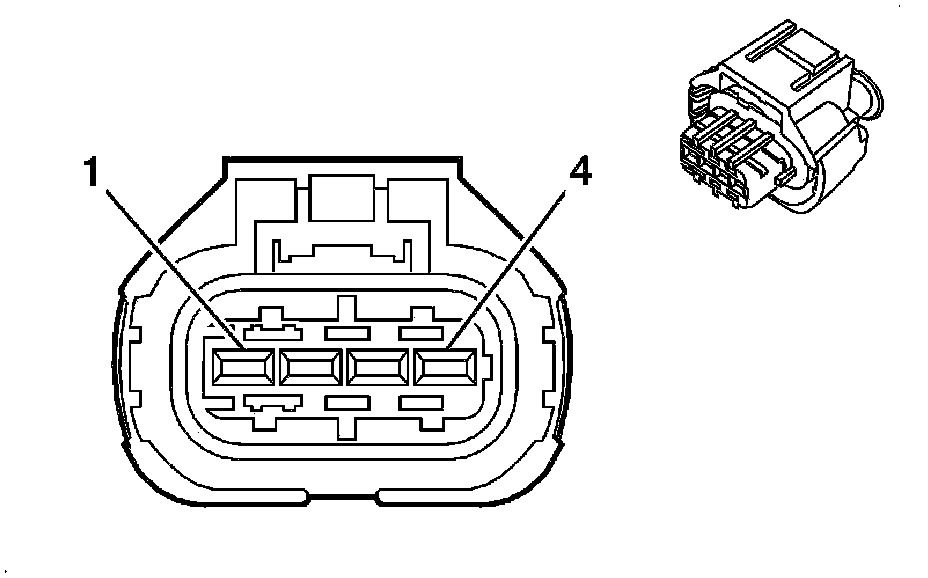

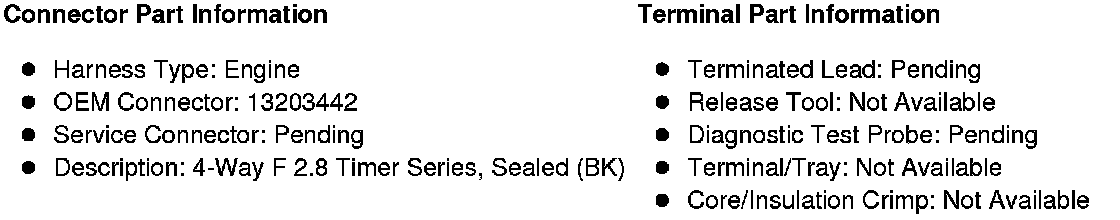

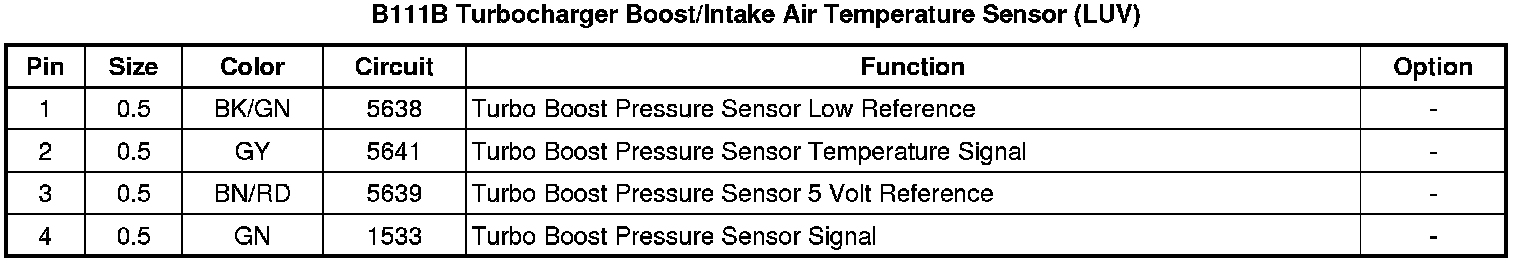

B111B Turbocharger Boost/Intake Air Temperature Sensor (LUV)
