Air Flow Meter/Sensor: Locations

Front of Vehicle/Engine Compartment Component Views

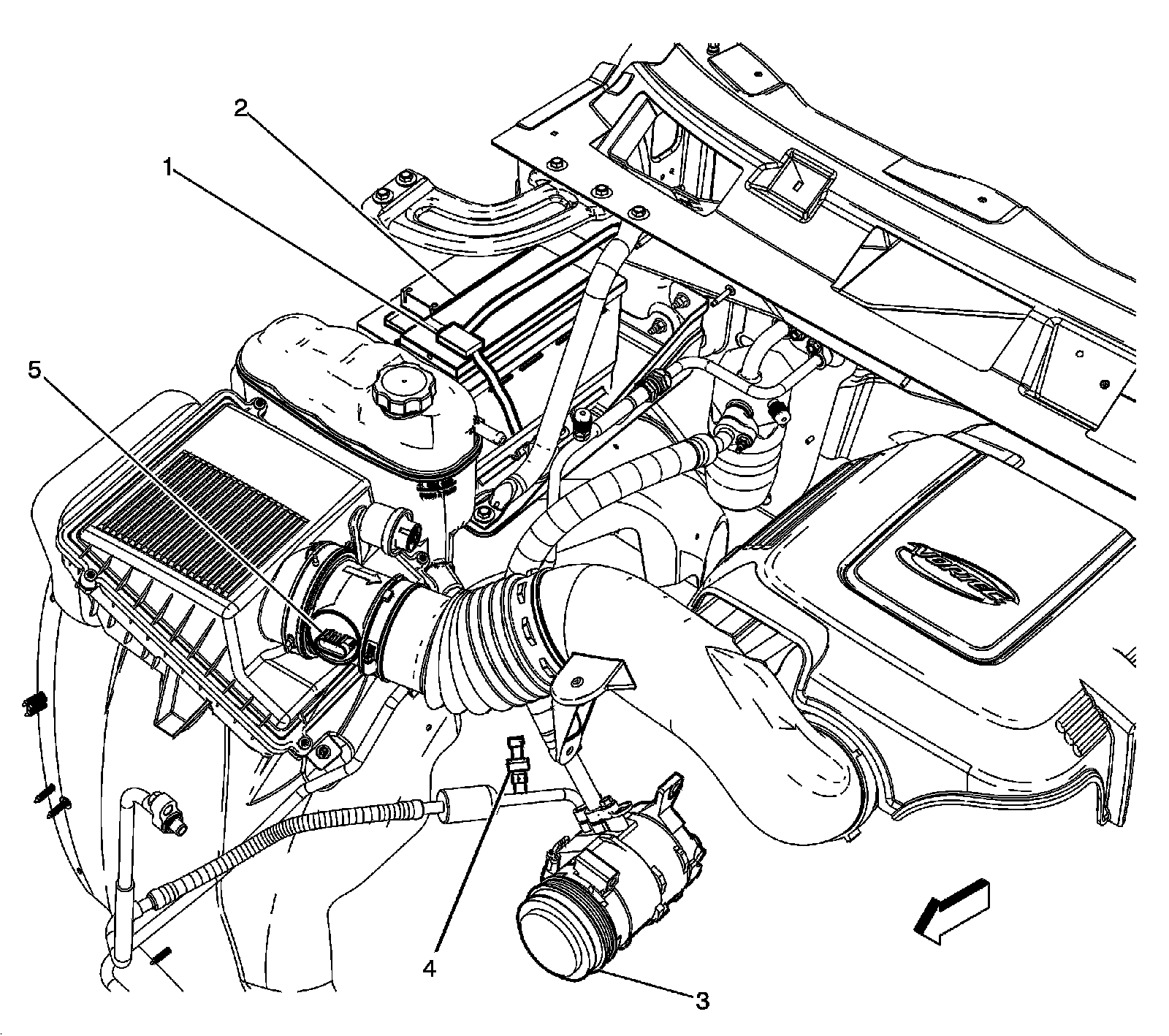

Right Rear of the Engine Compartment Components (4.8L/5.3L/6.0L/6.2L except HP2)




1 - Fuse Holder
2 - Battery - Right
3 - A/C Compressor Clutch (C67 or CJ2)
4 - A/C Refrigerant Pressure Sensor (C67 or CJ2)
5 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
