Battery Current Sensor: Locations

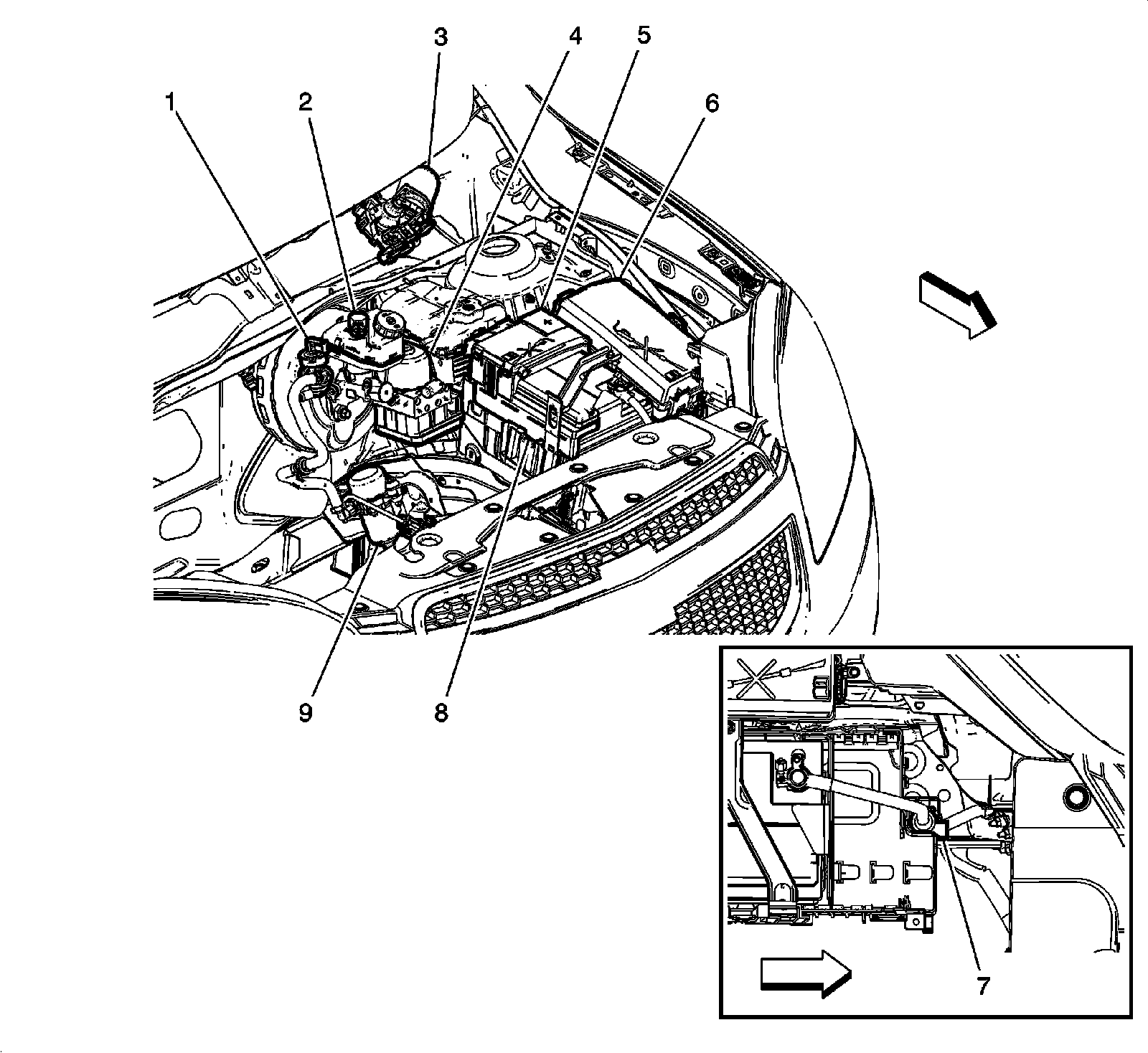

Front of Vehicle/Engine Compartment Component Views

Left Rear of the Engine Compartment





1 - B19C Brake Booster Vacuum Switch

2 - M75 Windshield Wiper Motor

3 - B20 Brake Fluid Level Switch

4 - K17 Electronic Brake Control Module

5 - X50B Fuse Block - Underhood Auxiliary

6 - C1 Battery

7 - X50A Fuse Block - Underhood

8 - M9 Brake Booster Pump Motor

9 - B18 Battery Current Sensor
