Control Module HVAC: Locations

Instrument Panel/Center Console Component Views

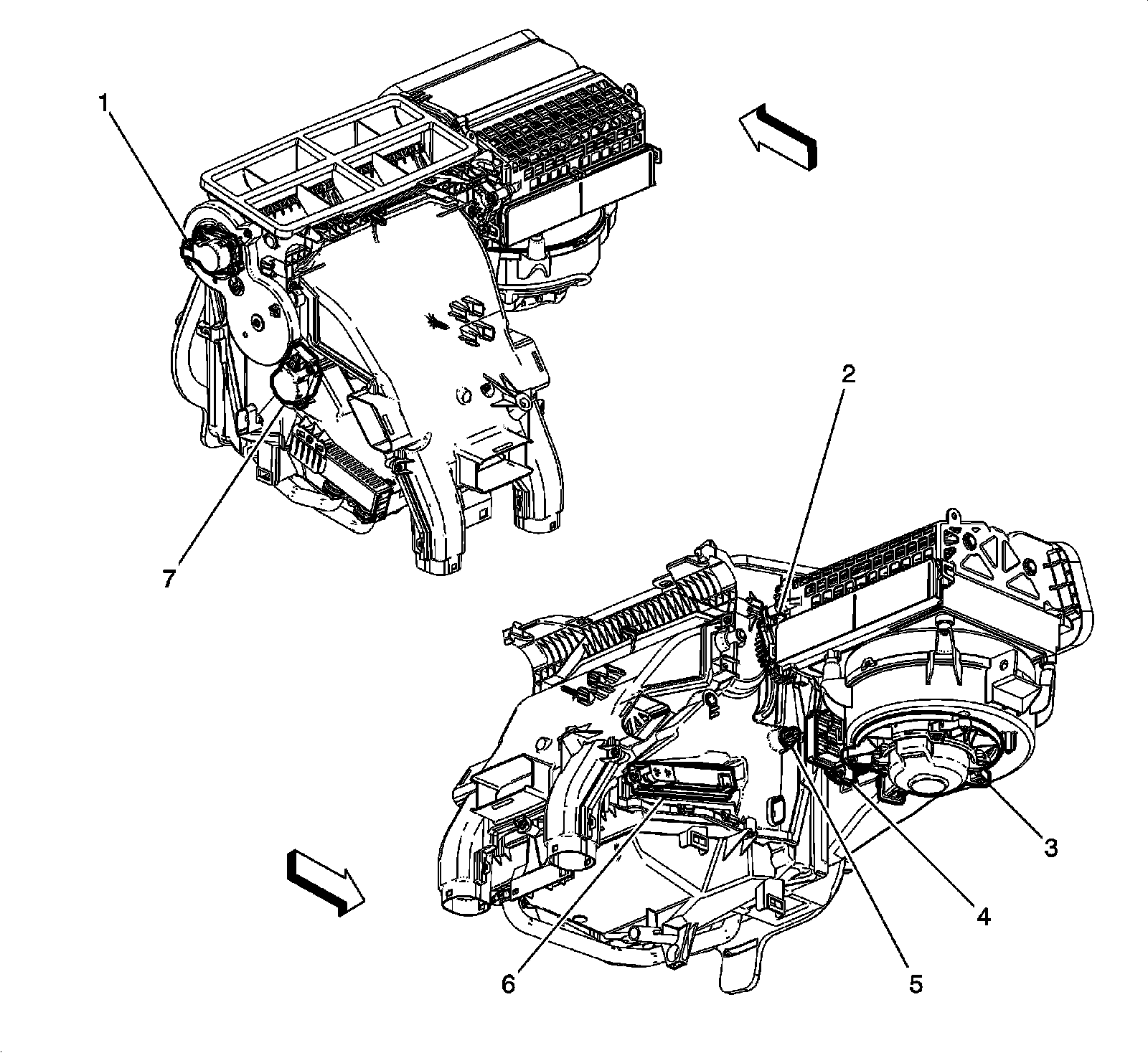

Interior HVAC





1 - M37 Mode Door Actuator

2 - M46 Air Recirculation Door Actuator

3 - M8 Blower Motor

4 - K8 Blower Motor Control Module

5 - B7A Inside Air Temperature Sensor

6 - E40 Electrical Auxiliary Heater

7 - M6 Air Temperature Door Actuator
