Entertainment System Control Module
Entertainment System Control Module

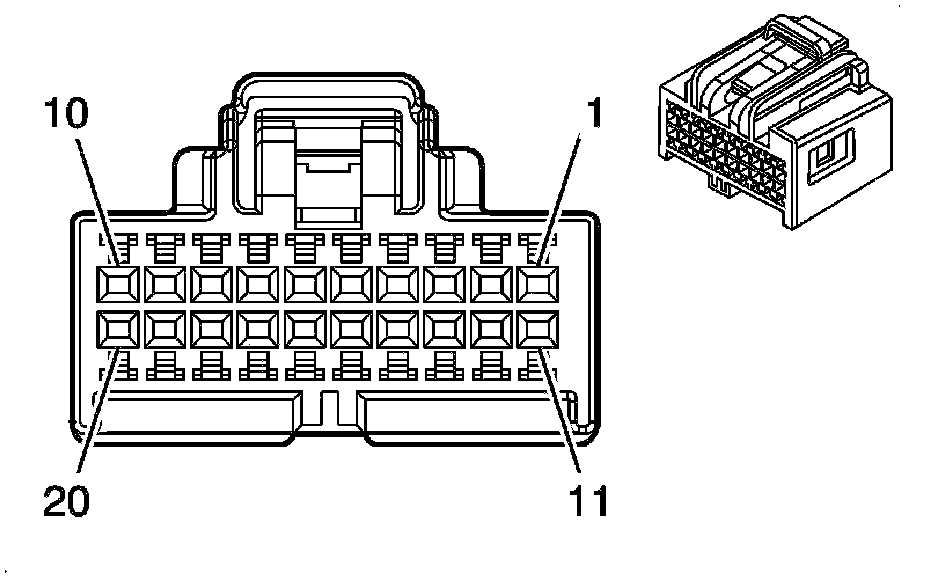

Component Connector End Views

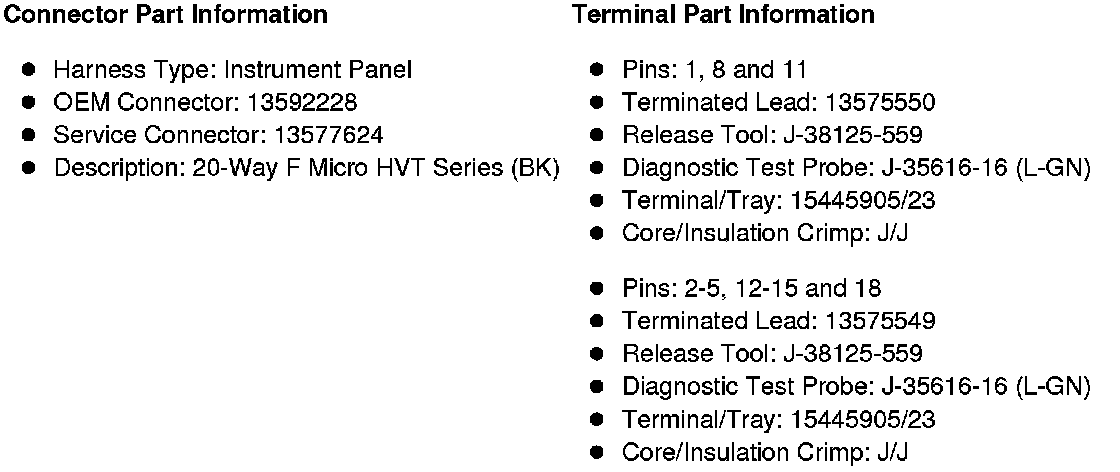

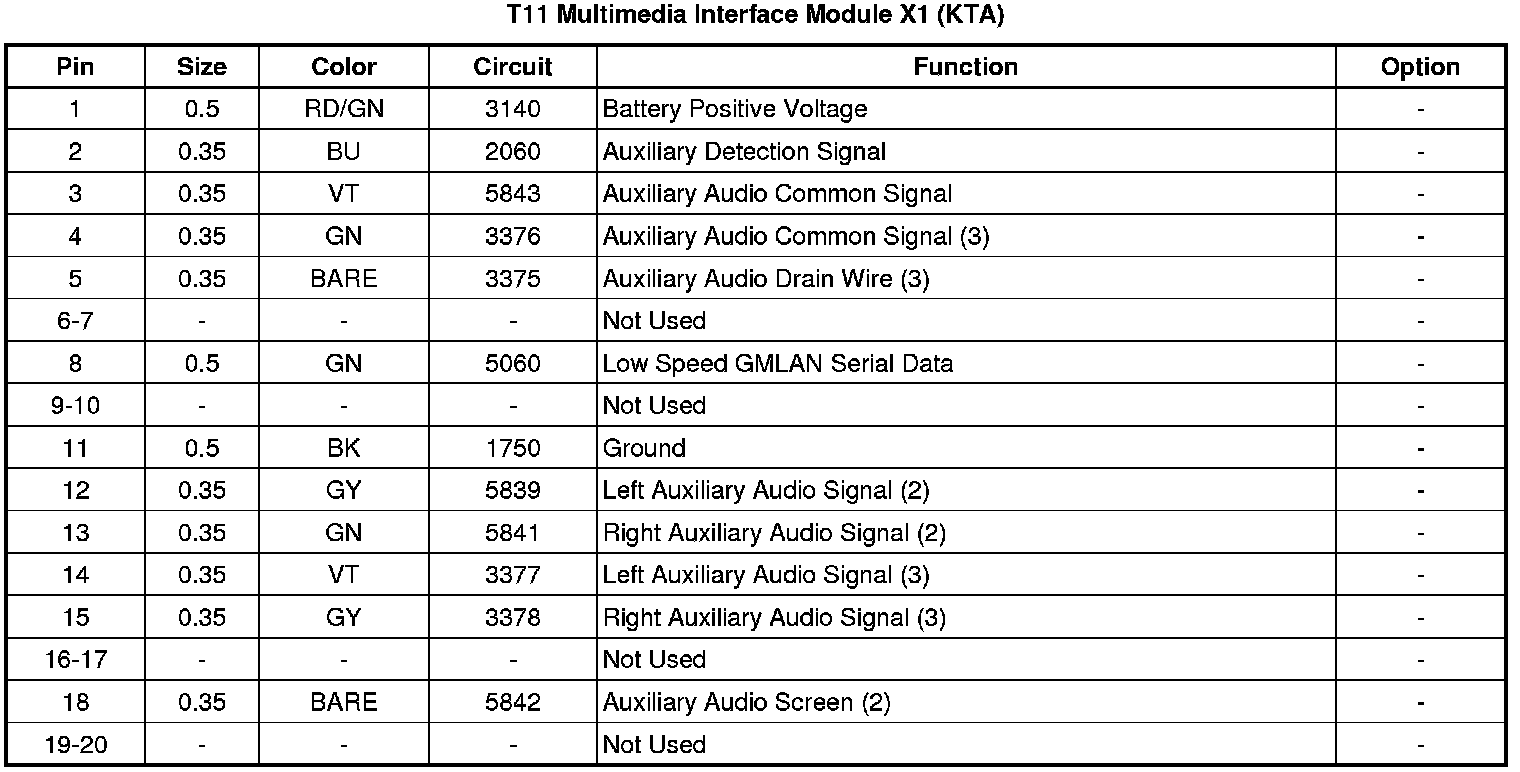

T11 Multimedia Interface Module X1 (KTA)
