Home >> Chevrolet >> 2012 >> Malibu L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module >> Power Steering Control Module (NV7)

Power Steering Control Module (NV7)

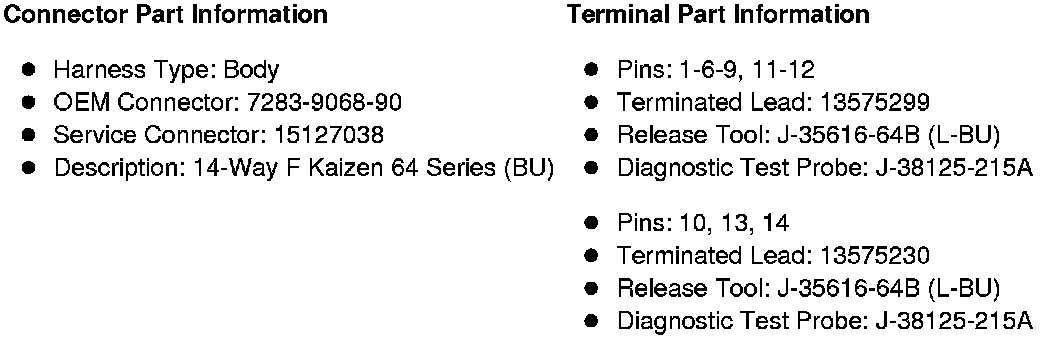

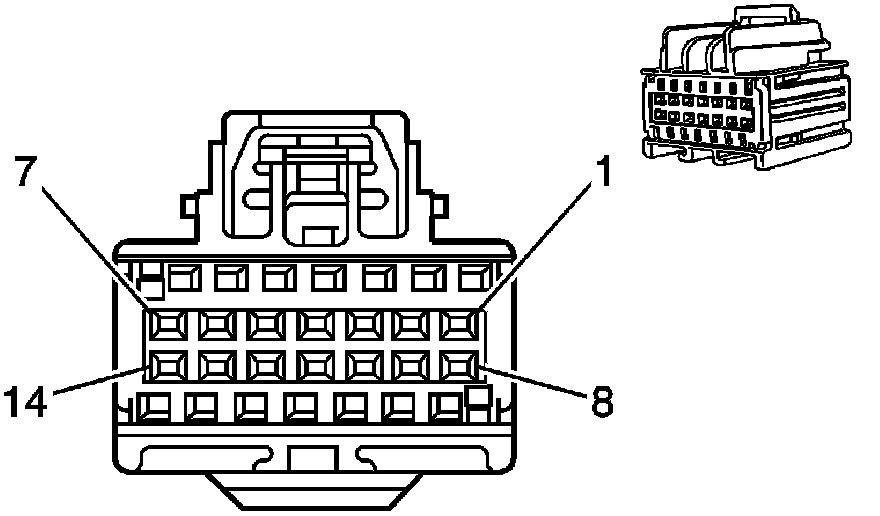

Component Connector End Views

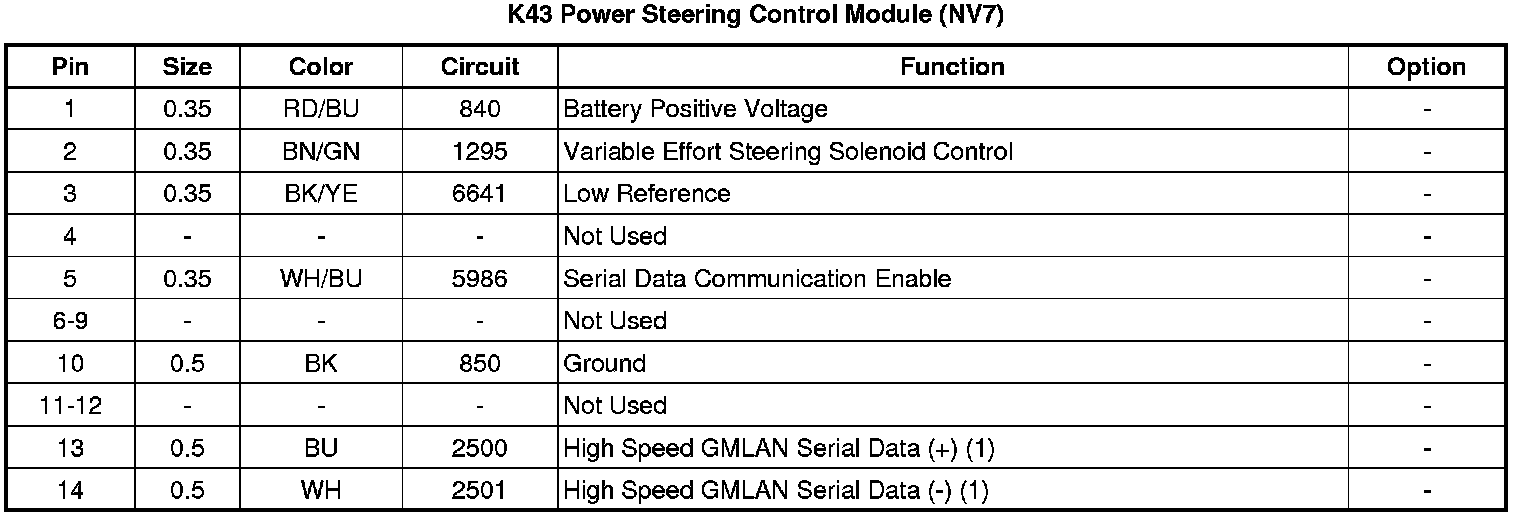

K43 Power Steering Control Module (NV7)
