Keyless Entry Control Module X4 (ATS)

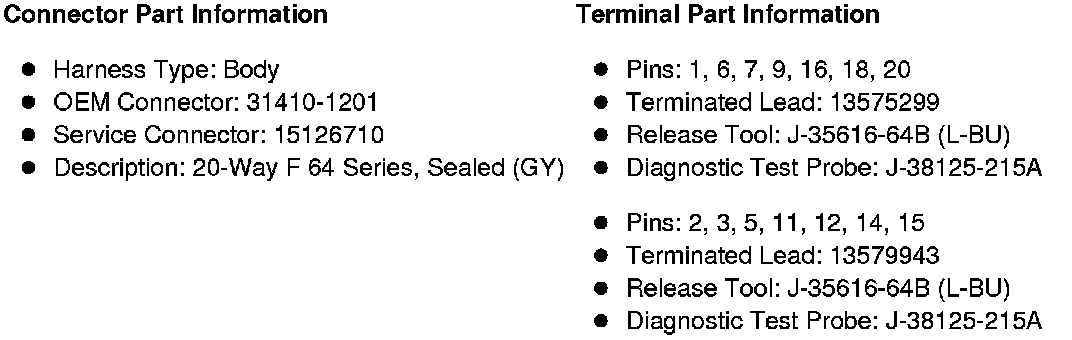

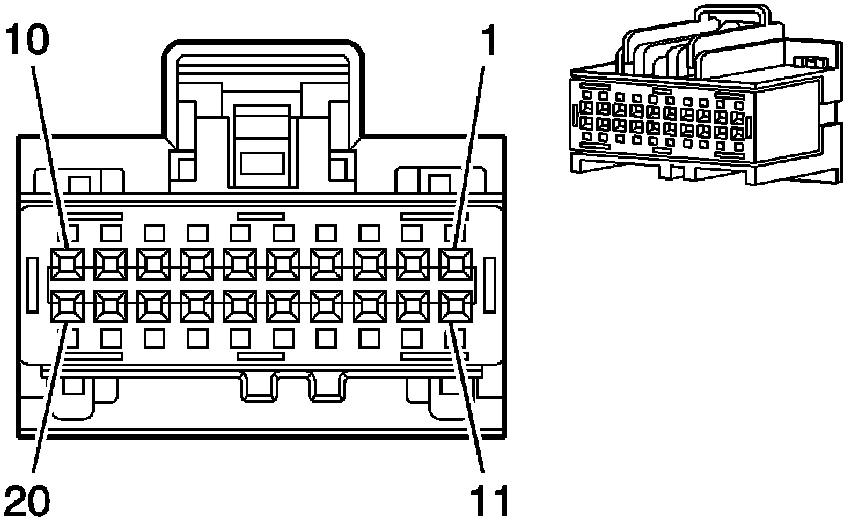

Component Connector End Views

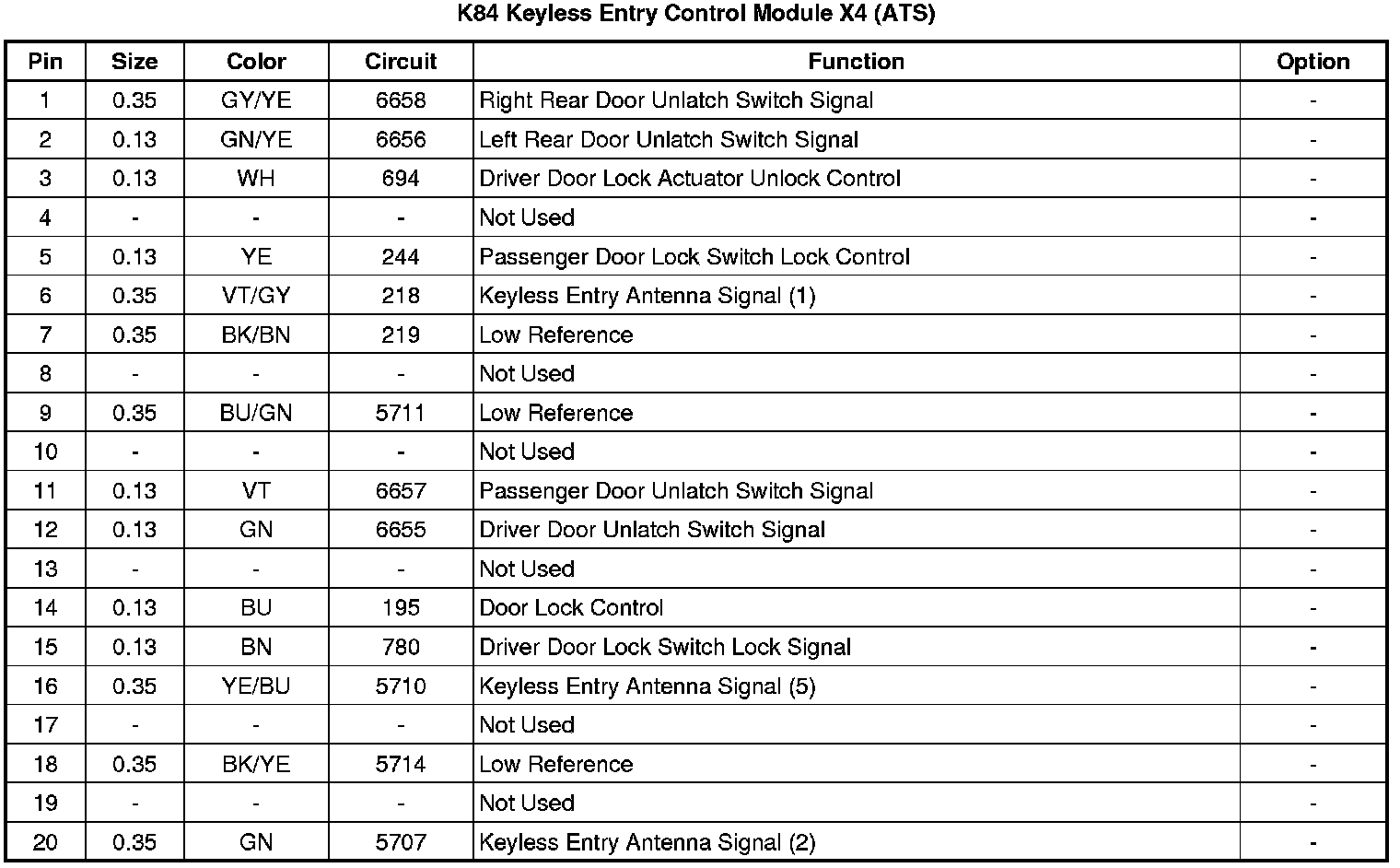

K84 Keyless Entry Control Module X4 (ATS)
