Home >> Chevrolet >> 2012 >> Malibu L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Communications Control Module

Communications Control Module

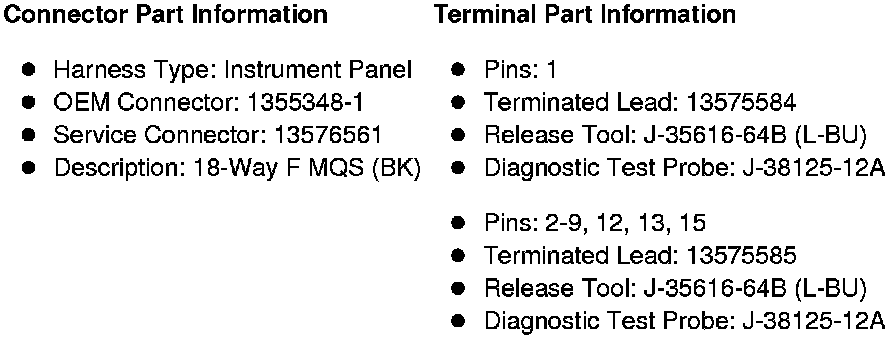

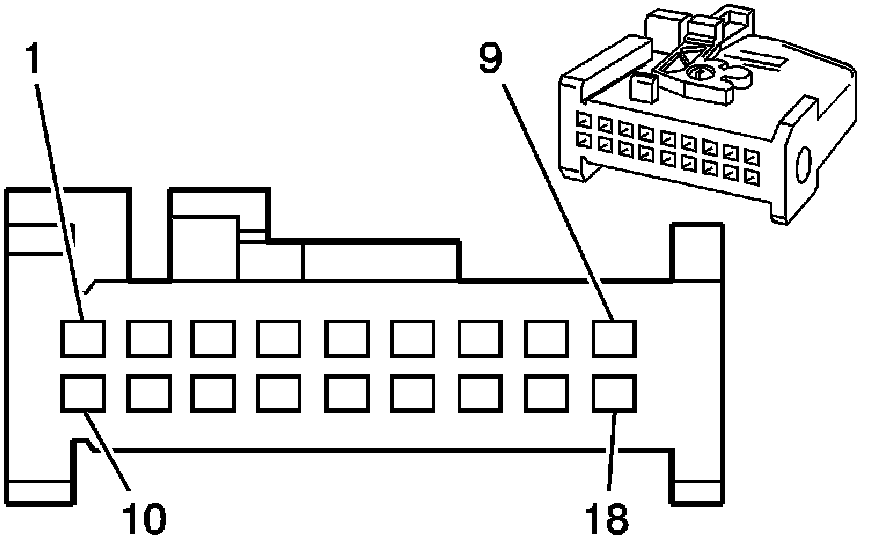

Component Connector End Views

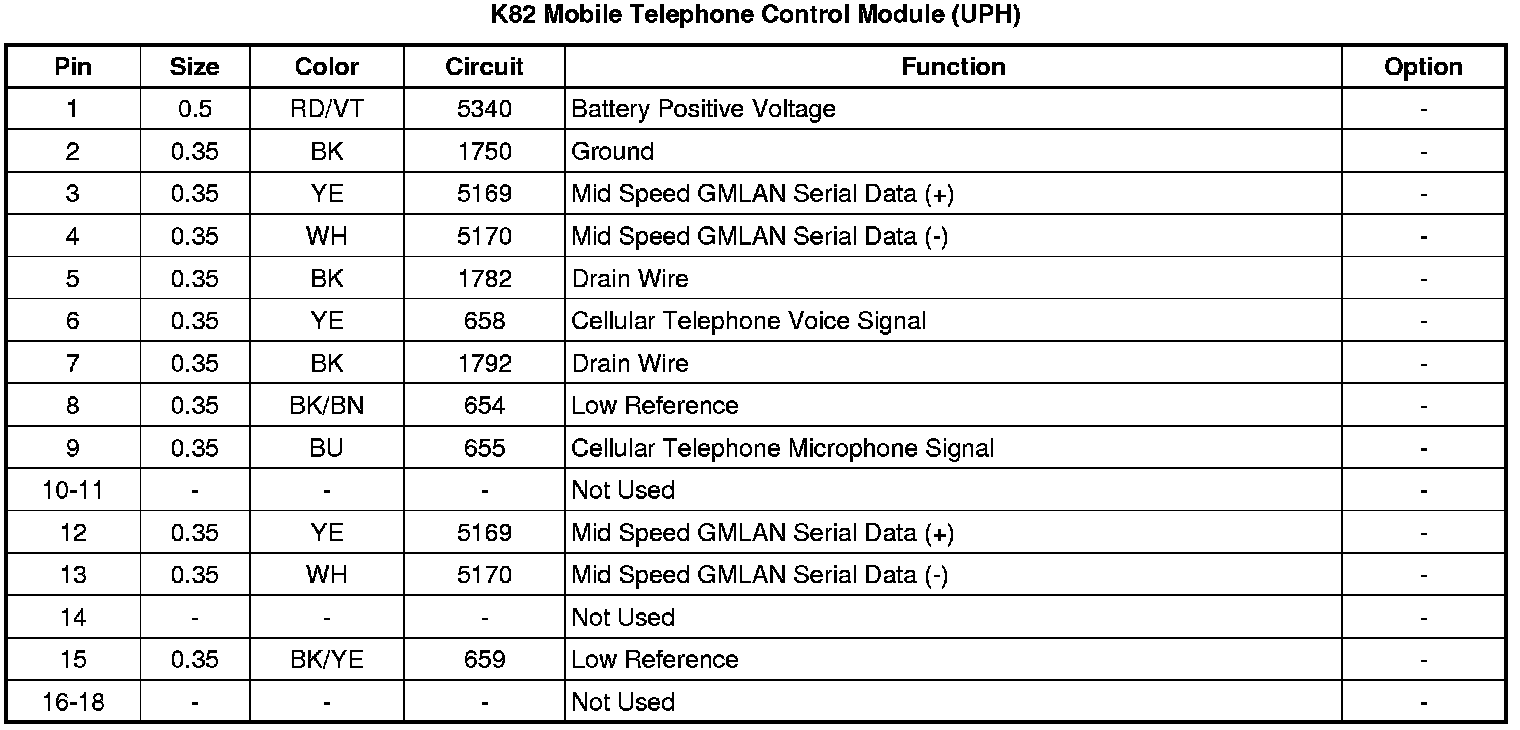

K82 Mobile Telephone Control Module (UPH)
