Arm/Disarm Switch, Antitheft
Arm/Disarm Switch, Antitheft

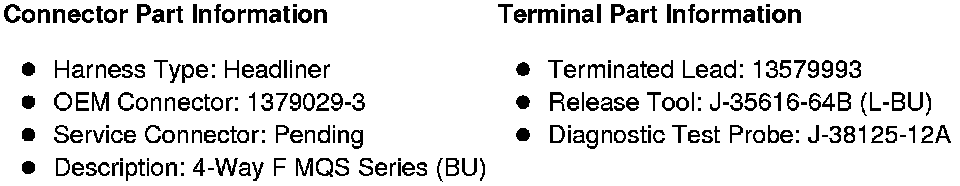

Component Connector End Views

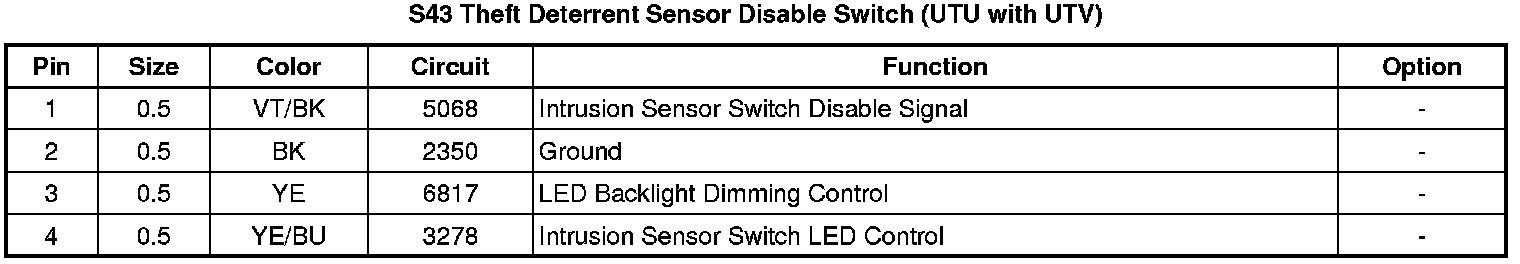

S43 Theft Deterrent Sensor Disable Switch (UTU with UTV)
