Left Side of the Engine

Powertrain Component Views

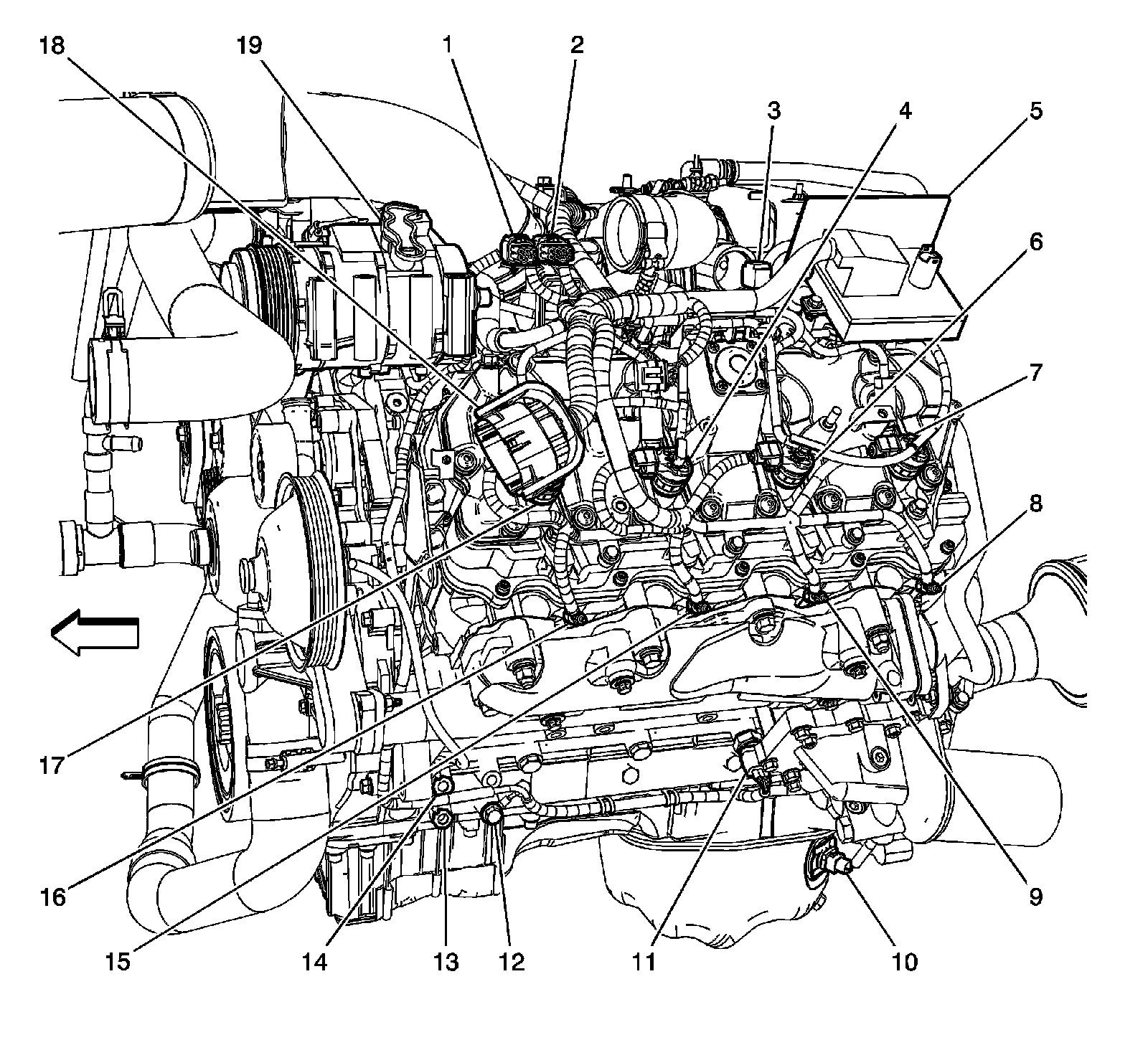

Left Side of the Engine (RPO LML)





1 - X110

2 - X111

3 - Intake Air Temperature (IAT) Sensor

4 - Fuel Injector 4

5 - Glow Plug Control Module (GPCM)

6 - Fuel Injector 6

7 - Fuel Injector 8

8 - Glow Plug 8

9 - Glow Plug 6

10 - Engine Oil Level (EOL) Switch

11 - Engine Oil Pressure (EOP) Sensor

12 - G107

13 - G102

14 - G103

15 - Glow Plug 4

16 - Glow Plug 2

17 - Fuel Injector 2

18 - X101

19 - A/C Compressor
