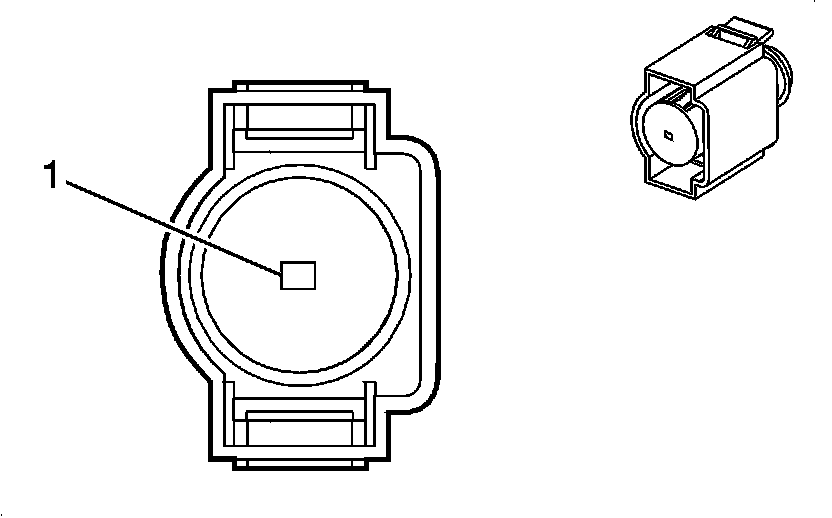

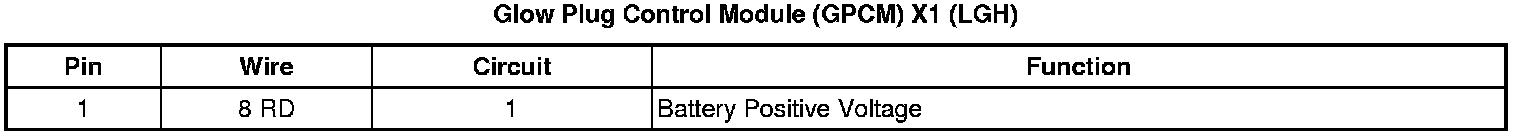

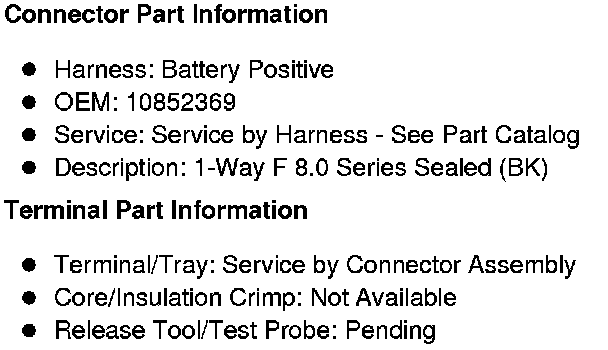

Home >> Chevrolet >> 2012 >> Express 2500 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Powertrain Management >> Glow Plug System >> Glow Plug Control Module >> Diagrams >> Glow Plug Control Module (GPCM) X1
