Fuel Level Sensor Connector

Ground Views

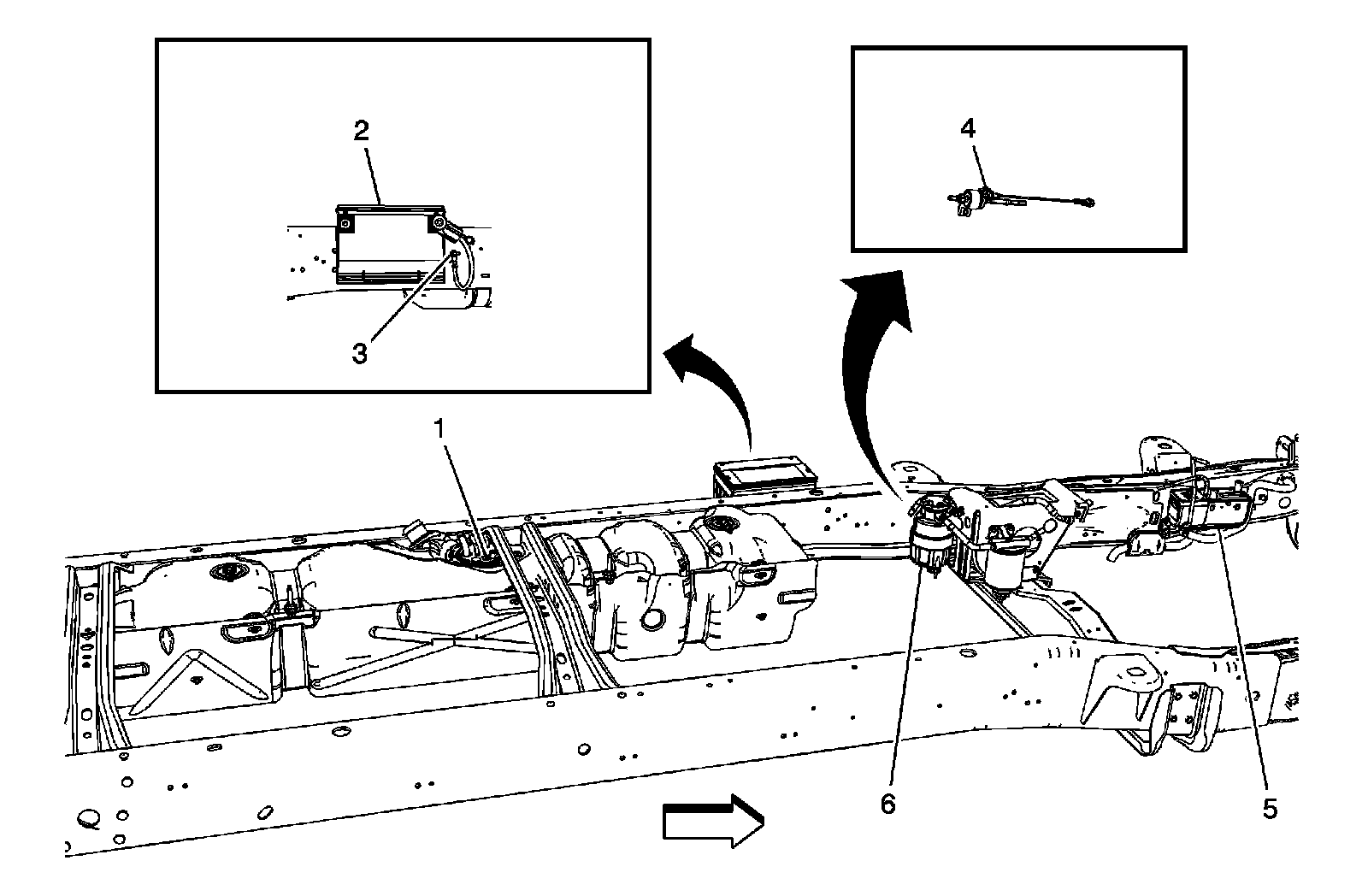

Left Side Frame (LMM or LGH)





1 - Fuel Level Sensor Connector

2 - Battery- Auxiliary

3 - G305

4 - Coolant Heater Fuel Pump (K08)

5 - Coolant Heater (K08)

6 - Fuel Pump
