Air Flow Meter/Sensor: Service and Repair

Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Removal Procedure

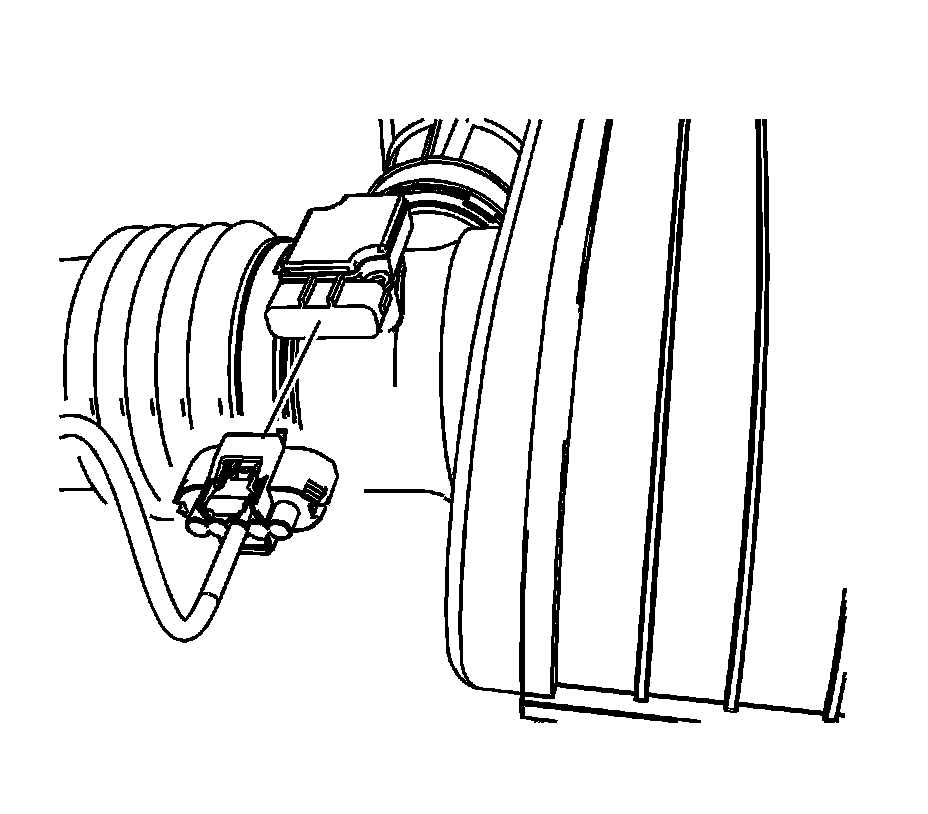

1. Disconnect the mass air flow (MAF)/intake air temperature (IAT) sensor electrical connector.

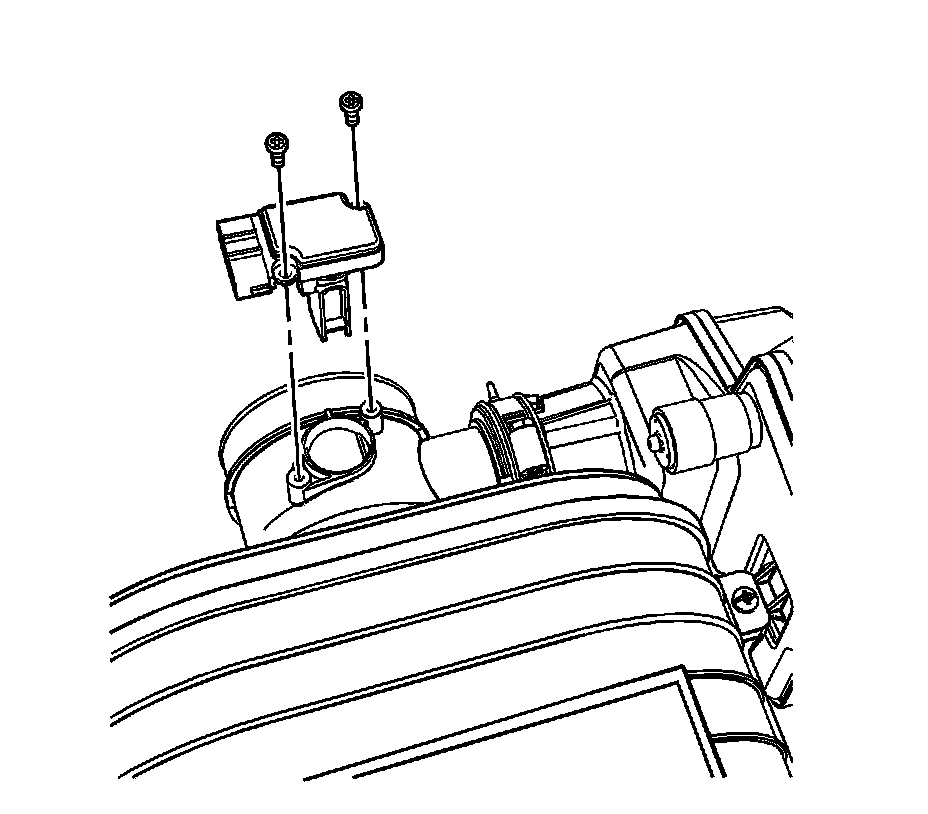

2. Remove the MAF/IAT sensor TORX(R) screws.

3. Remove the MAF/IAT sensor.

Installation Procedure





1. Install the MAF/IAT sensor.

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the MAF/IAT sensor TORX(R) screws and tighten to 8 Nm (70 lb in).





3. Connect the MAF/IAT sensor electrical connector.
