Upper Engine

Powertrain Component Views

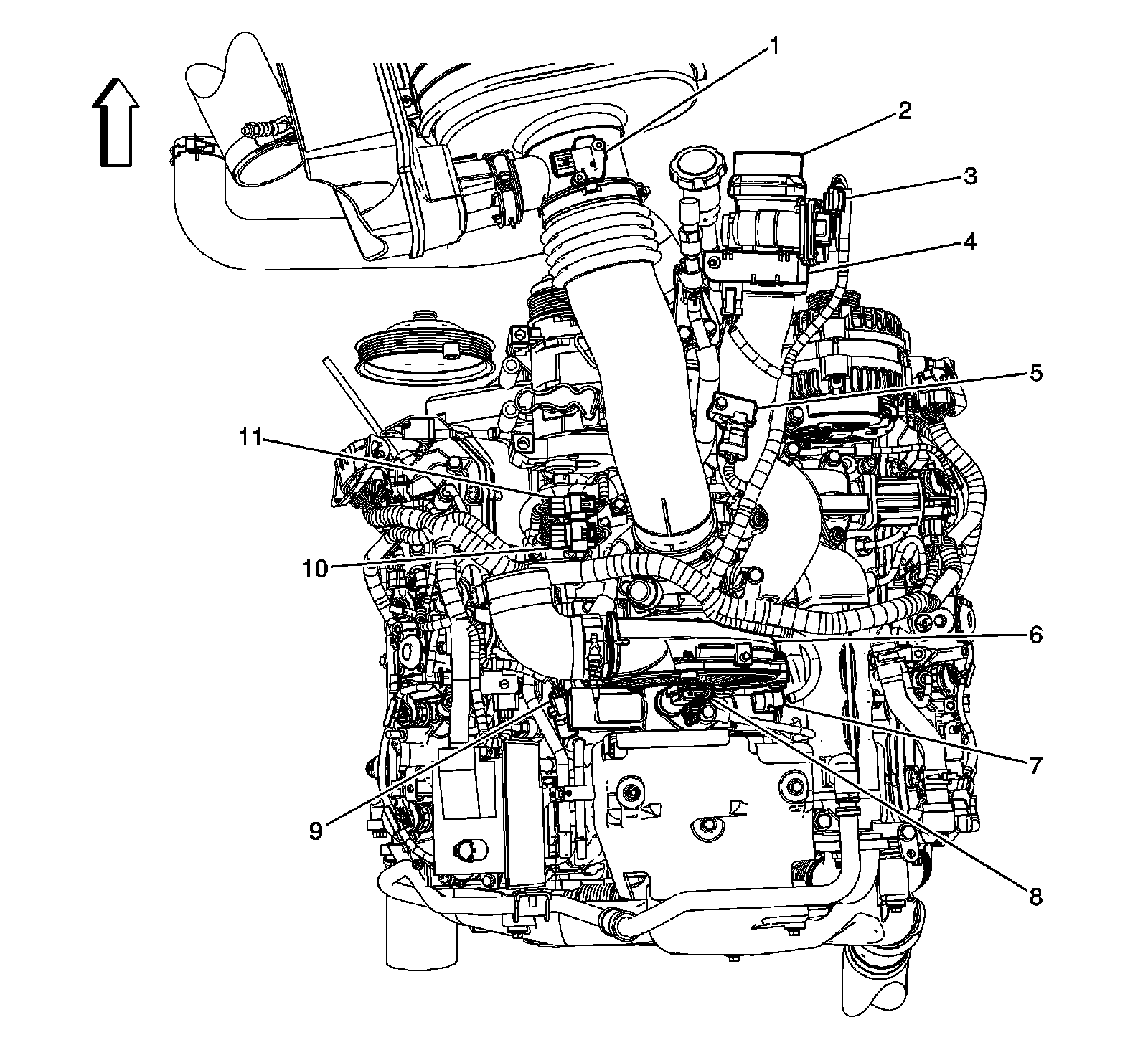

Upper Engine (LMM or LGH)





1 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

2 - Throttle Body

3 - Intake Air Valve

4 - Intake Air Heater (IAH)

5 - Manifold Absolute Pressure (MAP) Sensor

6 - Turbocharger

7 - Turbocharger Vane Position Control Solenoid Valve

8 - Turbocharger Vane Position Sensor

9 - Fuel Rail Temperature (FRT) Sensor

10 - X111

11 - X110
