Chevrolet
>>
2012
>>
Express 2500 V8-6.6L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Diesel Emissions Fluid Control Module
Diesel Emissions Fluid Control Module

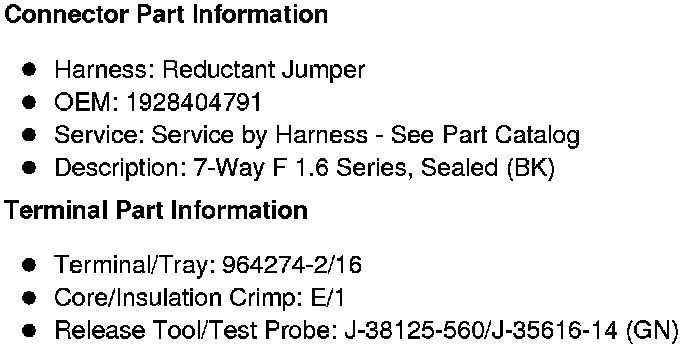

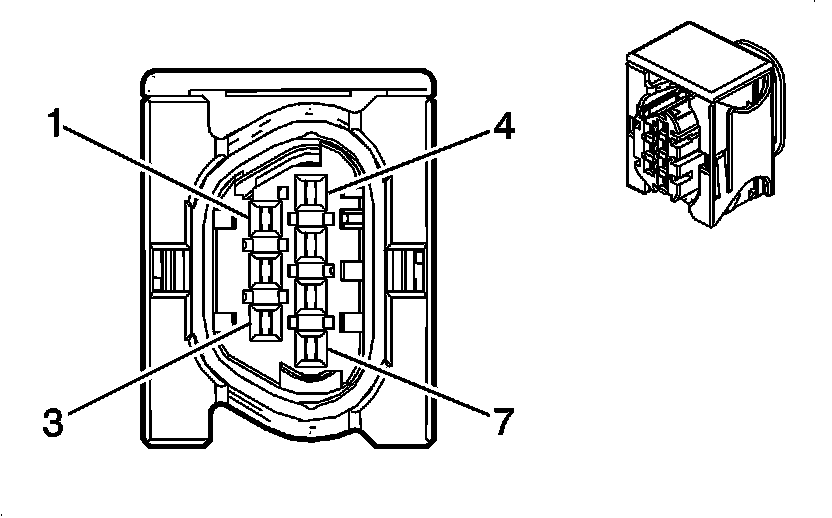

Component Connector End Views

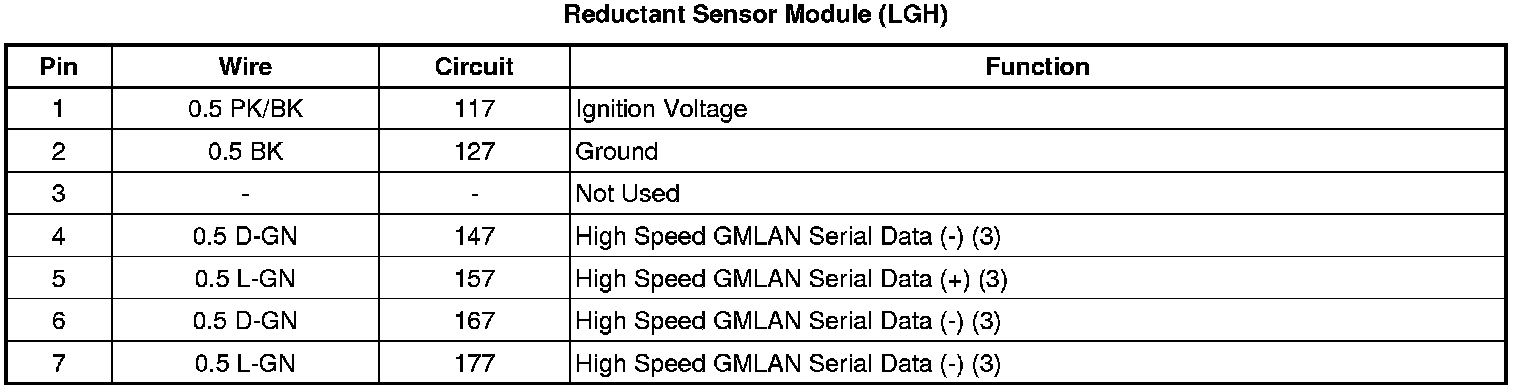

Reductant Sensor Module (LGH)
