Oil Pressure Sensor: Diagrams

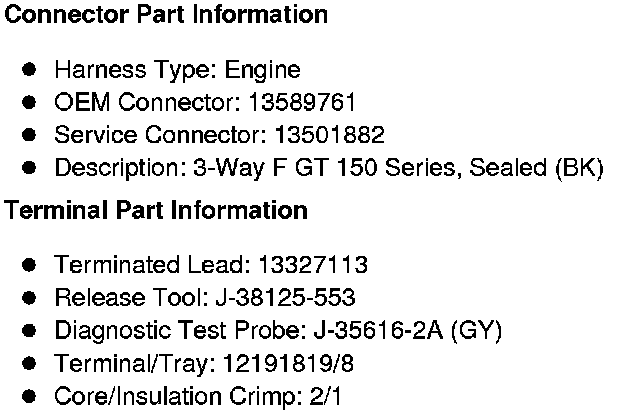

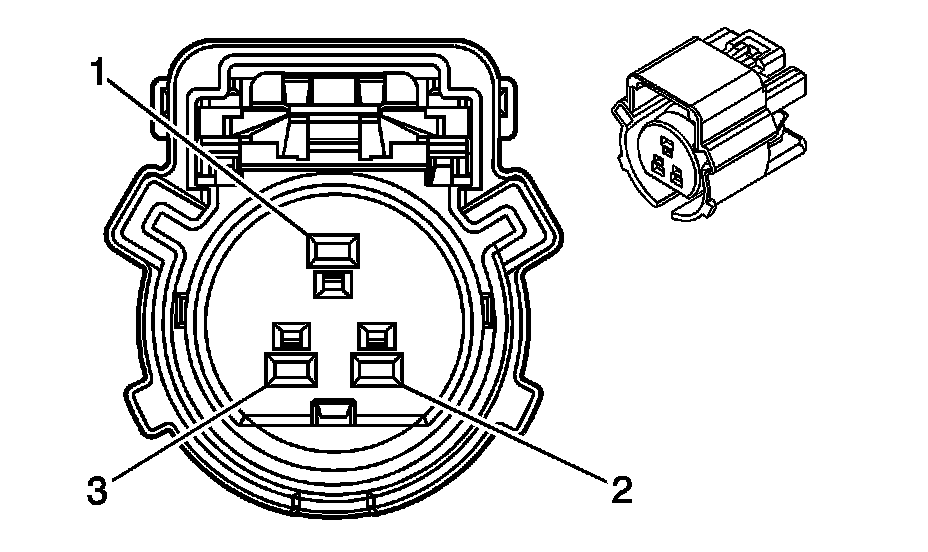

Component Connector End Views

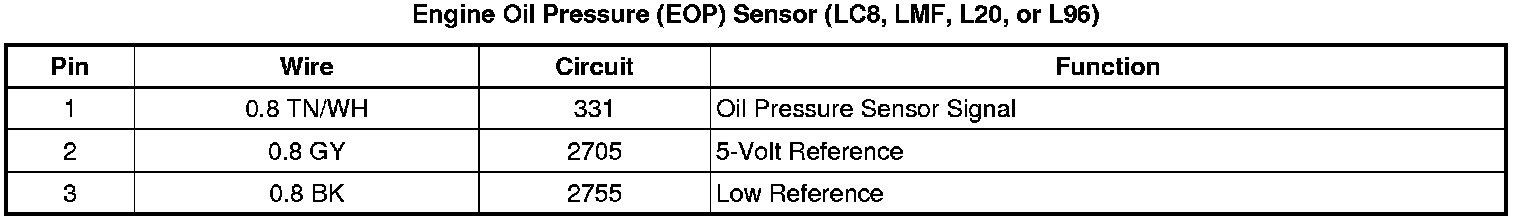

Engine Oil Pressure (EOP) Sensor (LC8, LMF, L20, or L96)
