Crankshaft Position Sensor: Diagrams

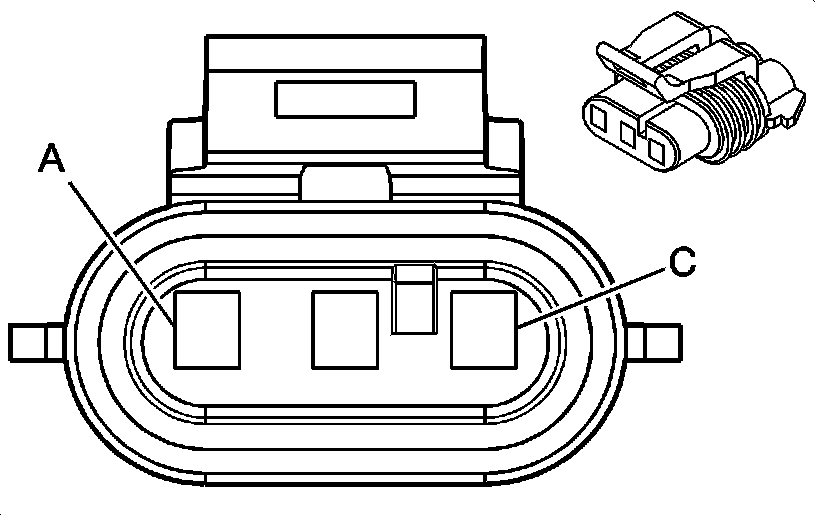

Component Connector End Views

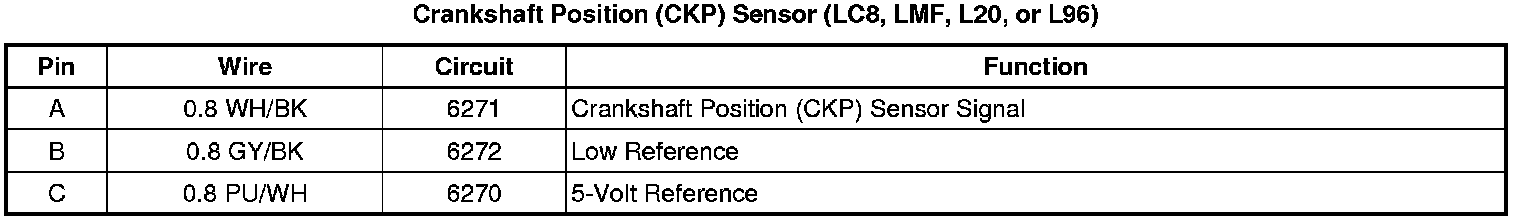

Crankshaft Position (CKP) Sensor (LC8, LMF, L20, or L96)
