Home >> Chevrolet >> 2012 >> Express 2500 V8-4.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Diagrams

Air Flow Meter/Sensor: Diagrams

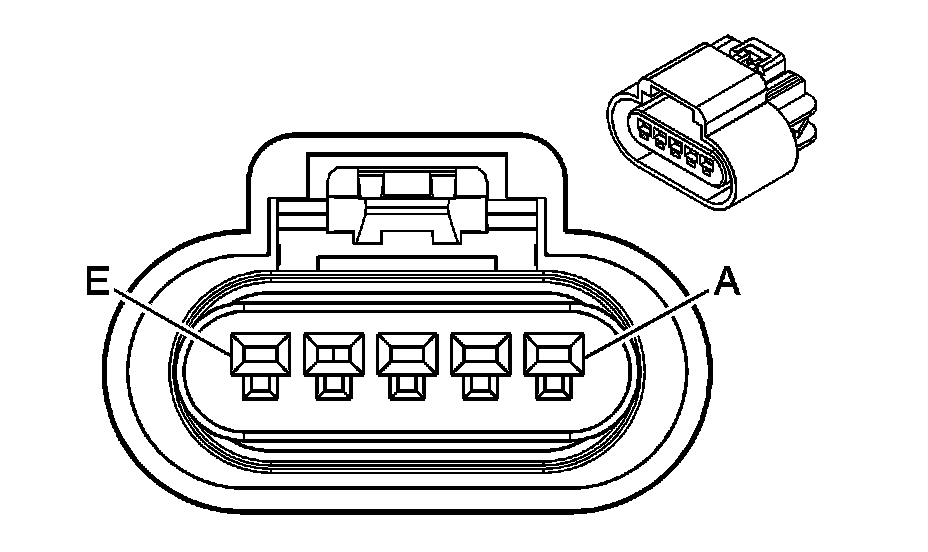

Component Connector End Views

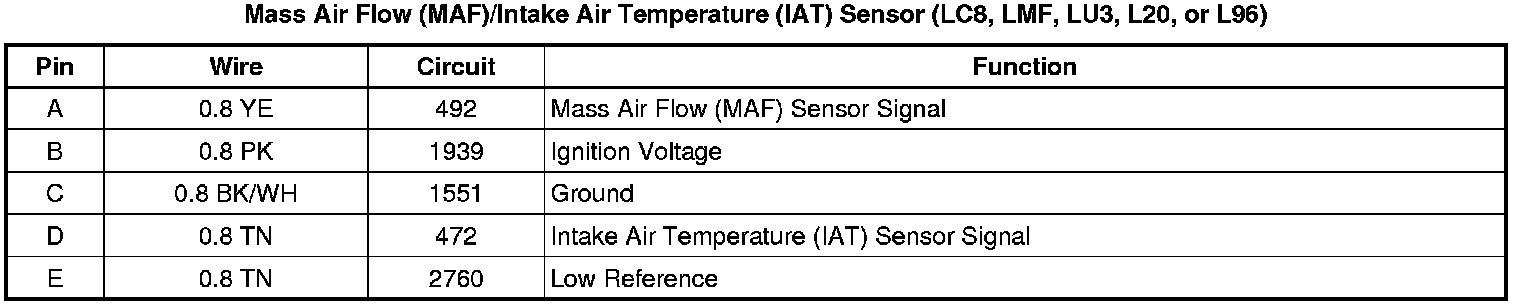

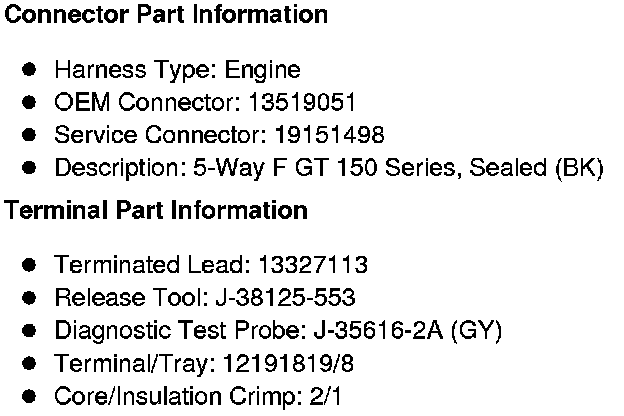

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LC8, LMF, LU3, L20, or L96)
