Engine Control Module (ECM) X2
Engine Control Module (ECM) X2
Component Connector End Views

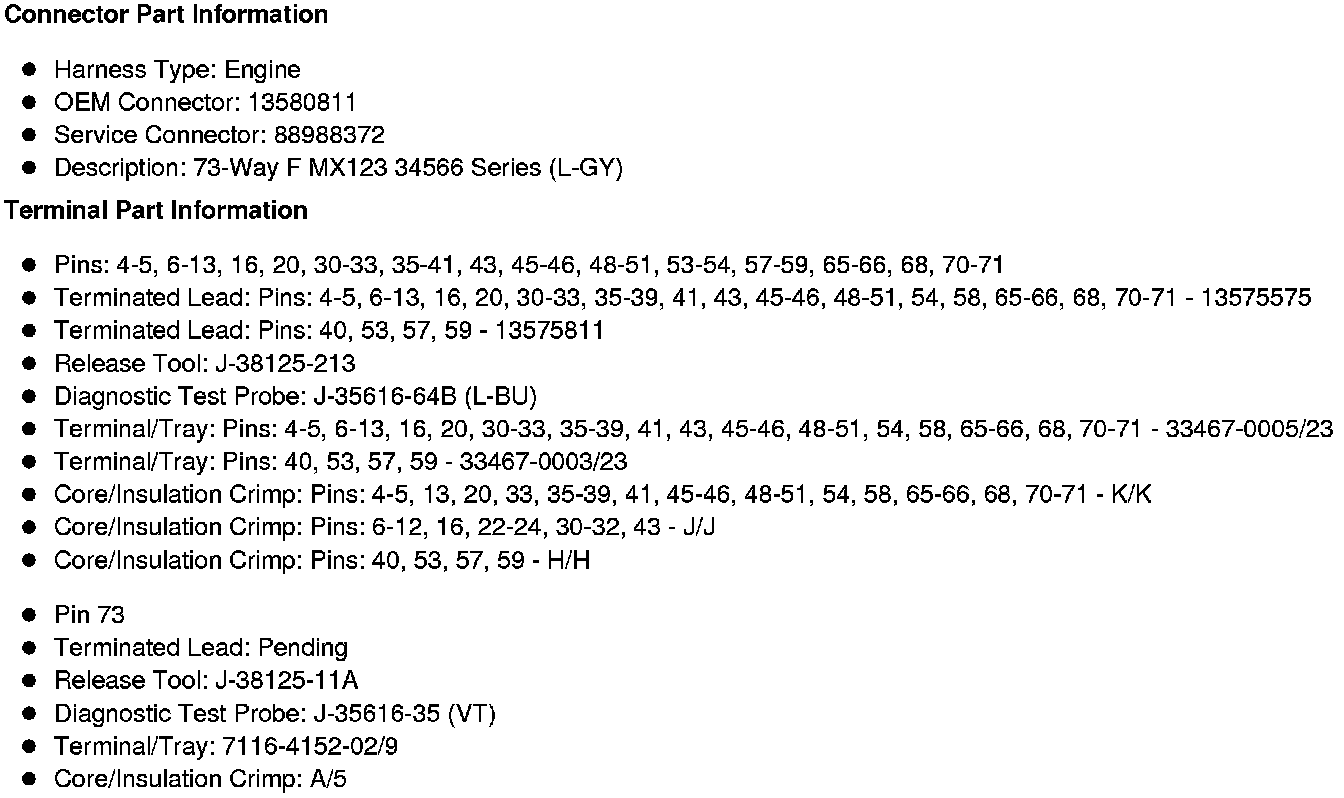

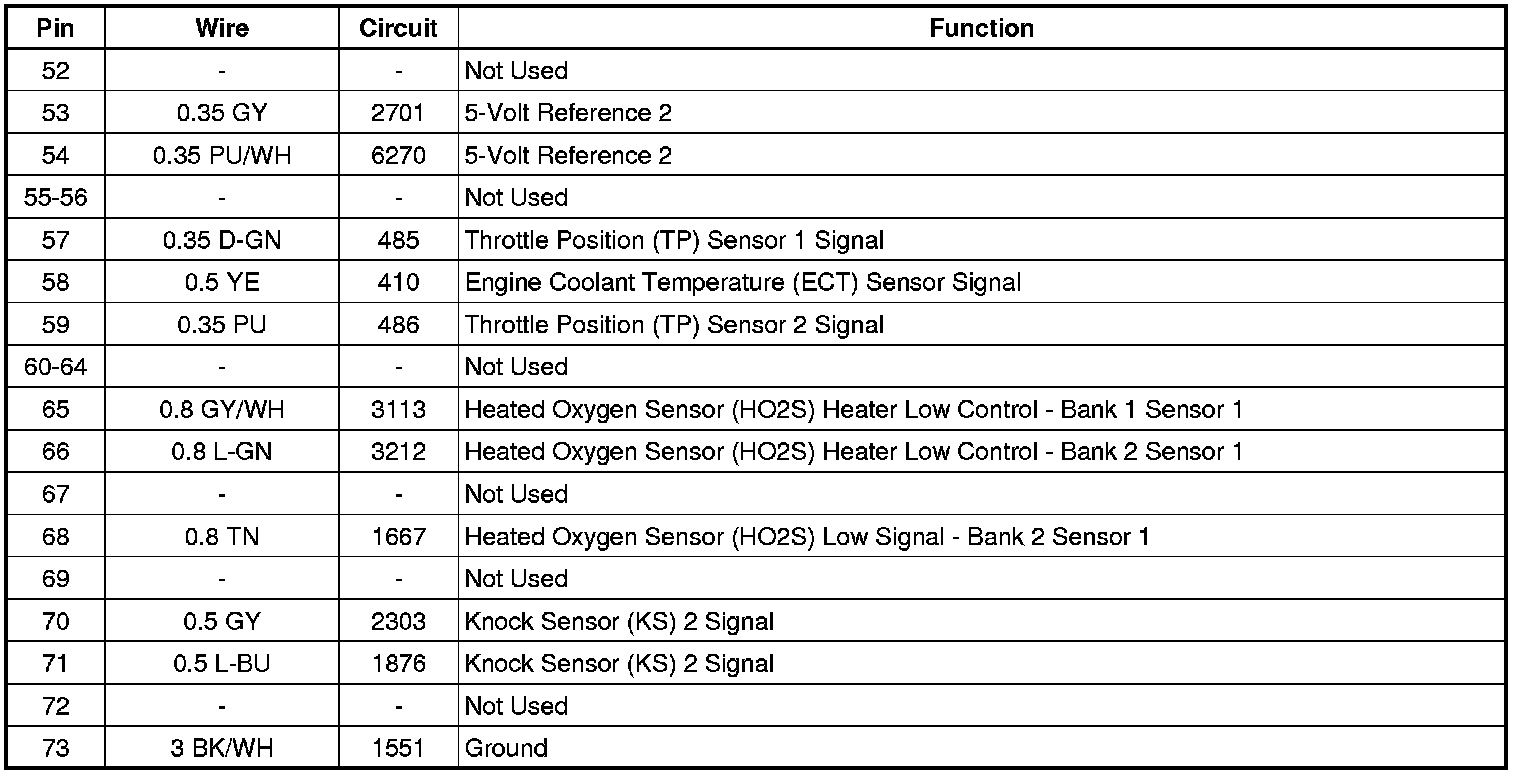

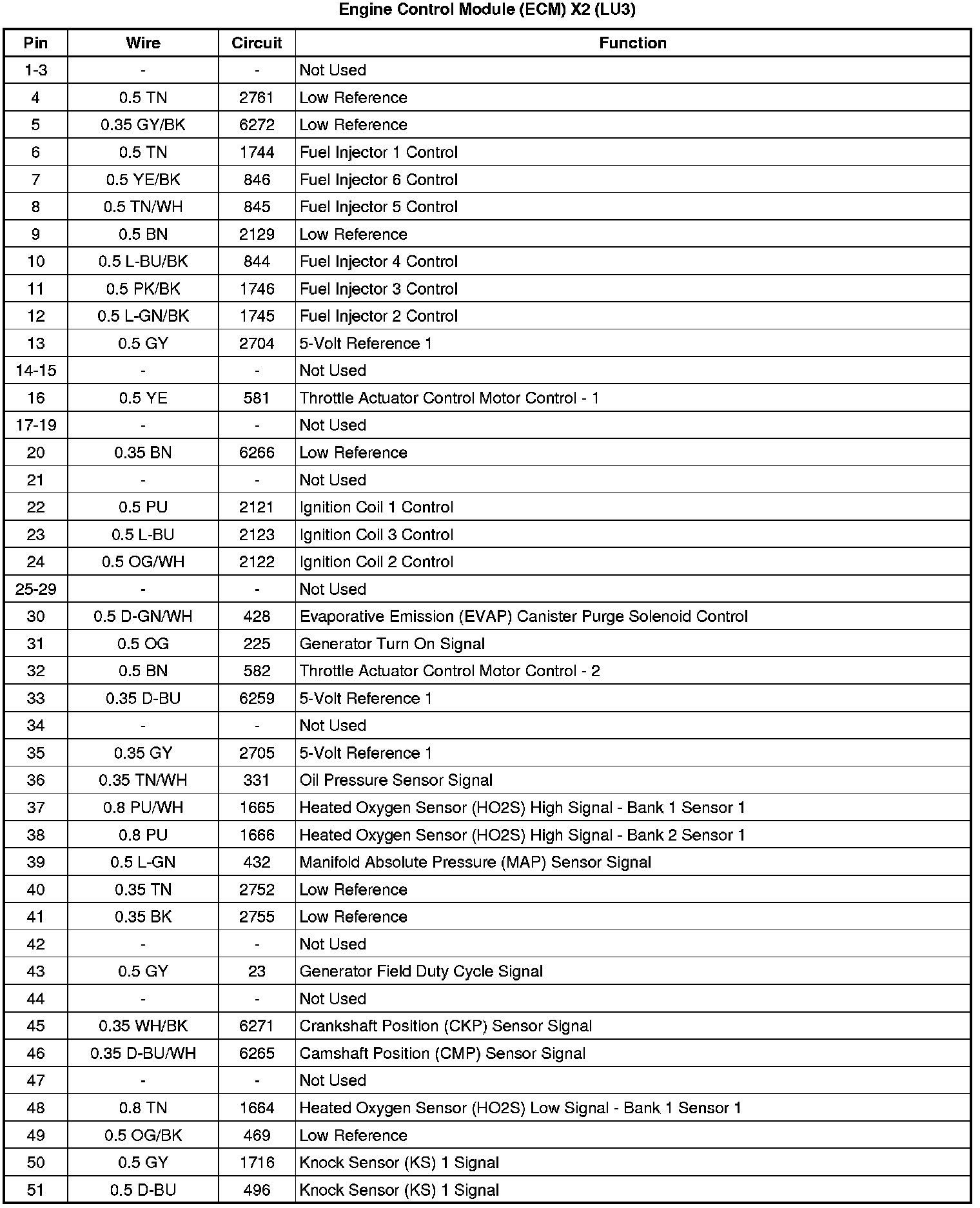

Engine Control Module (ECM) X2 (LU3)
