Engine Control Module (ECM) X
Engine Control Module (ECM) X

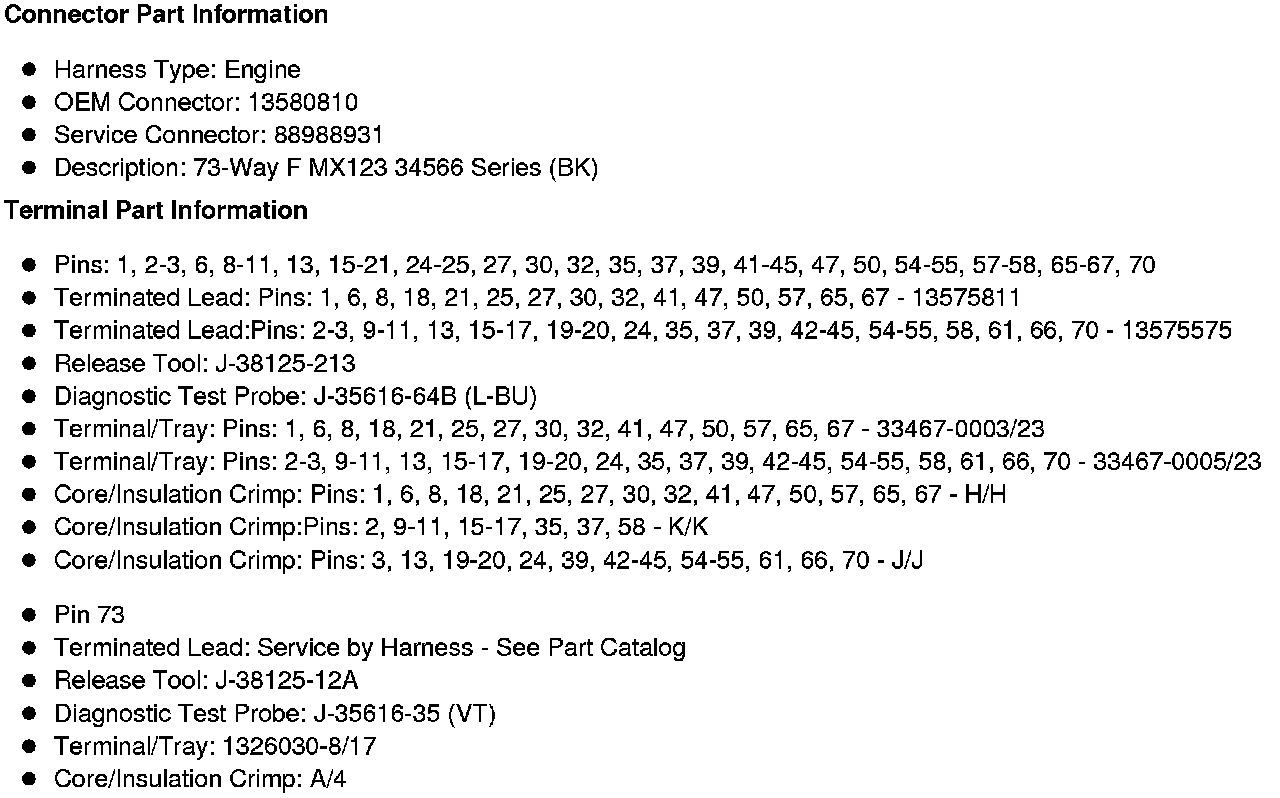

Component Connector End Views

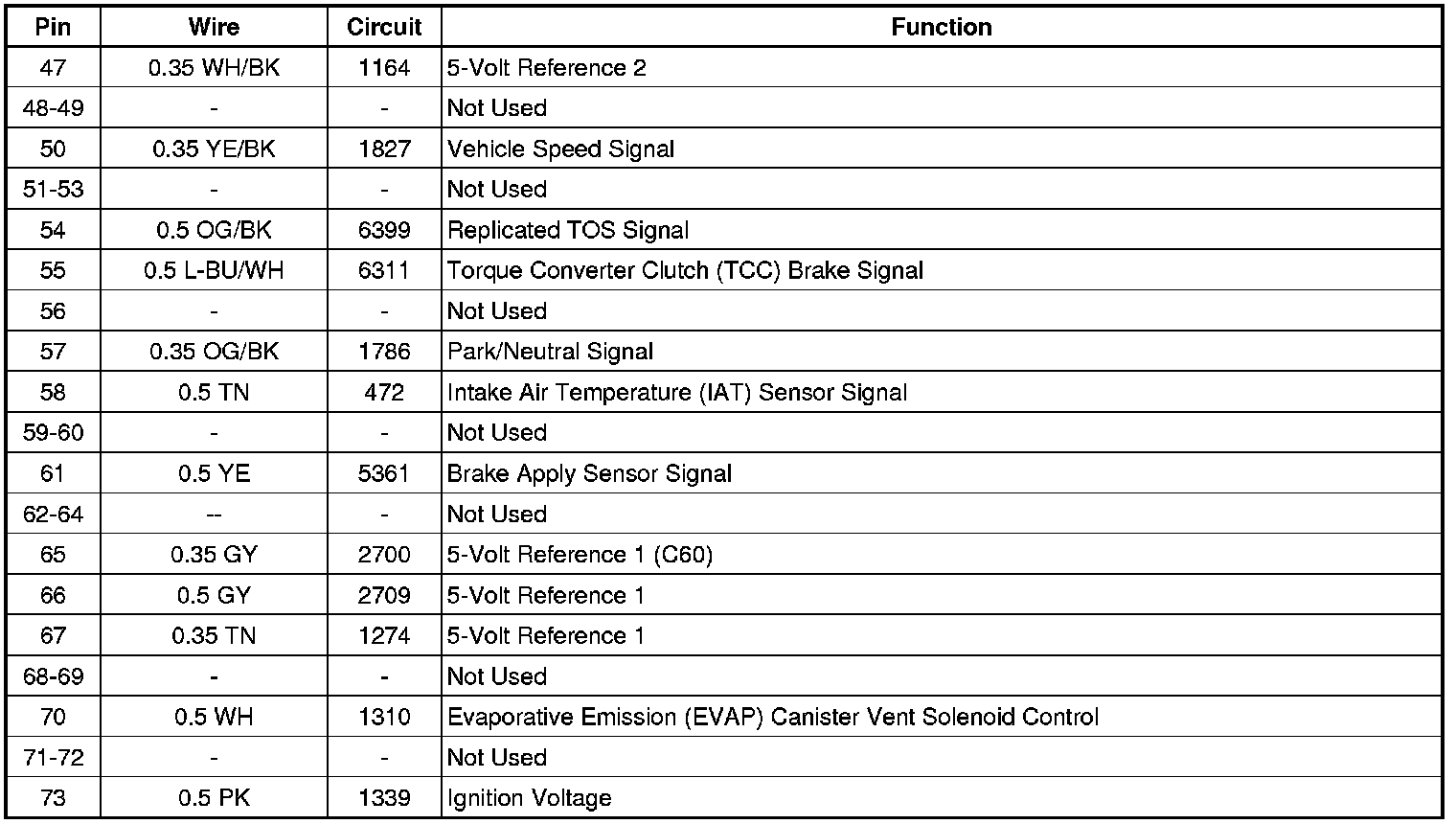

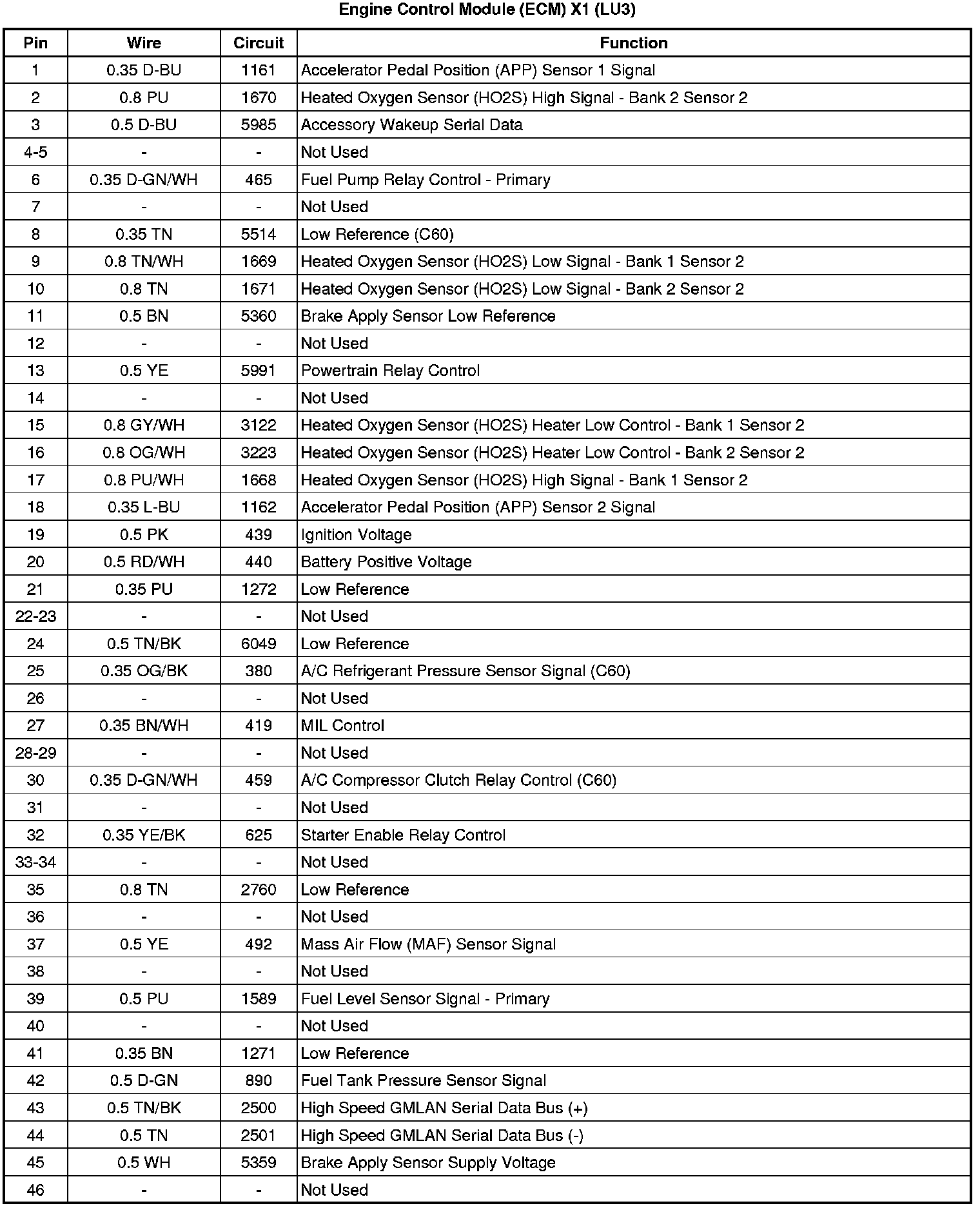

Engine Control Module (ECM) X1 (LU3)
