Flywheel

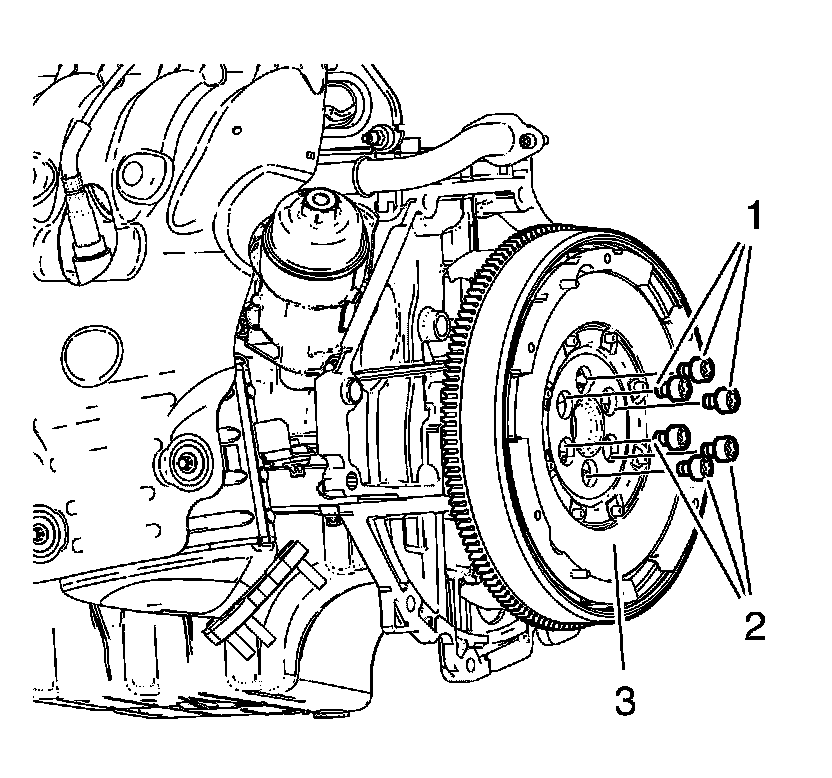

Flywheel bolts (1, 2) and tighten the bolts in 3 passes using the EN-45059 - sensor kit :
First pass to 35 Nm (26 lb ft)
Second pass to additional 30°
Third pass to an additional 15°
