Timing Cover

Engine Front Cover (Oil Pump Housing) 20 Nm (15 lb ft)

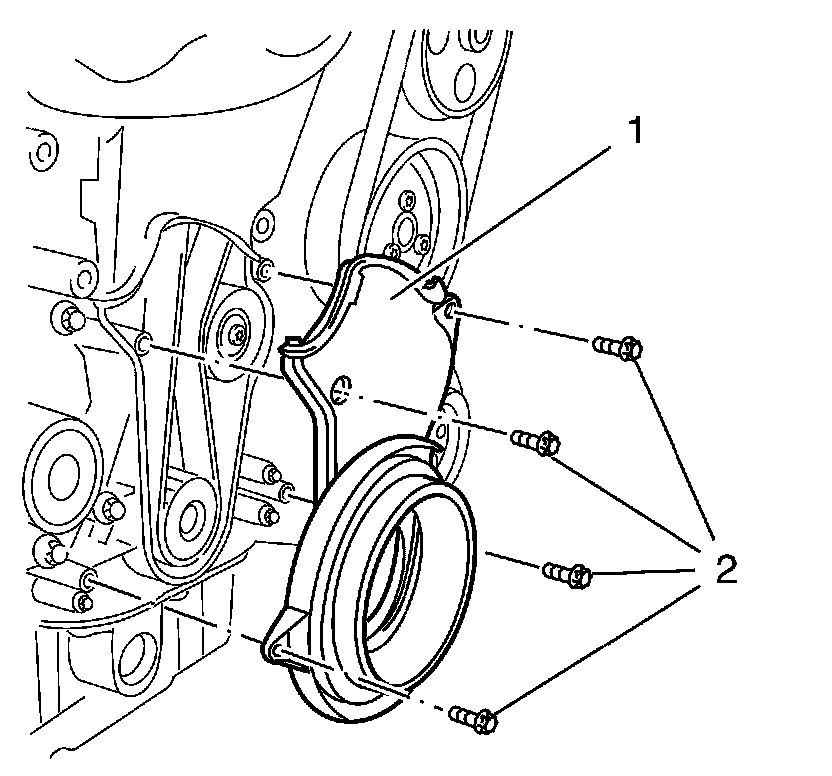

Timing Belt Lower Front Cover Bolt 6 Nm (53 lb in)

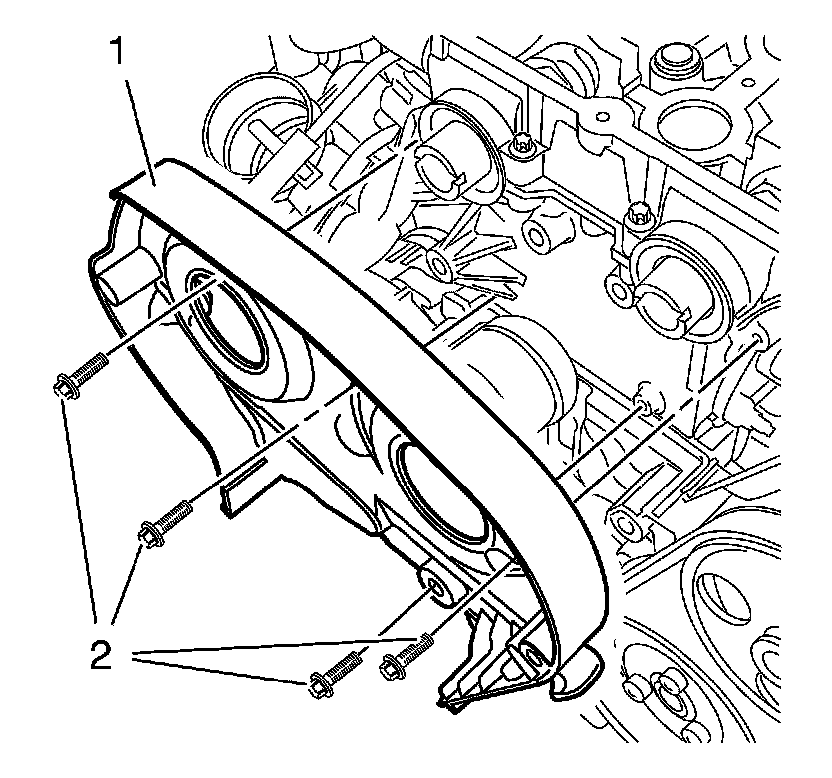

Timing Belt Rear Cover Bolt 6 Nm (3) (53 lb in (3))

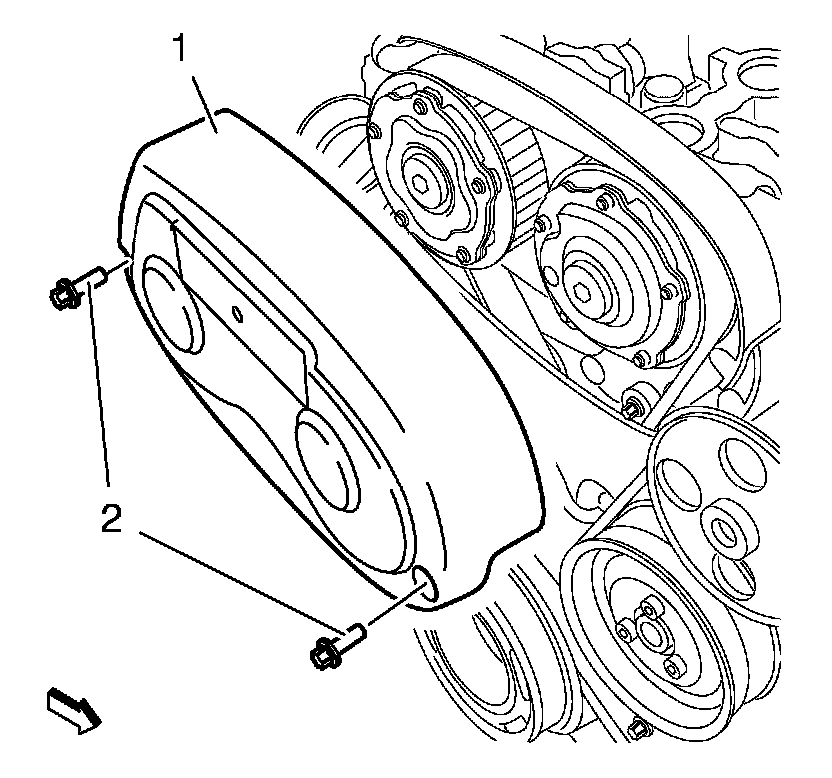

Timing Belt Upper Front Cover Bolt 6 Nm (53 lb in)
