Fuse Block - Instrument Panel




Electrical Center Identification Views

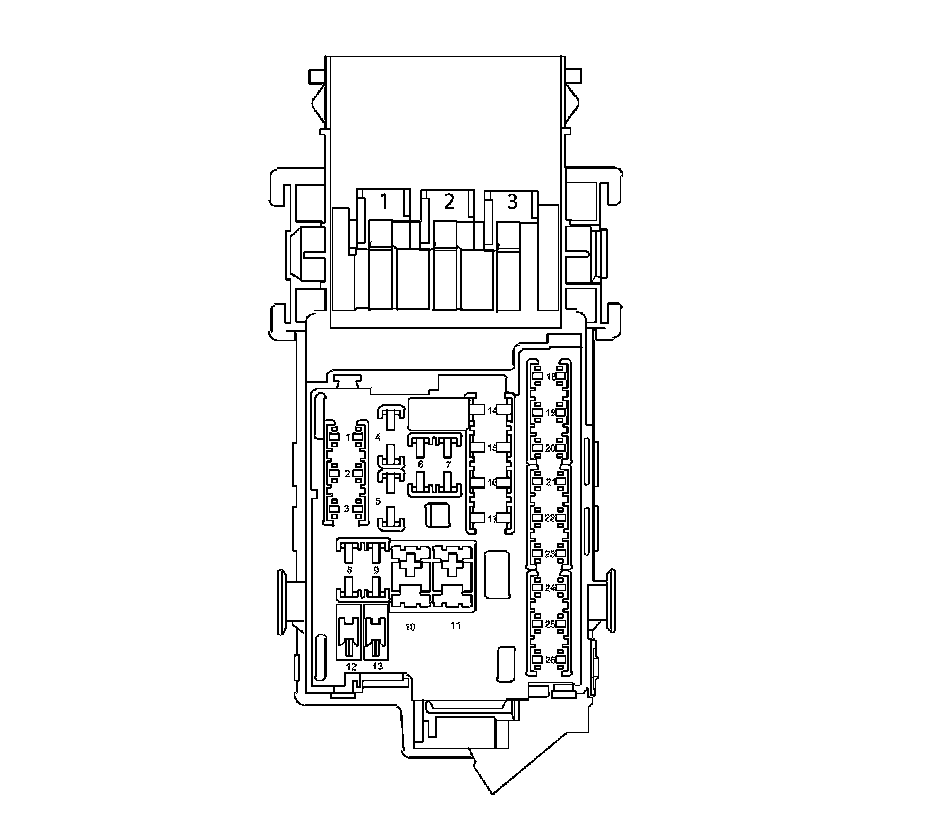

X51A Fuse Block - Instrument Panel Label
