Front of Engine Compartment Components

Front of Vehicle/Engine Compartment Component Views

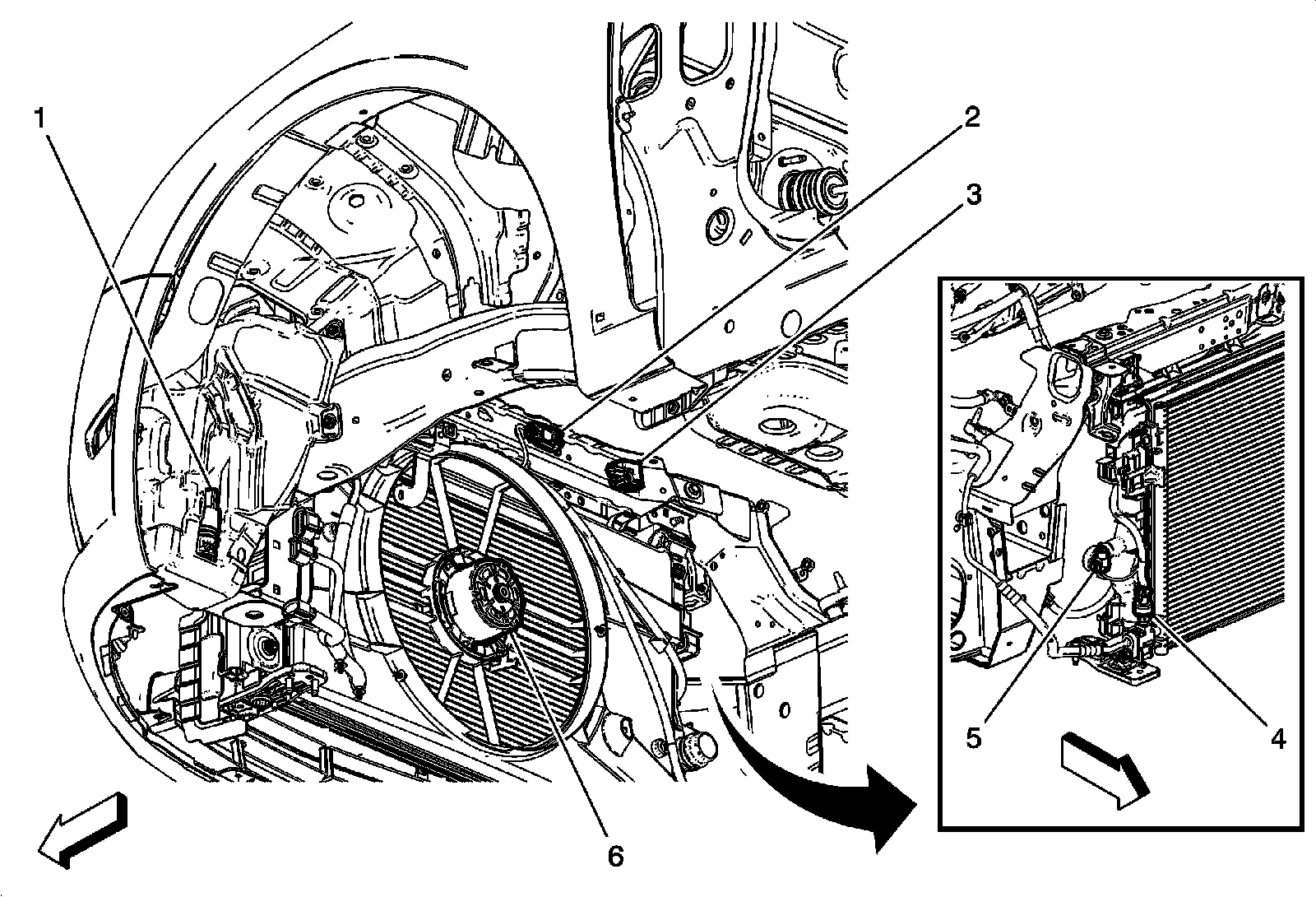

Front of Engine Compartment Components




1 - G24 Windshield Washer Pump
2 - B55 Hood Ajar Switch
3 - B59R Front Impact Sensor - Right
4 - B1 A/C Refrigerant Pressure Sensor
5 - B34B Engine Coolant Temperature Sensor 2
6 - G10 Cooling Fan Motor
