Blower Motor Control Module

Instrument Panel/Center Console Component Views

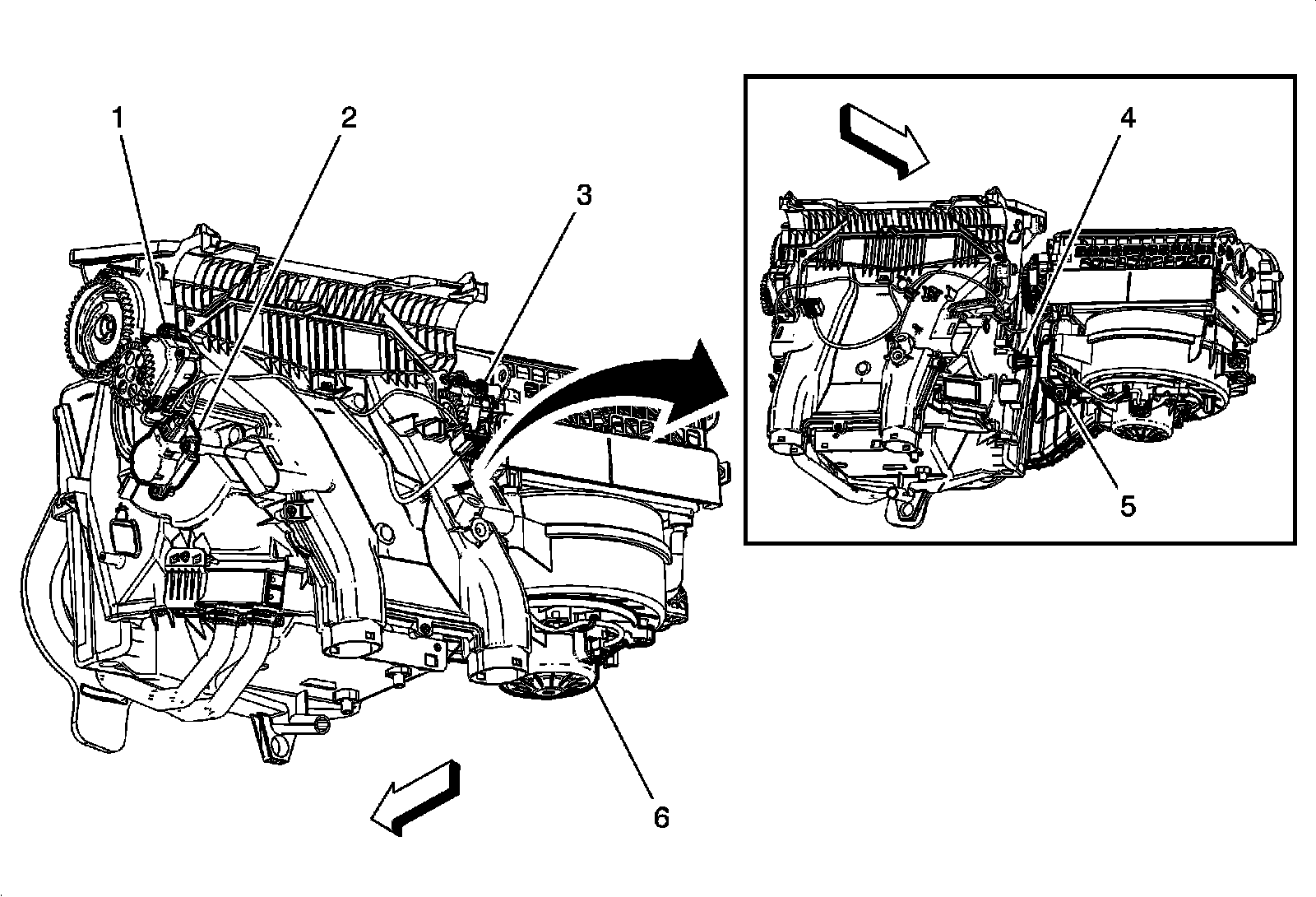

Interior HVAC Components




1 - M37 Mode Door Actuator
2 - M6 Air Temperature Door Actuator
3 - M46 Air Recirculation Door Actuator
4 - B7A Inside Air Temperature Sensor (C68)
5 - K8 Blower Motor Control Module
6 - M8 Blower Motor
