Steering Column Control Module

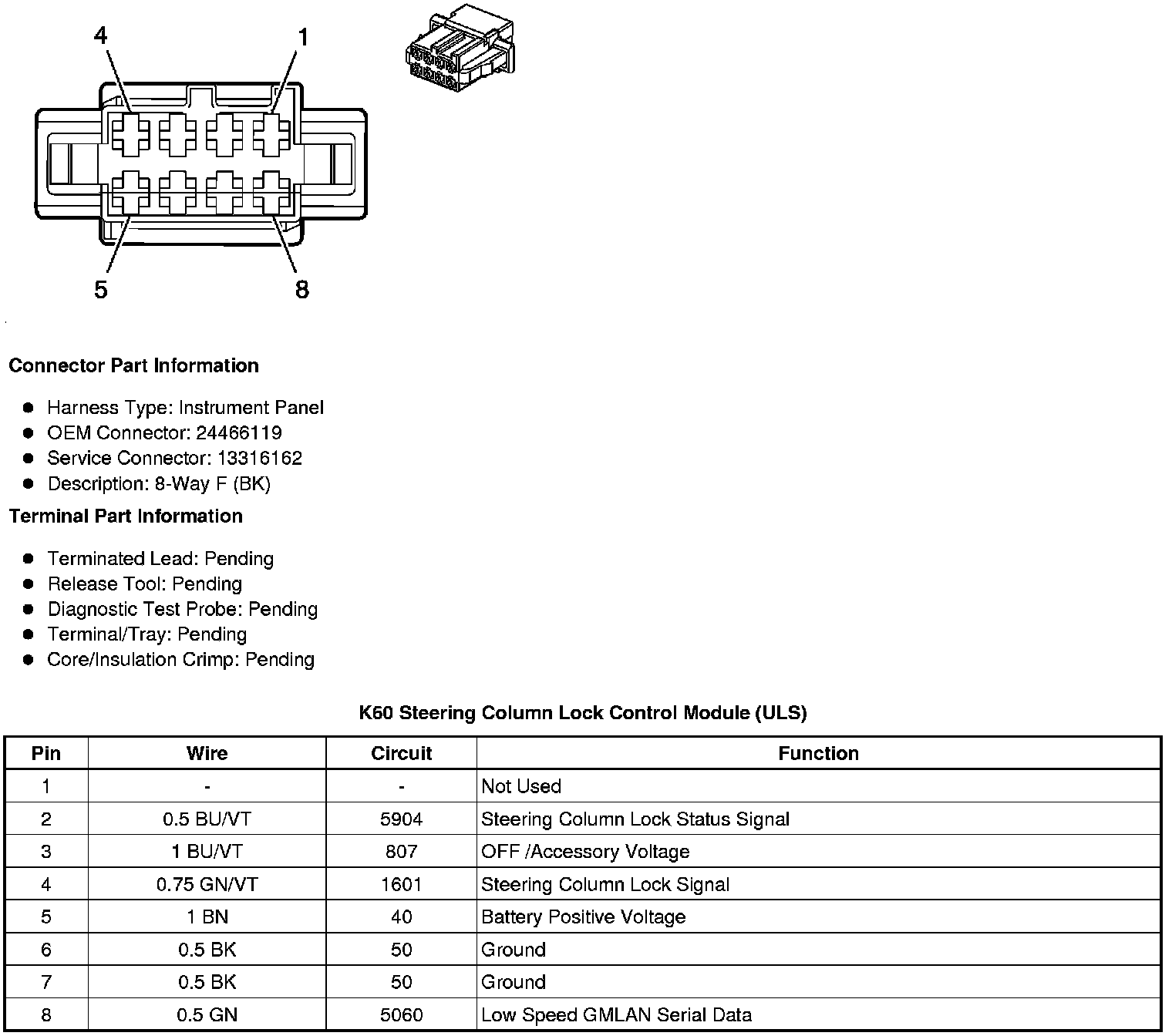

Component Connector End Views

K60 Steering Column Lock Control Module (ULS)
