lemon-mirror
:
Home
>>
Chevrolet
>>
2012
>>
Cruze L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment System Control Module
Entertainment System Control Module
Component Connector End Views

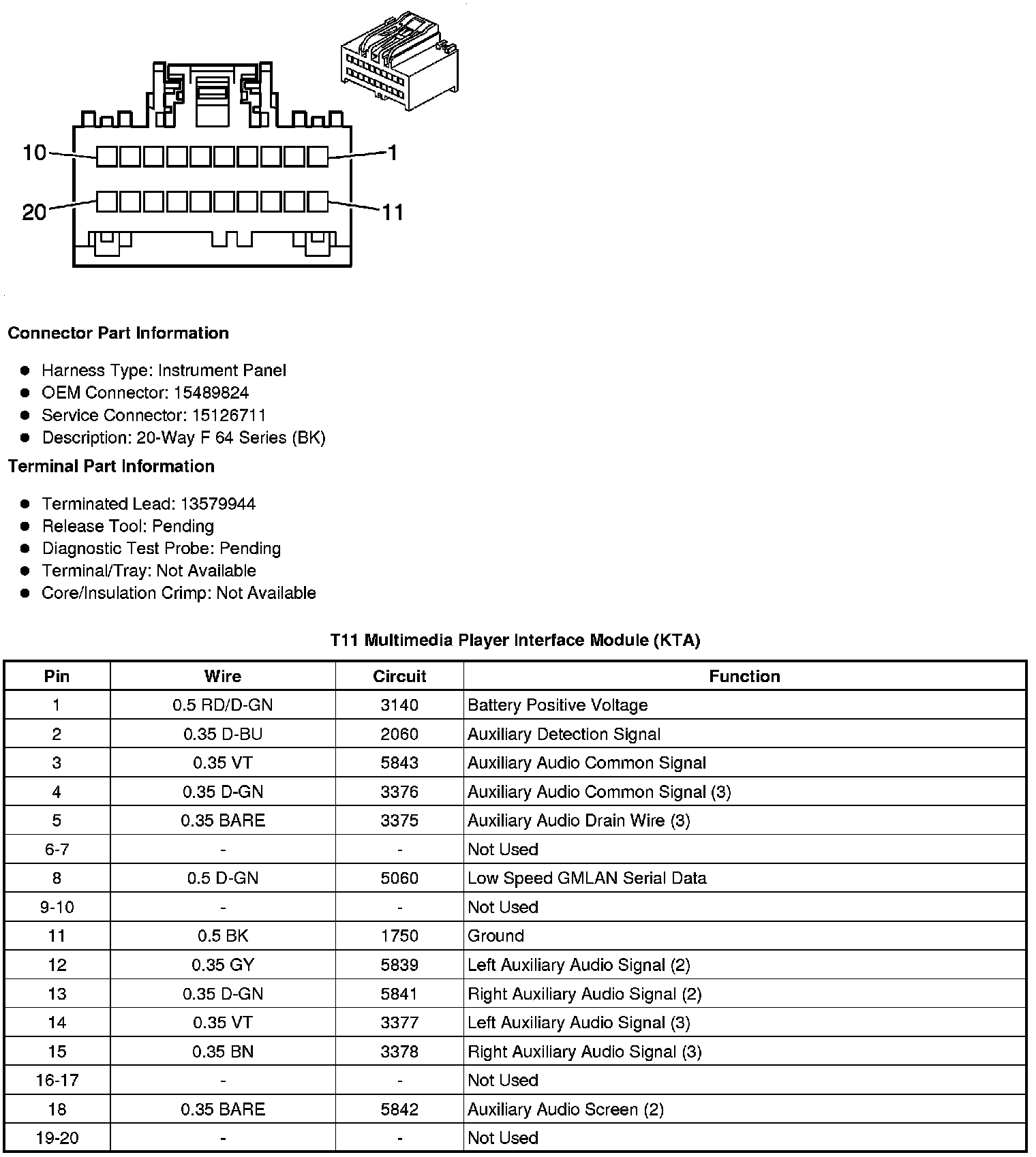

T11 Multimedia Player Interface Module (KTA)
