Compressor Control Valve Assembly
Compressor Control Valve Assembly

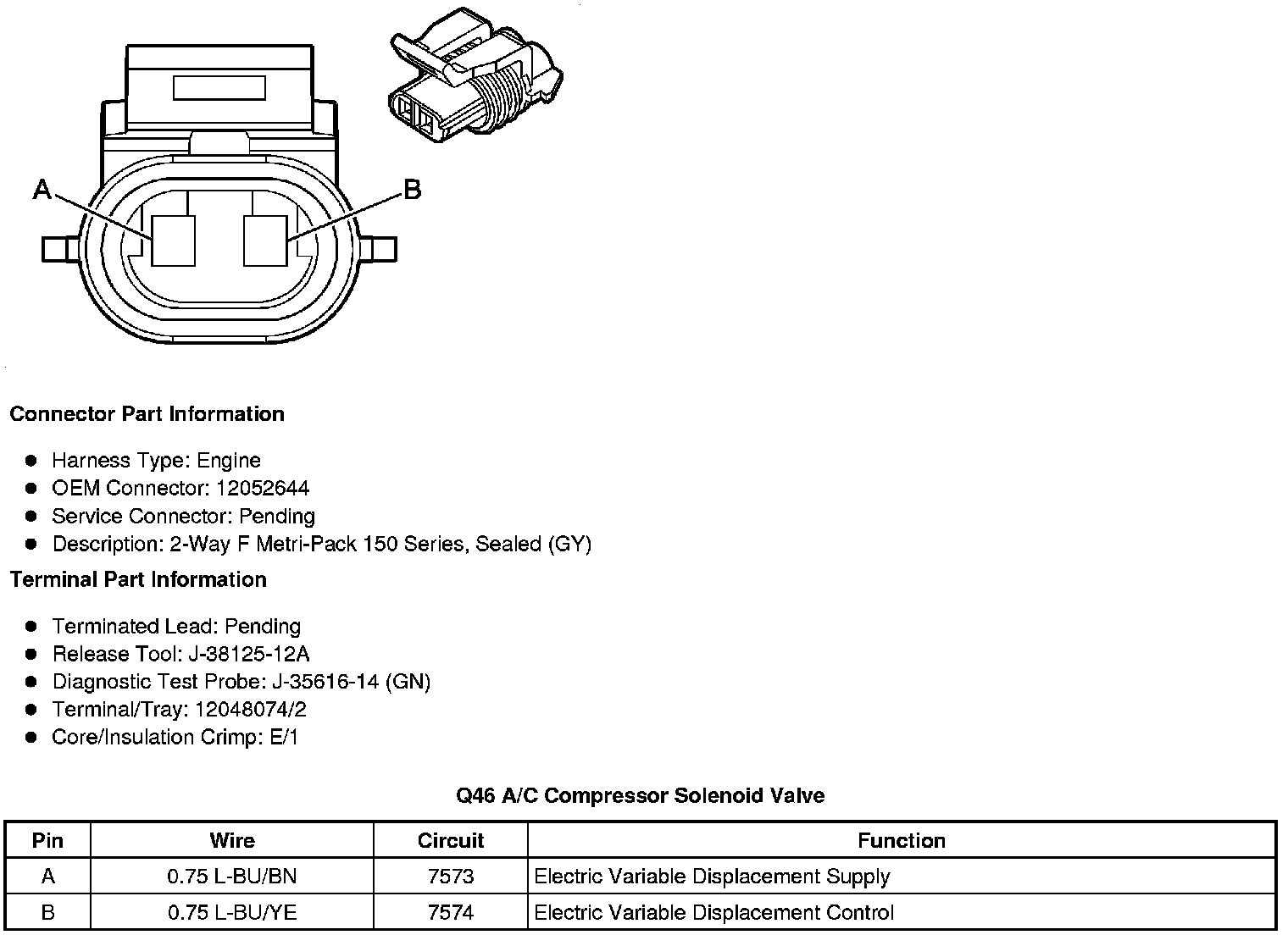

Component Connector End Views
Q46 A/C Compressor Solenoid Valve
