Telematics Communication Interface Control Module X2 (UE1)
Telematics Communication Interface Control Module X2 (UE1)

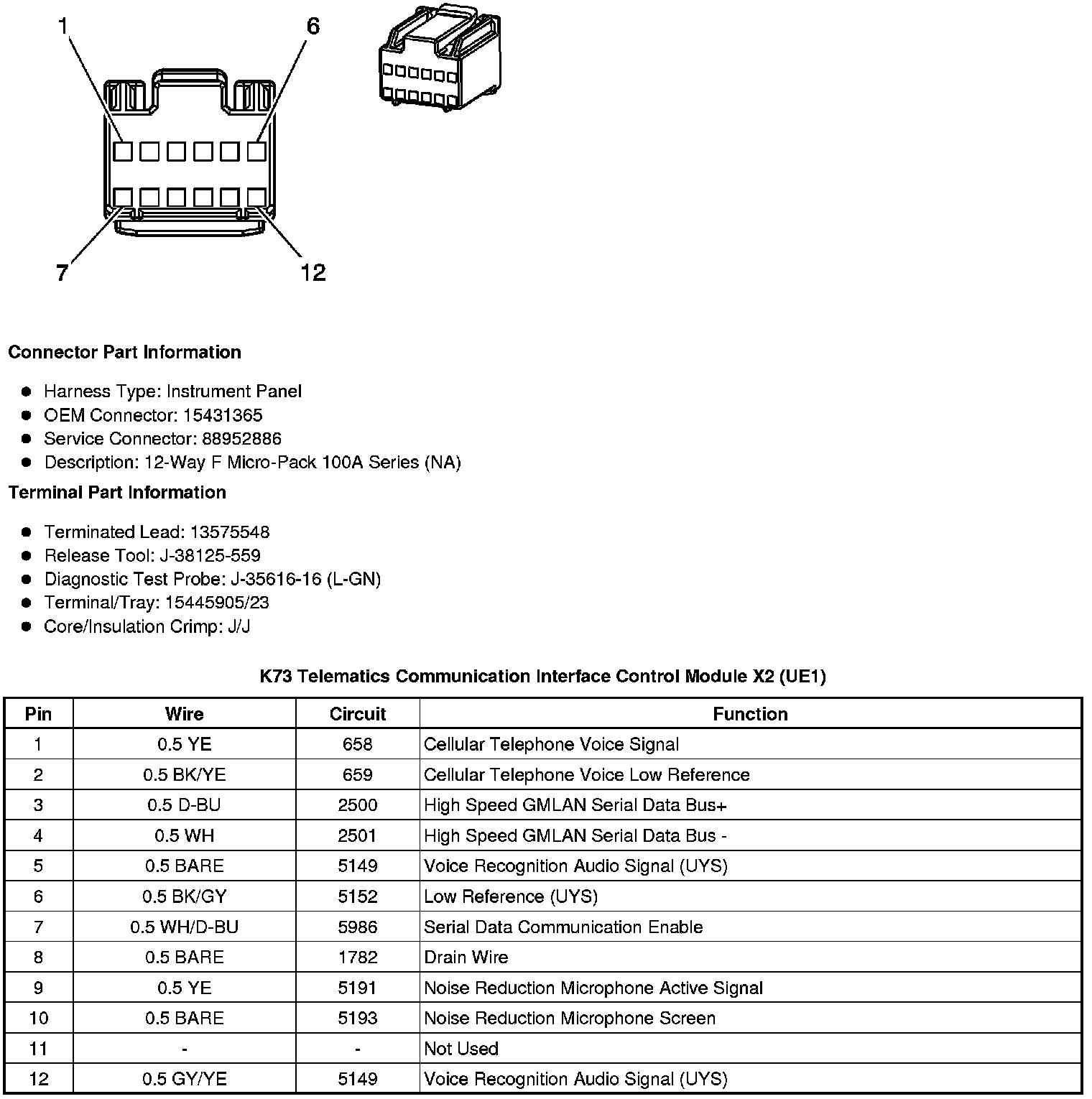

Component Connector End Views
K73 Telematics Communication Interface
Control Module
X2 (UE1)
