Brake Fluid Level Sensor/Switch

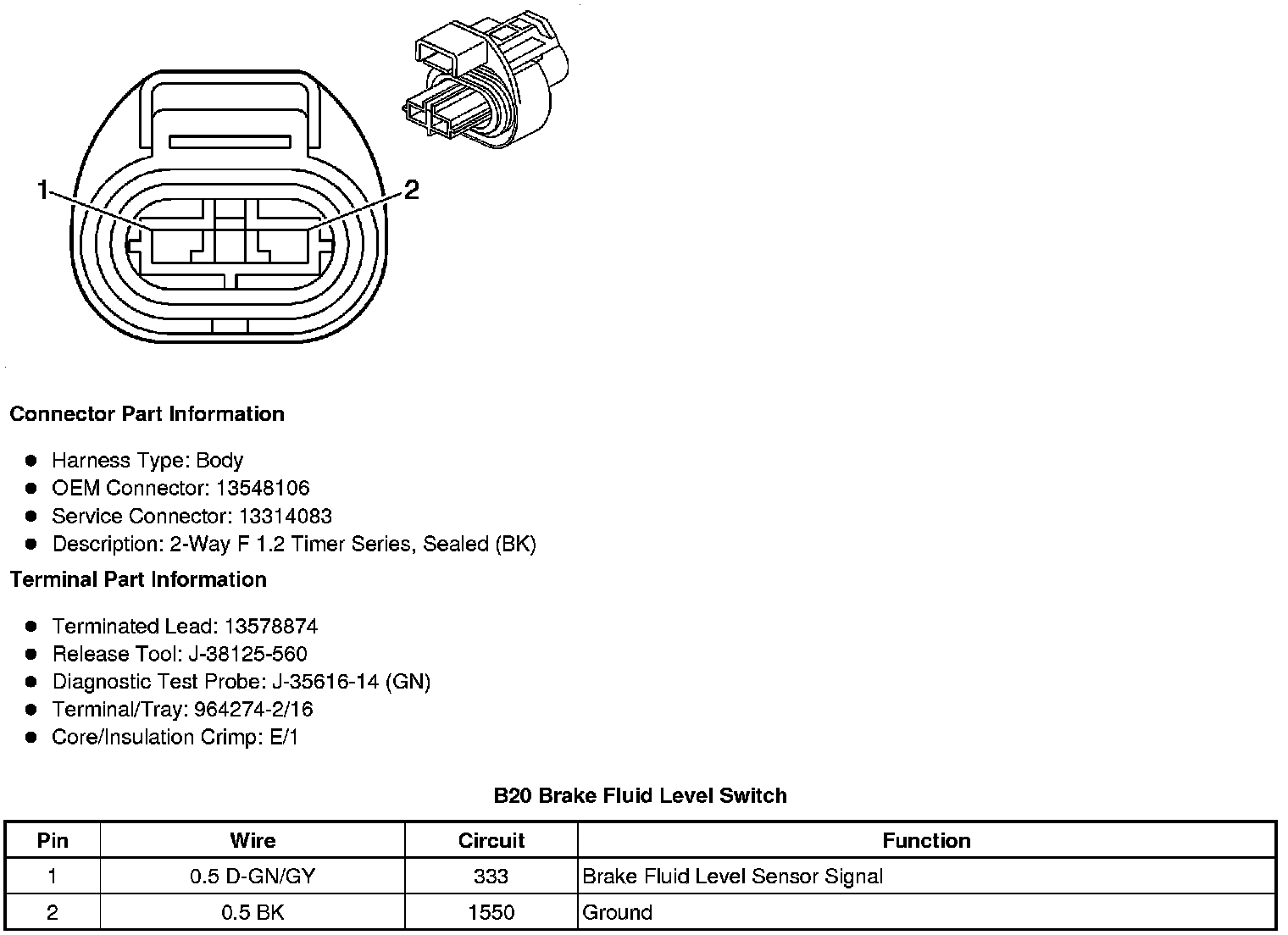

Brake Fluid Level Sensor/Switch
Component Connector End Views
B20 Brake Fluid Level Switch
