Home >> Chevrolet >> 2012 >> Cruze L4-1.8L >> Repair and Diagnosis >> Body and Frame >> Locations

Body and Frame: Locations



Structure Identification

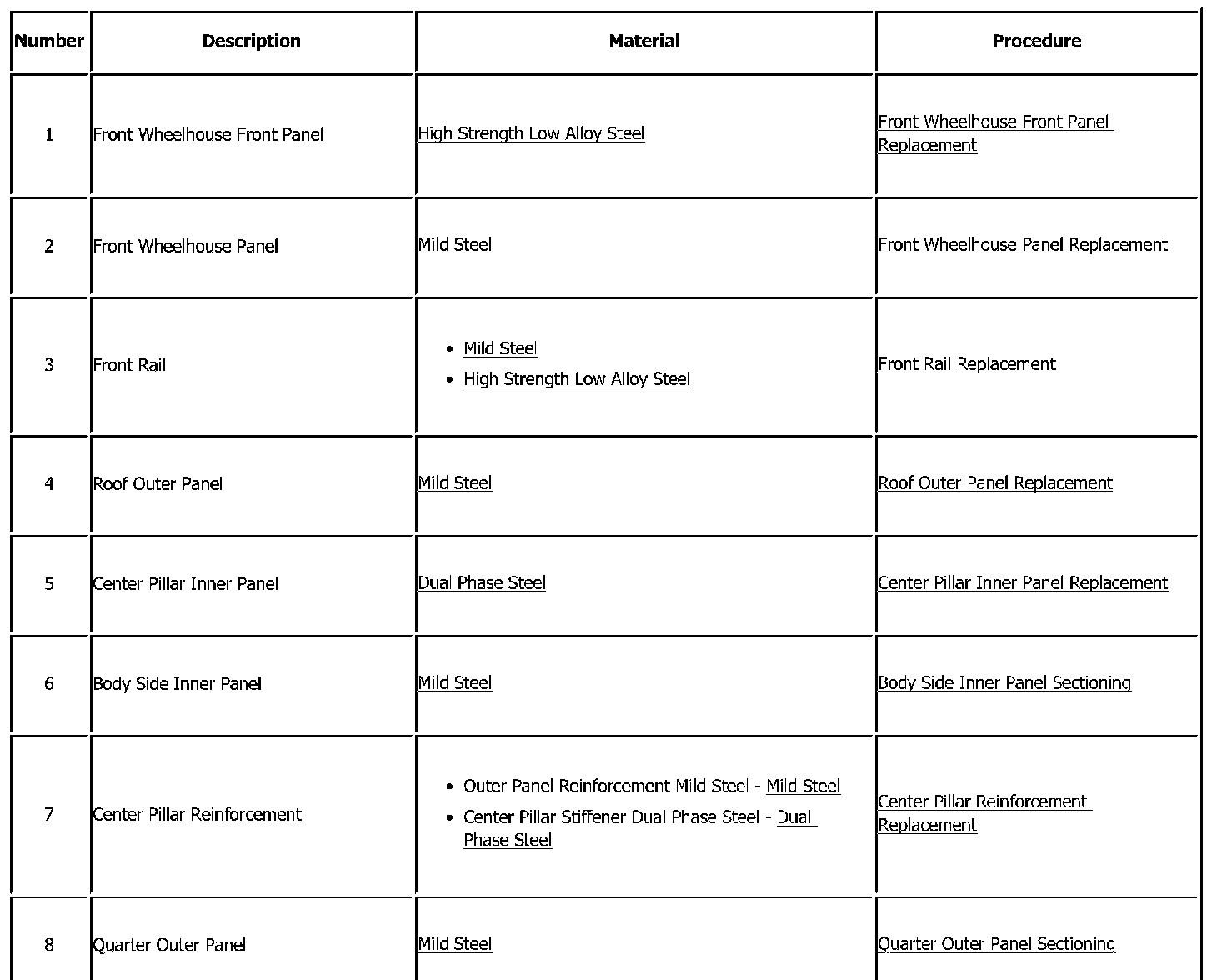

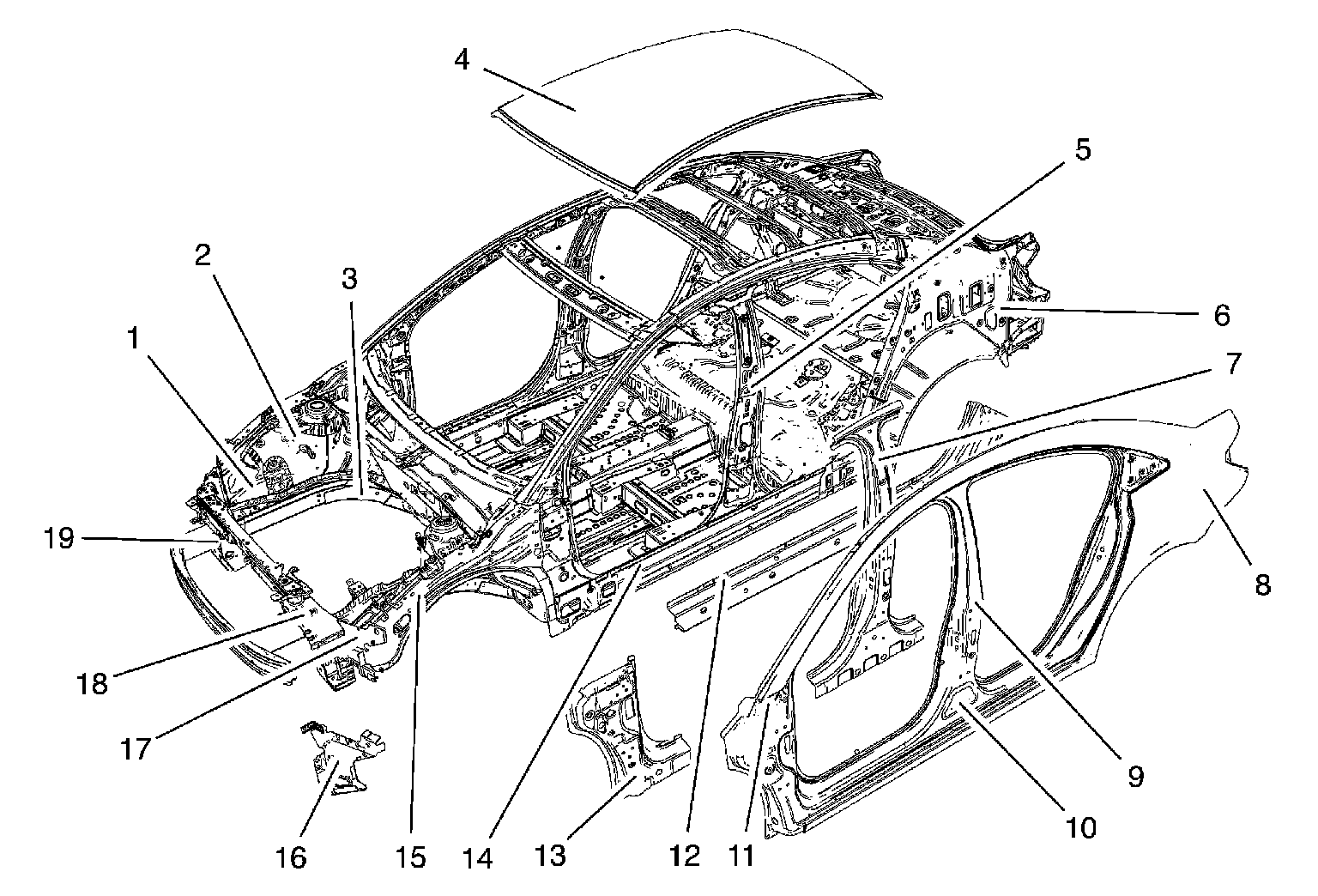

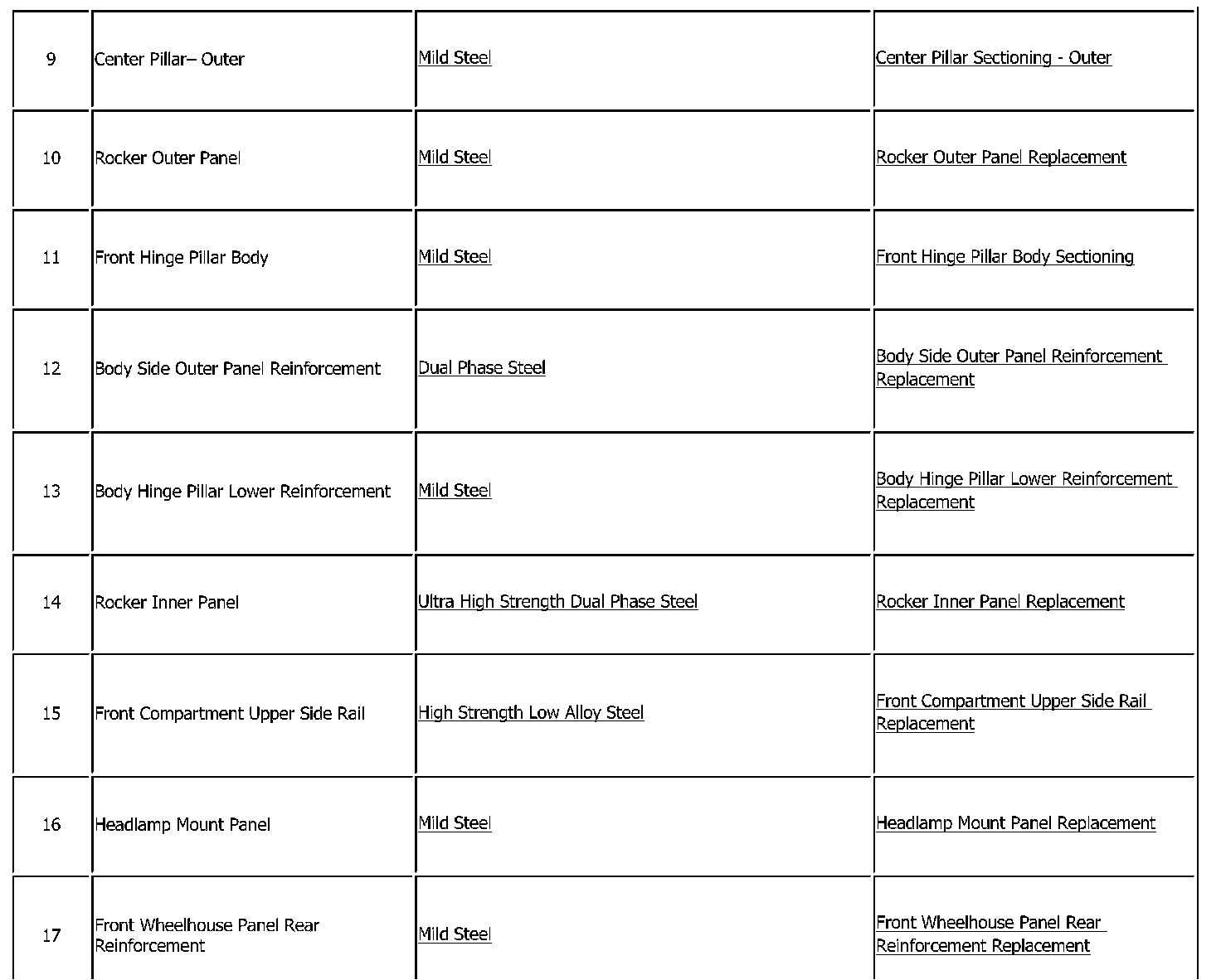

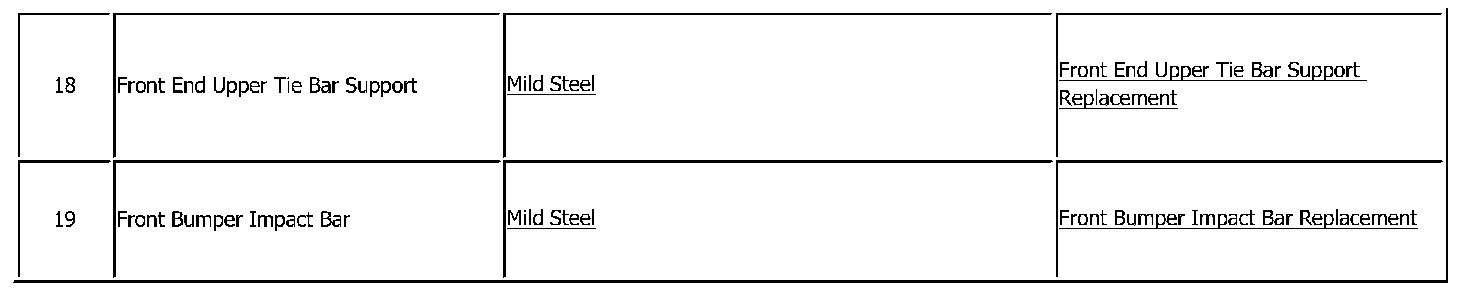

View Front

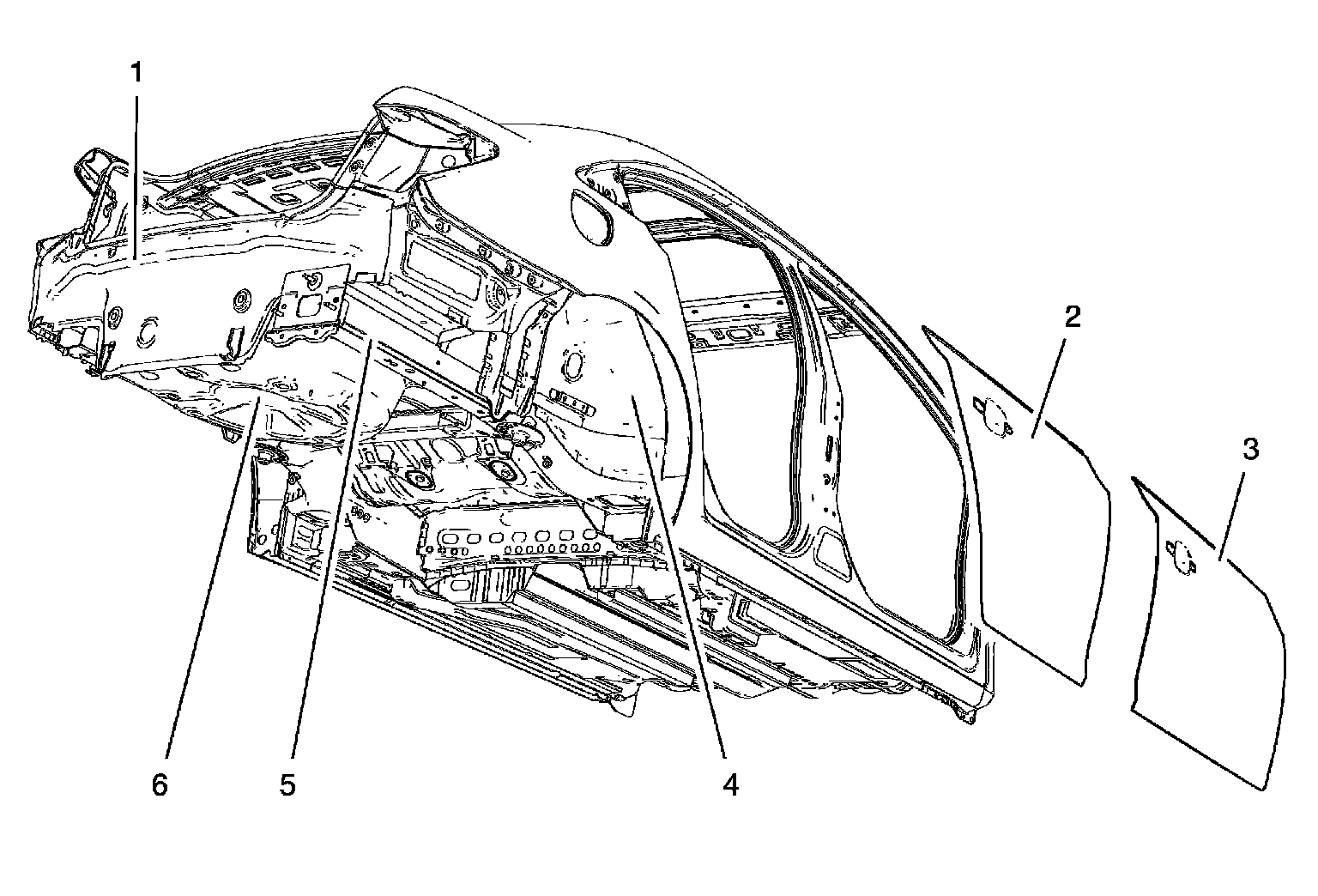

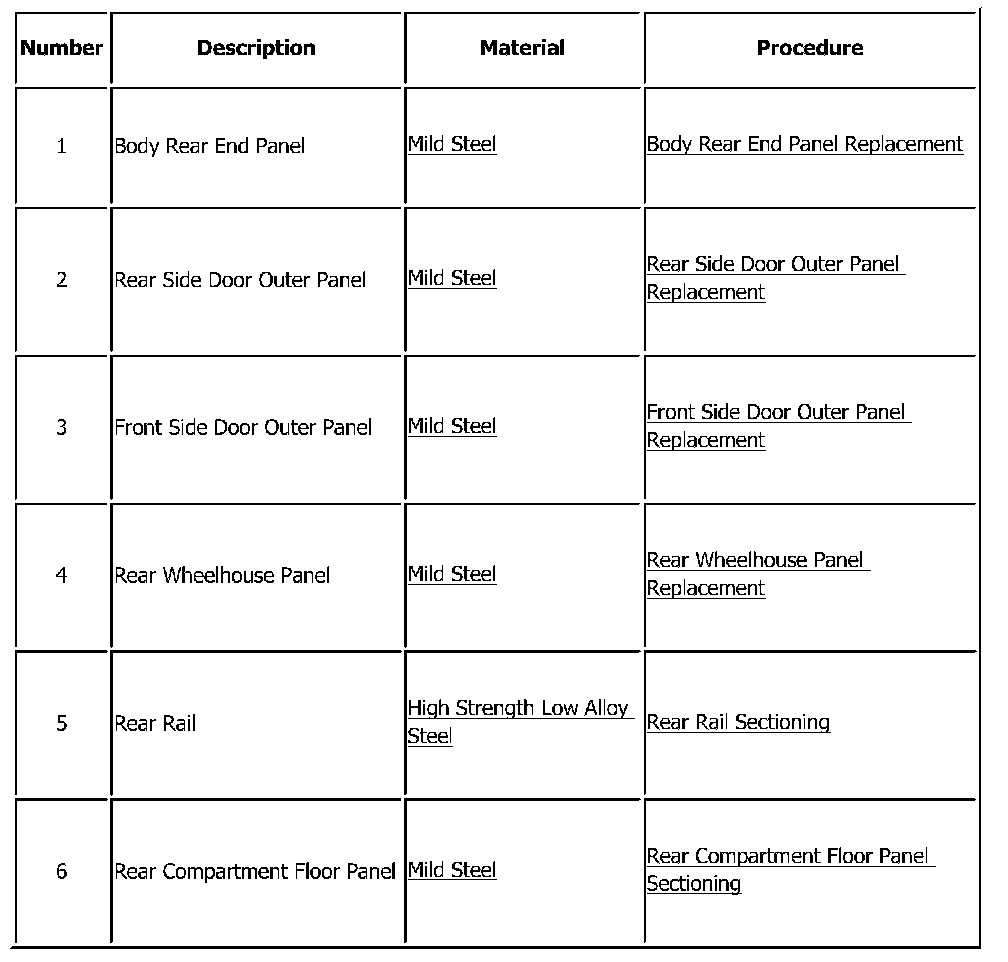

View Rear
