Home >> Chevrolet >> 2012 >> Corvette V8-6.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Diagrams

Air Flow Meter/Sensor: Diagrams

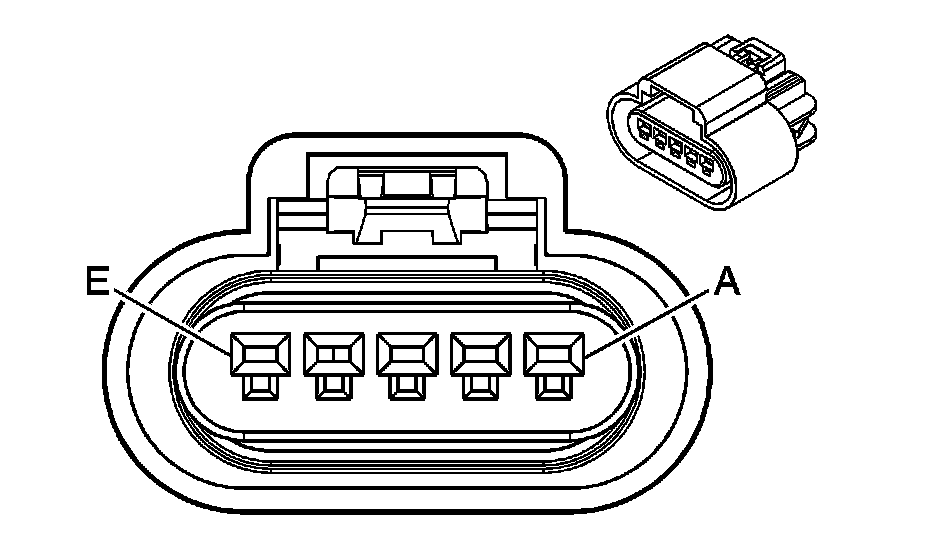

Component Connector End Views

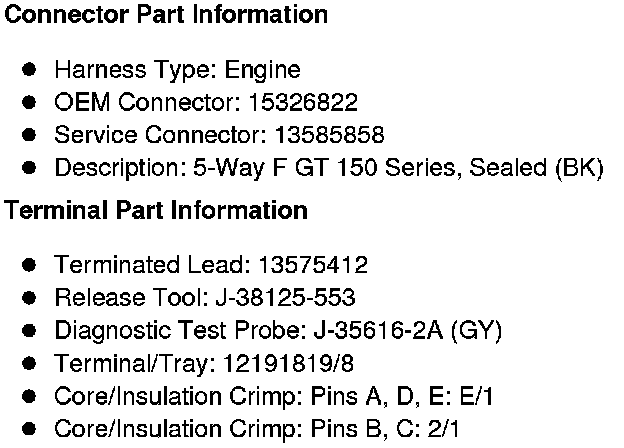

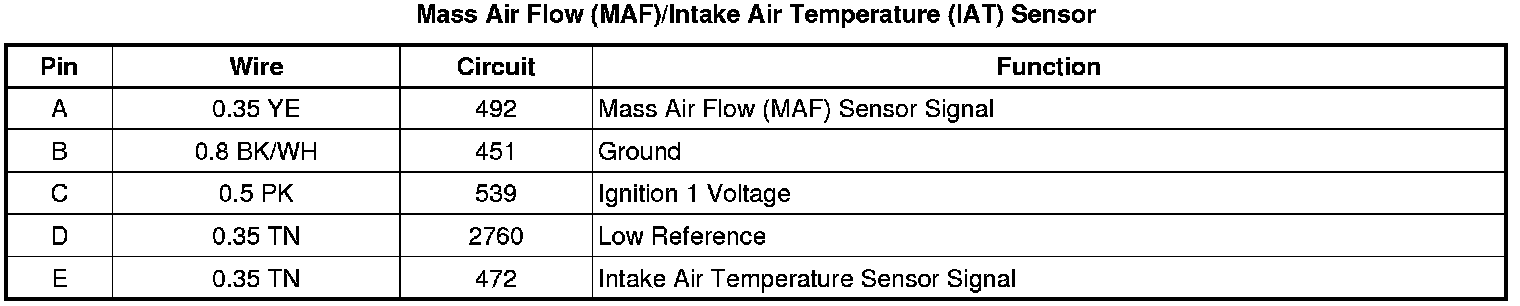

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
