Engine Compartment Electrical Components

Powertrain Component Views

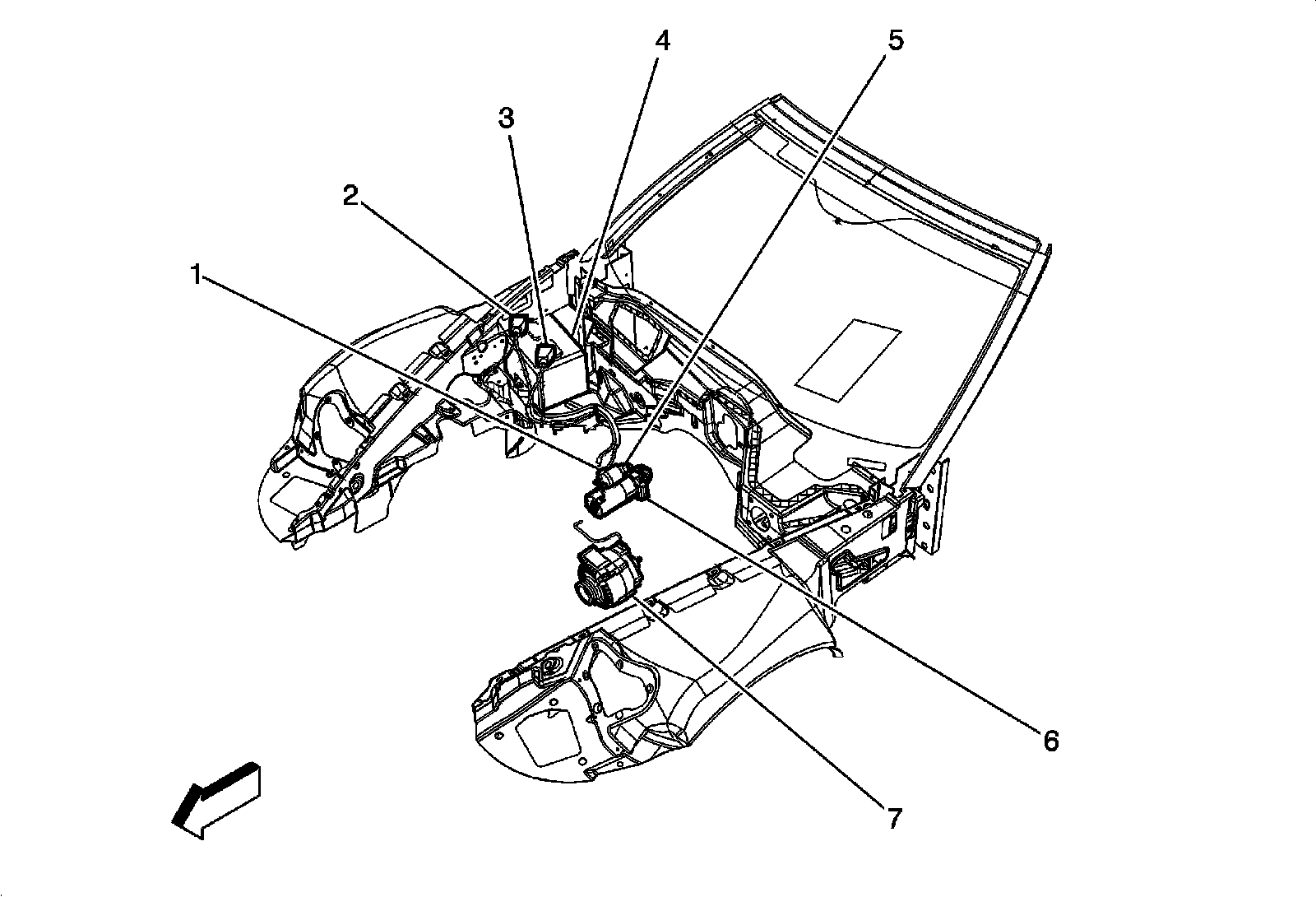

Engine Compartment Electrical Components





1 - G106

2 - Battery Positive Cable

3 - Battery Negative Cable

4 - Battery (LS3 without Z52)

5 - Starter Solenoid

6 - Starter Motor

7 - Generator (LS3 or LS7)
