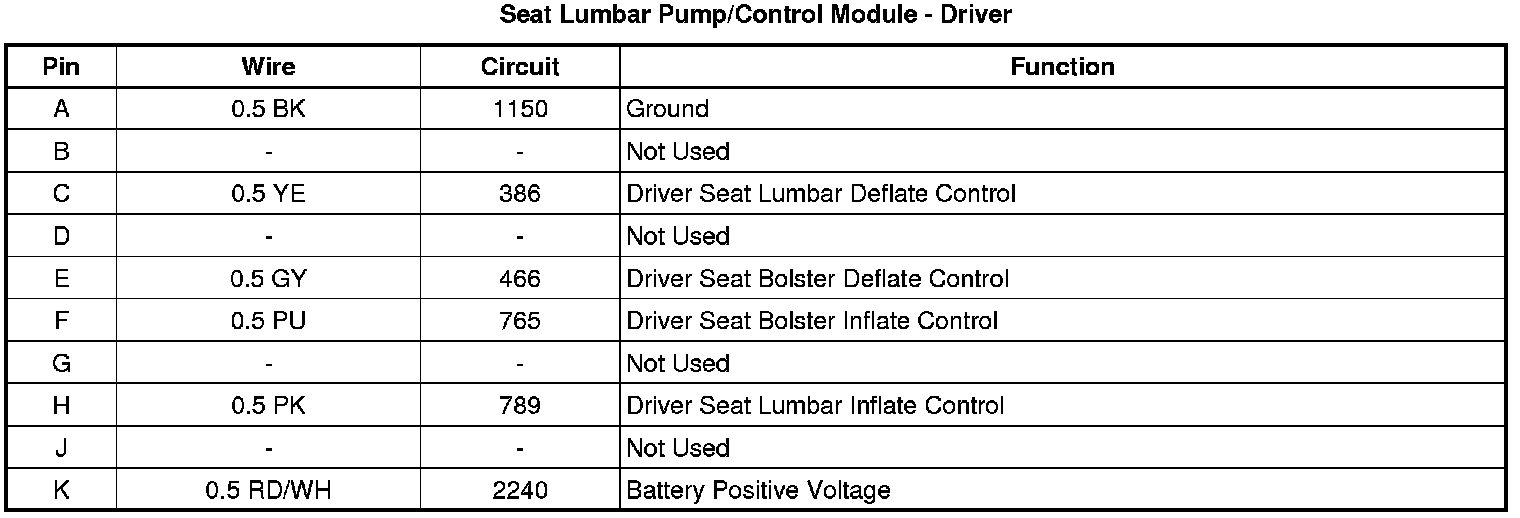

Seat Lumbar Pump/Control Module - Driver

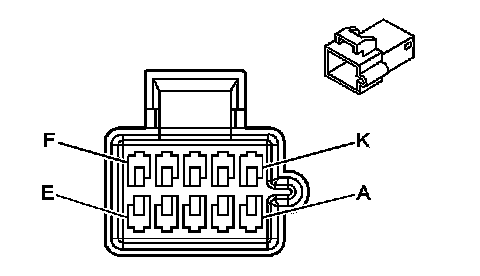

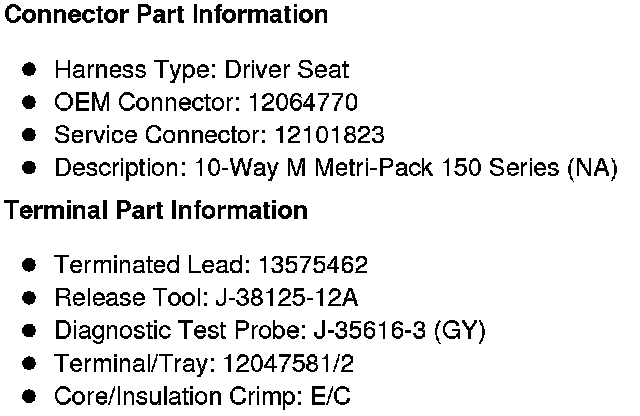

Component Connector End Views
Seat Lumbar Pump/
Control Module
- Driver
