Memory Positioning Switch
Memory Positioning Switch

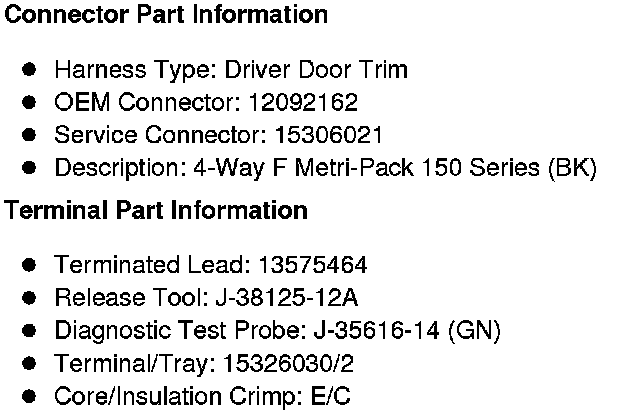

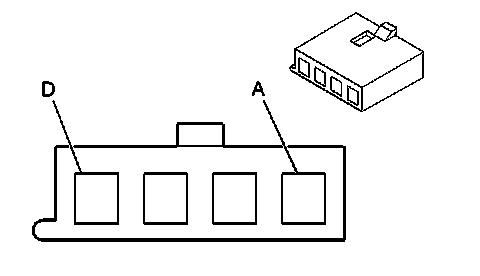

Component Connector End Views

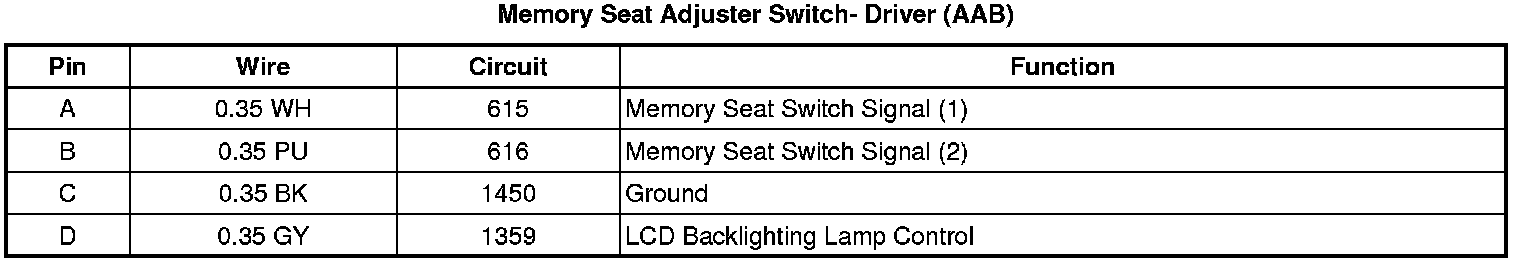

Memory Seat Adjuster Switch- Driver (AAB)
