Combination Switch
>>
Turn Signal/Multifunction Switch X2
Turn Signal/Multifunction Switch X2

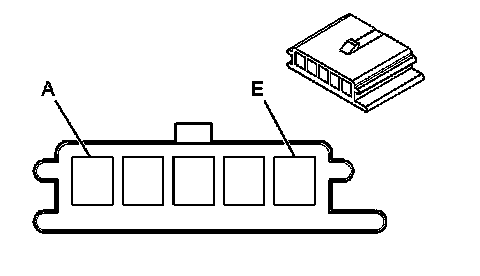

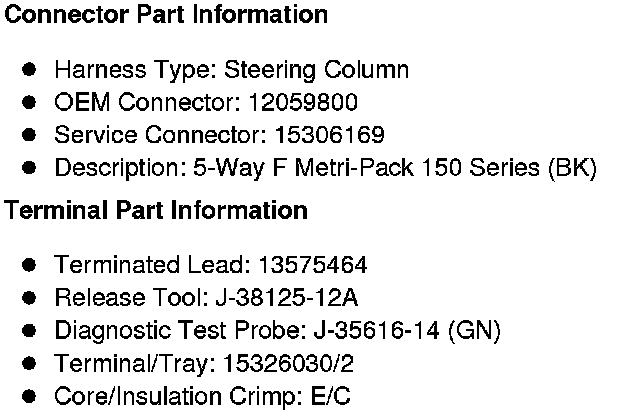

Component Connector End Views

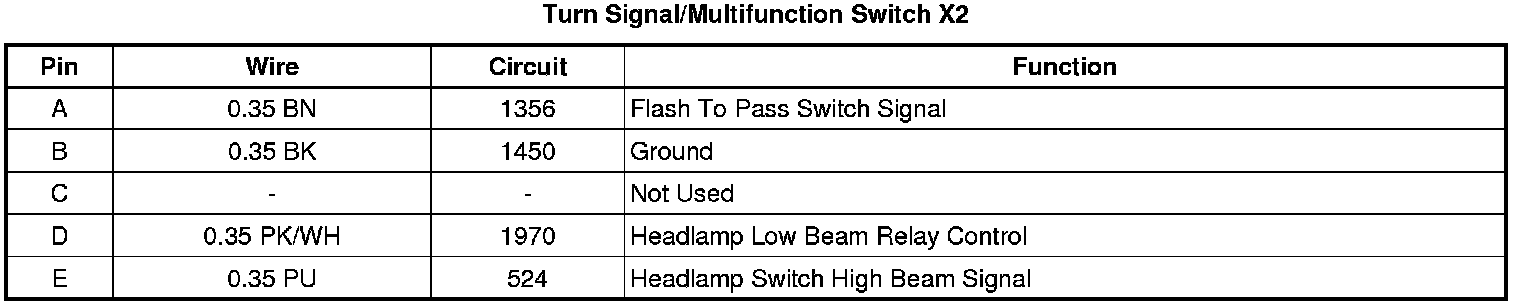

Turn Signal/Multifunction Switch X2
