Vehicle Communication Interface Module (VCIM) X2 (UE1)
Vehicle Communication Interface Module (VCIM) X2 (UE1)

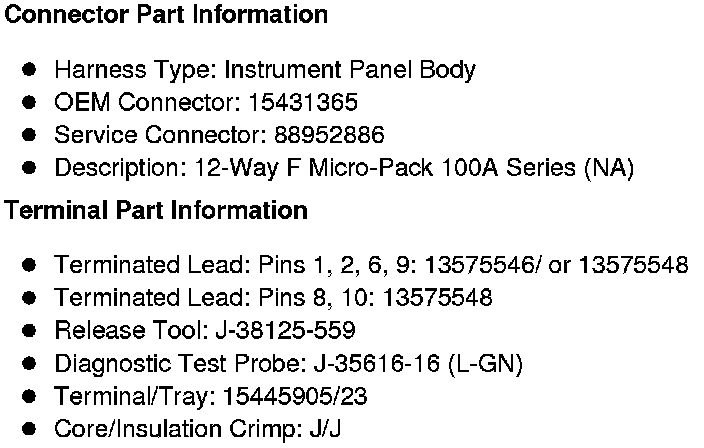

Component Connector End Views

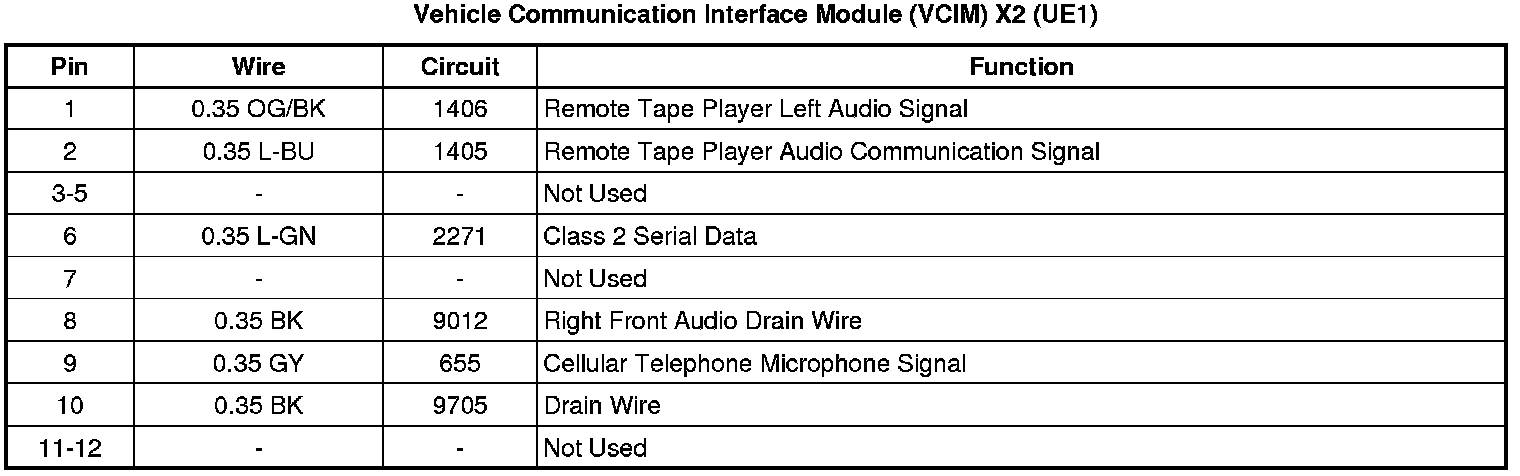

Vehicle Communication Interface Module (VCIM) X2 (UE1)
