Convertible Top Control Module: Locations

Passenger Compartment/Roof Component Views

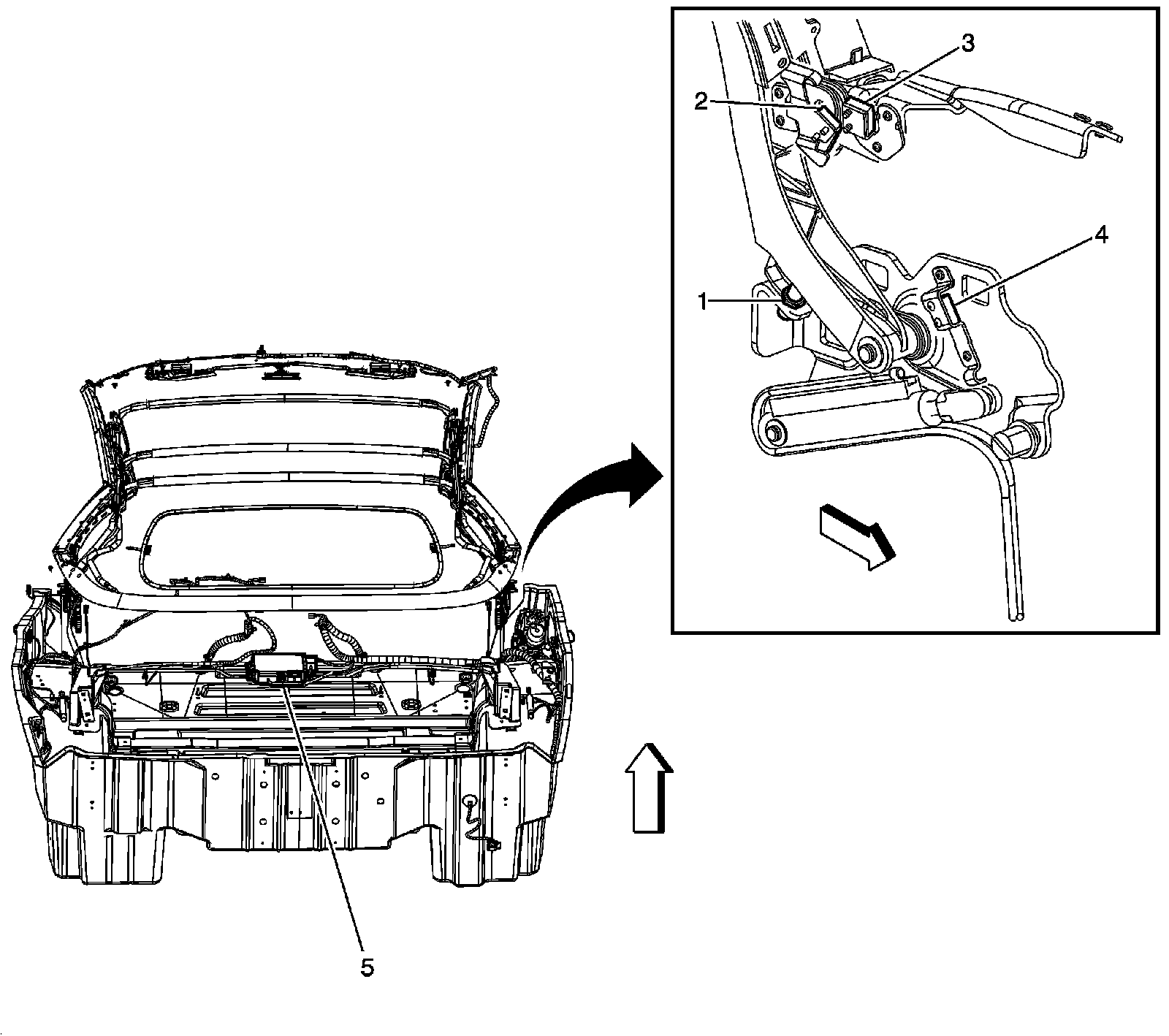

Folding Top Control Module and Position Switch Components (CM7)





1 - Folding Top Closed Position Switch

2 - Folding Top 5 Bow Lowered Switch

3 - Folding Top 5 Bow Raised Switch

4 - Folding Top Open Position Switch

5 - Folding Top Control Module
