Fuel Pump Flow Control Module Relay X2

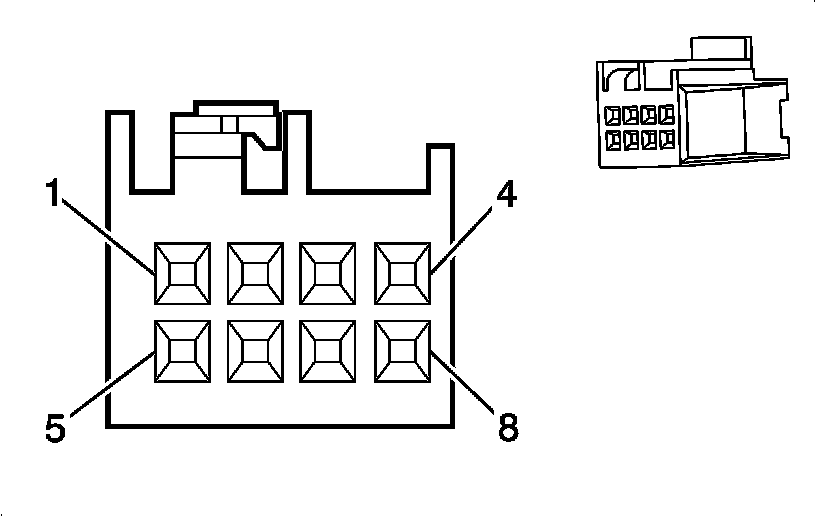

Component Connector End Views

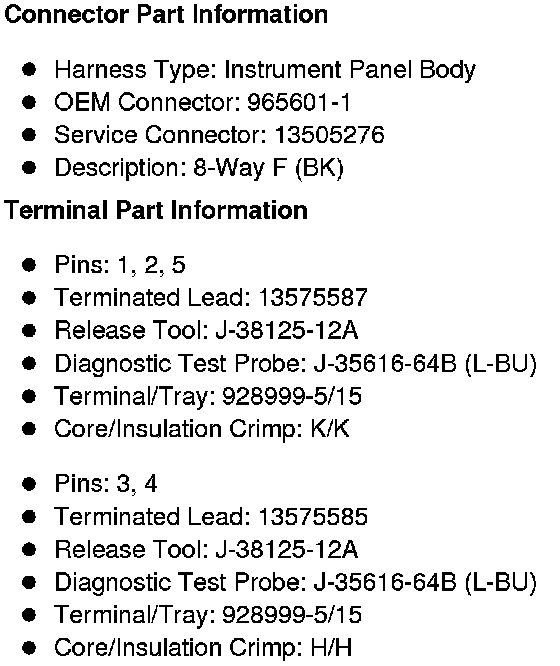

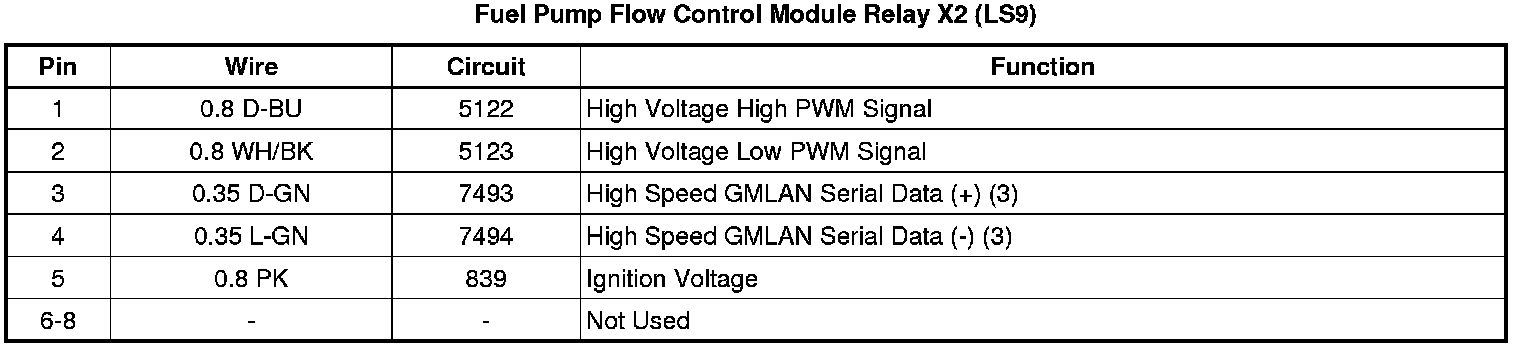

Fuel Pump Flow Control Module Relay X2 (LS9)
