Fuel Pump Flow Control Module Relay X1

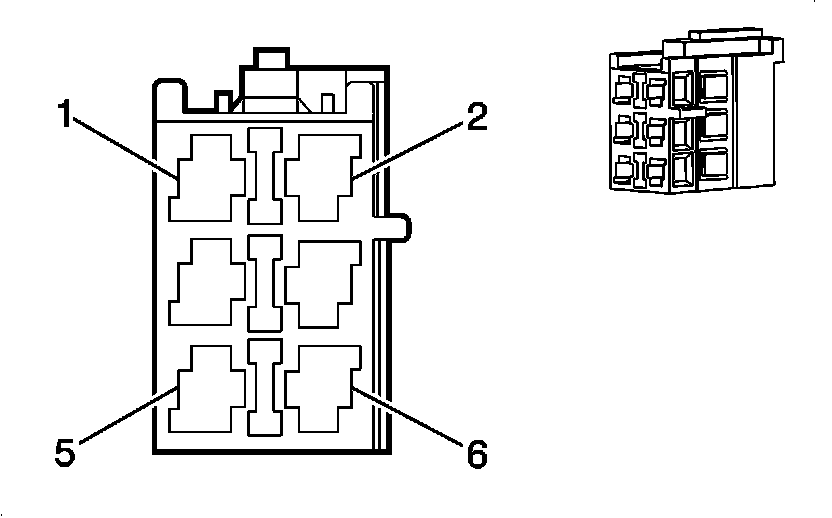

Component Connector End Views

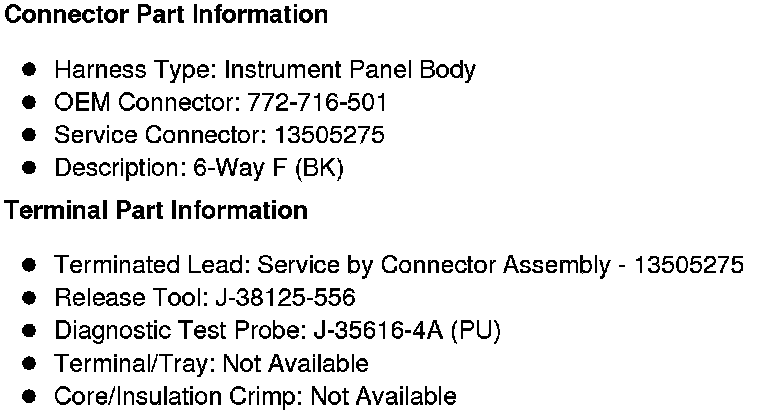

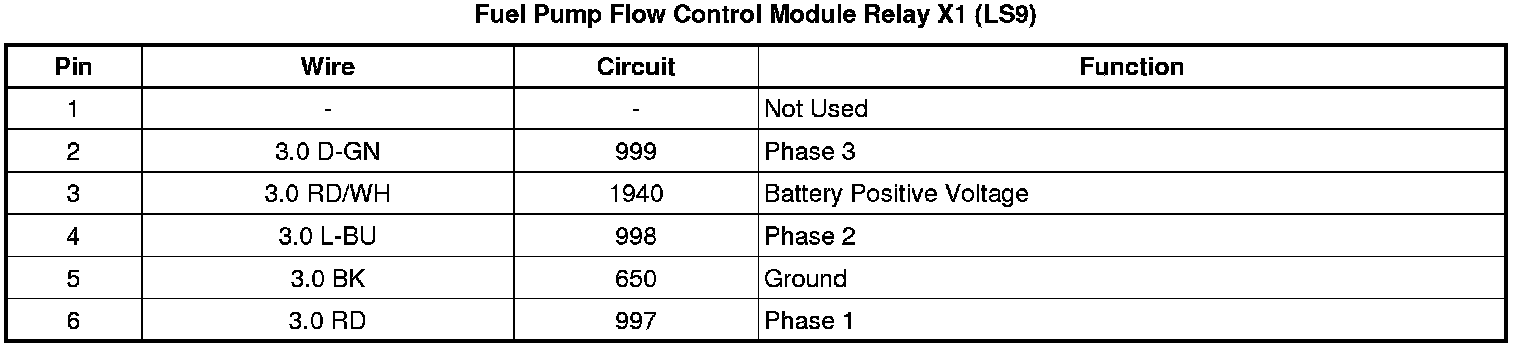

Fuel Pump Flow Control Module Relay X1 (LS9)
