Engine Control Module (ECM) X2
Engine Control Module (ECM) X2

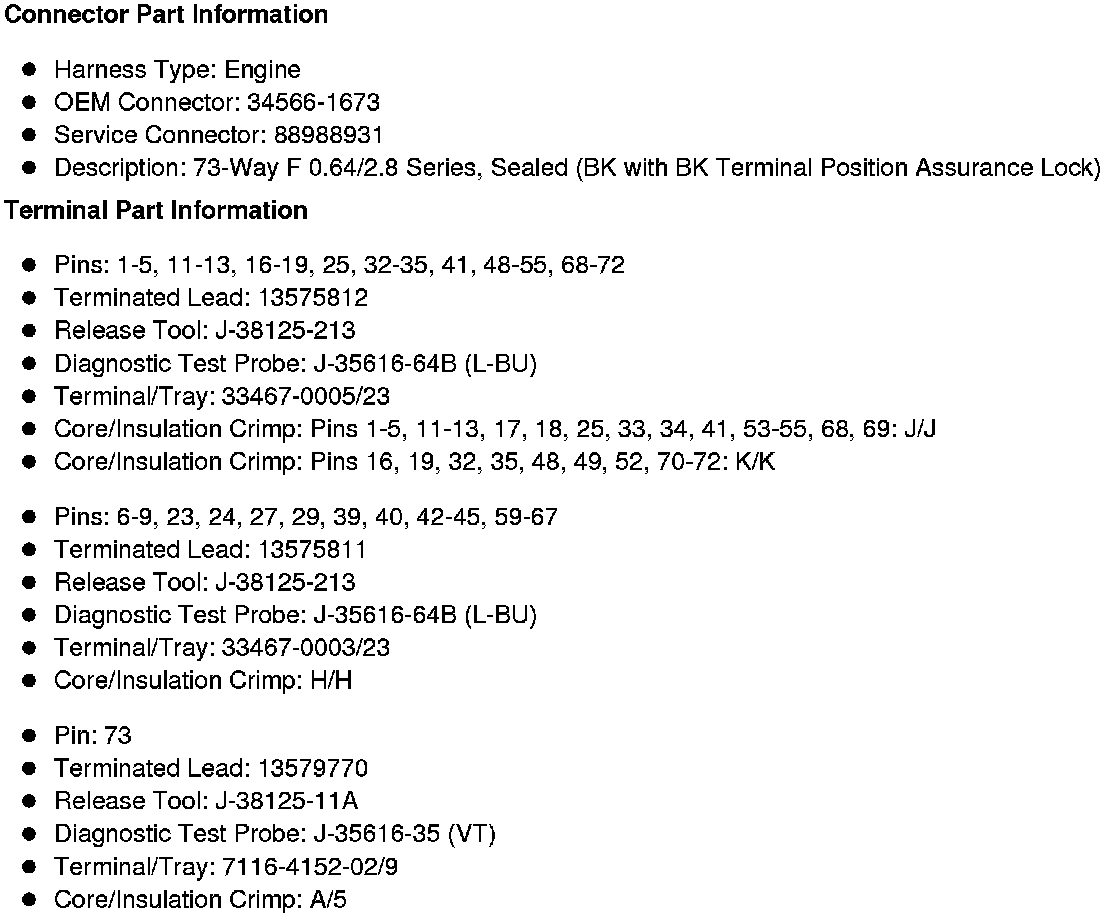

Component Connector End Views

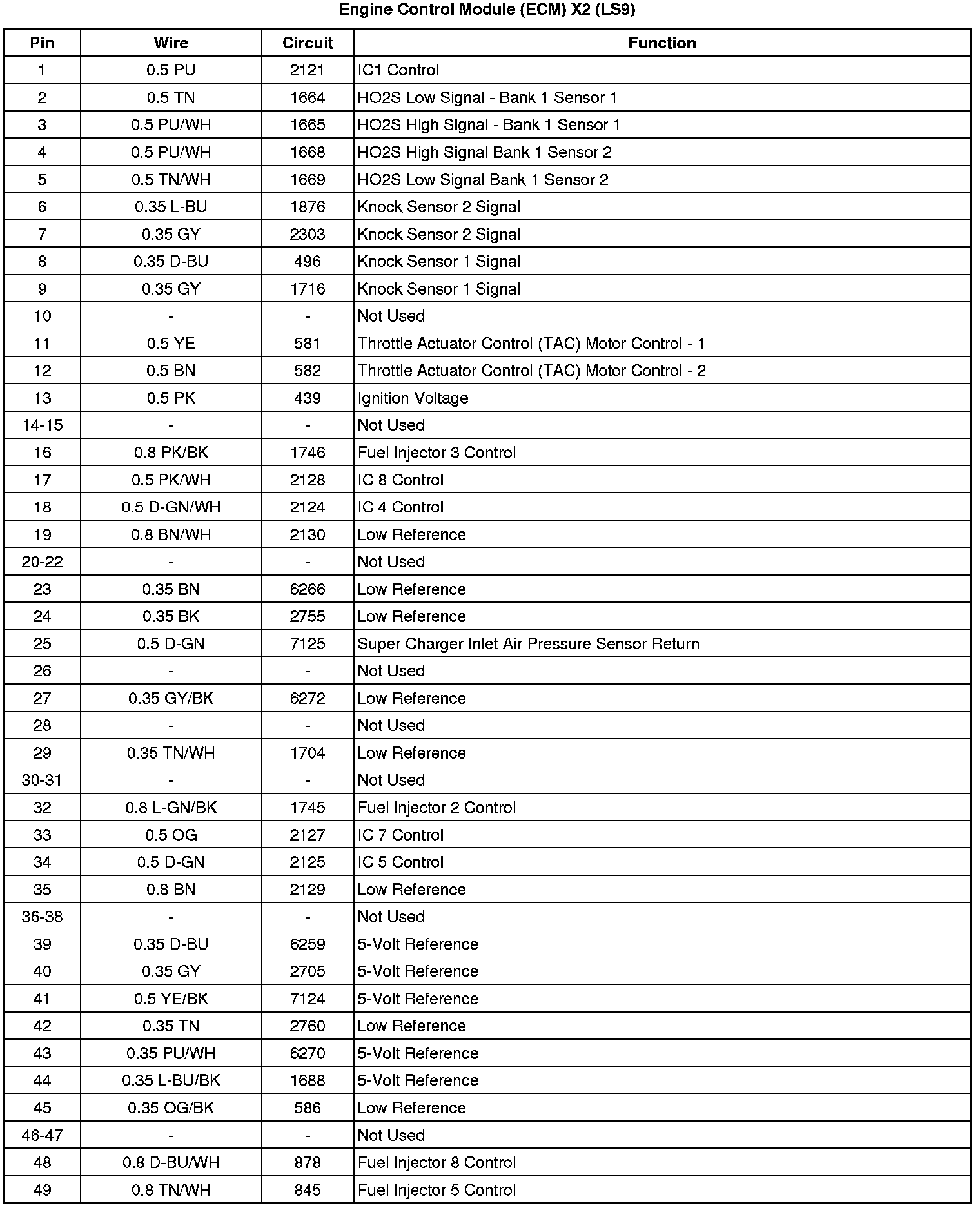

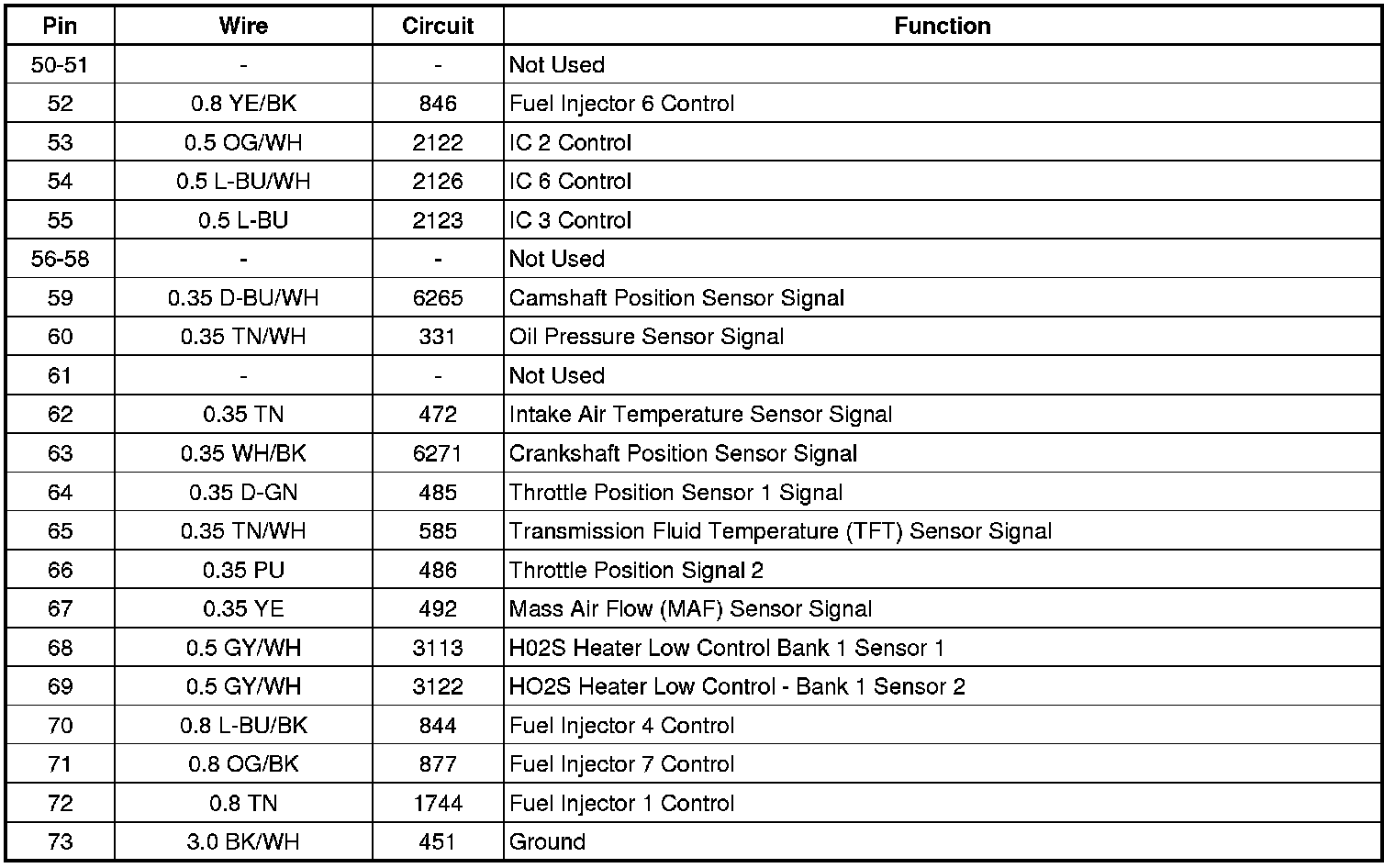

Engine Control Module (ECM) X2 (LS9)
