Vehicle Speed Sensor: Diagrams

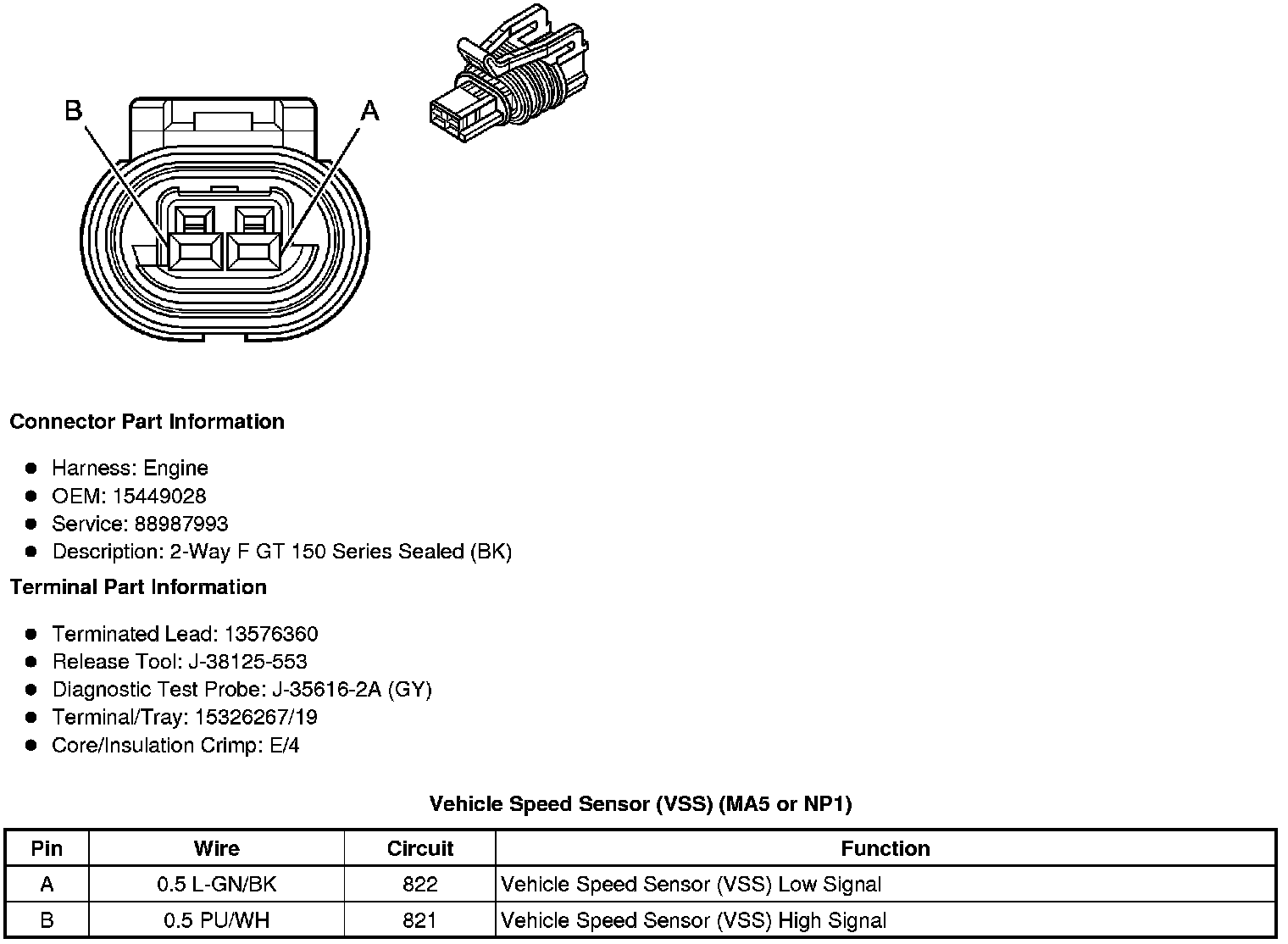

Component Connector End Views

Vehicle Speed Sensor (VSS) (MA5 or NP1)
