Engine Components

Powertrain Component Views

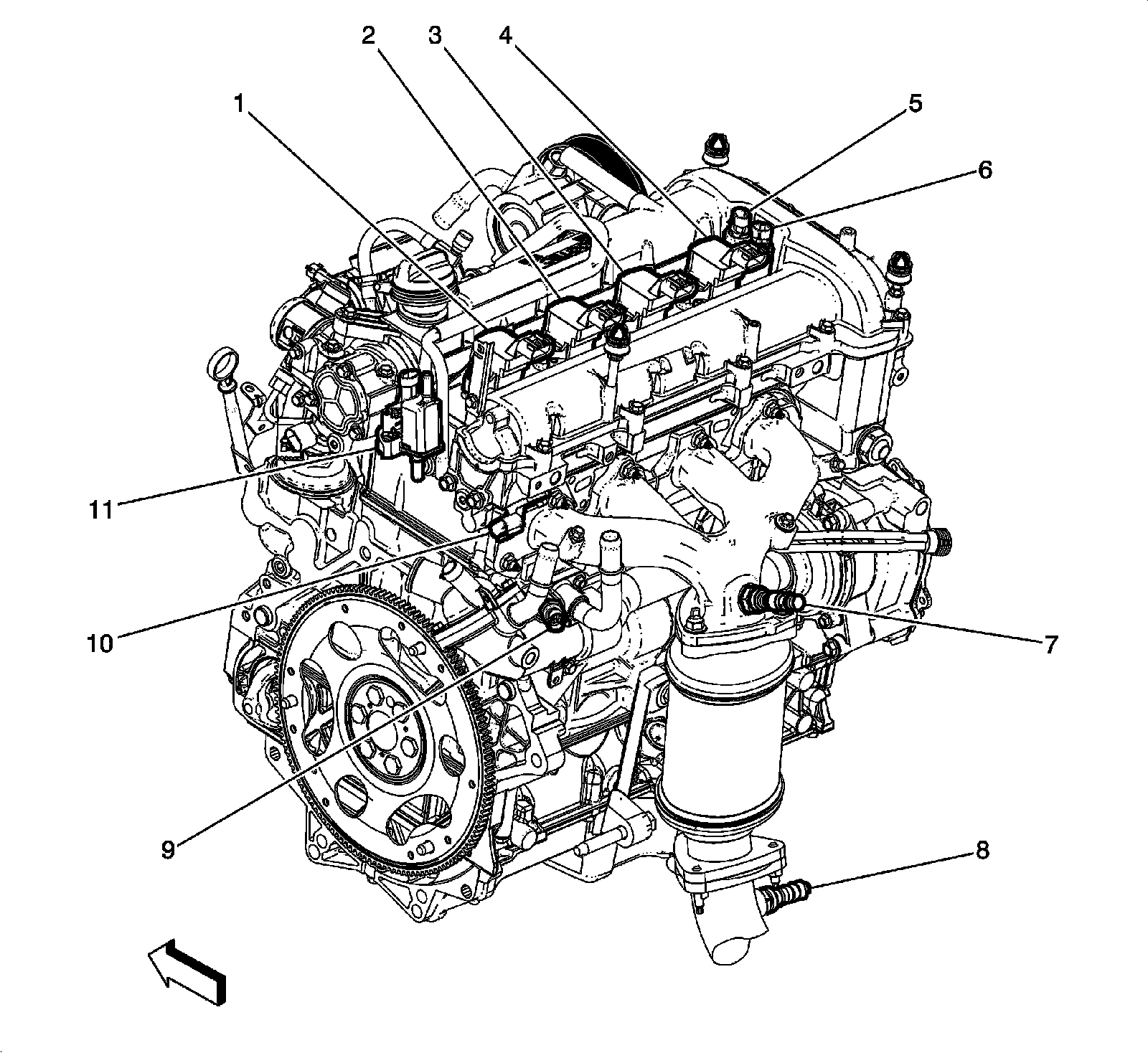

Left Rear Engine Components (LEA)





1 - Ignition Coil 4

2 - Ignition Coil 3

3 - Ignition Coil 2

4 - Ignition Coil 1

5 - Camshaft Position Actuator Solenoid Valve - Intake

6 - Camshaft Position Actuator Solenoid Valve - Exhaust

7 - Heated Oxygen Sensor 1

8 - Heated Oxygen Sensor 2

9 - Engine Coolant Temperature Sensor

10 - Camshaft Position Sensor - Exhaust

11 - Evaporative Emission (EVAP) Purge Solenoid Valve
