Thread Repair Specifications
Thread Repair Specifications (L98, L76, L77)
Engine Block - Front/Rear Views
Engine Block - Left/Right Side Views
Engine Block - Top/Bottom Views
Cylinder Head - Top/End Views
Cylinder Head - Intake/Exhaust Side Views
Thread Repair Specifications (L98, L76, L77)

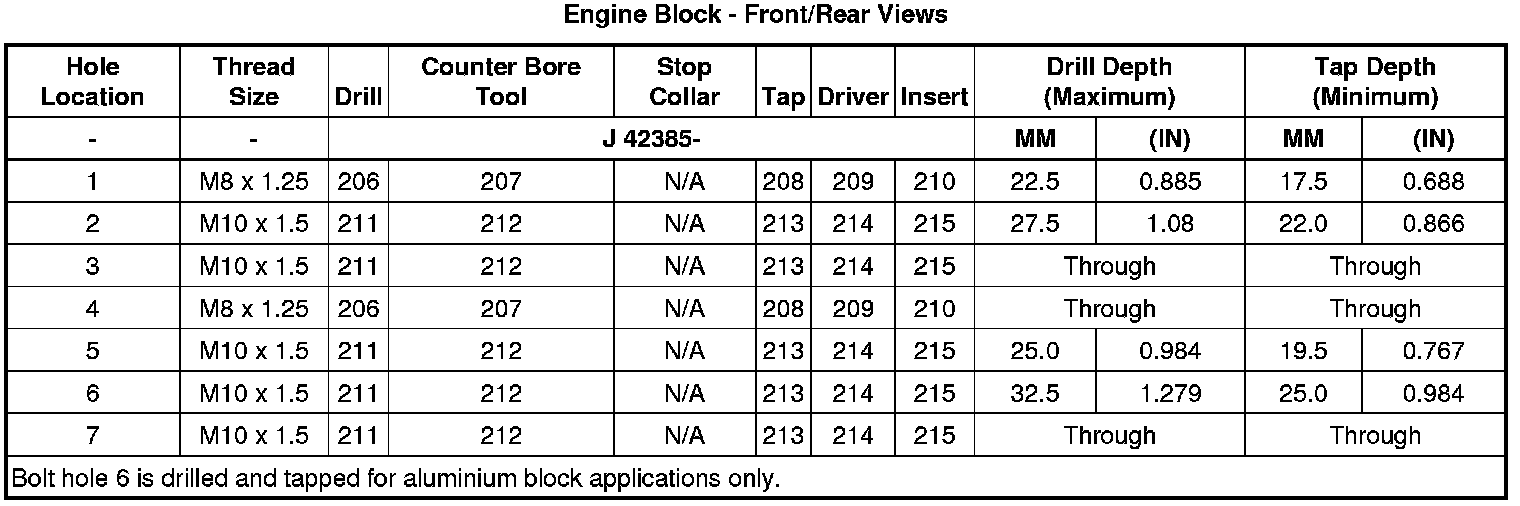

Engine Block - Front/Rear Views

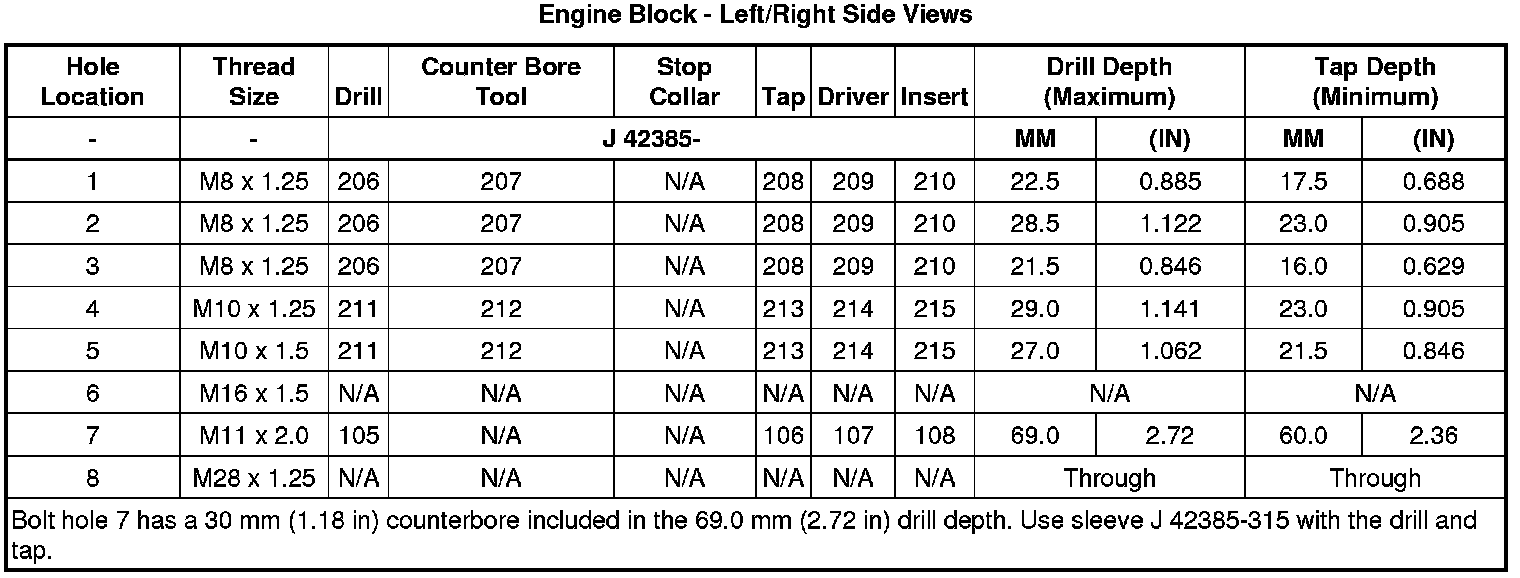

Engine Block - Left/Right Side Views

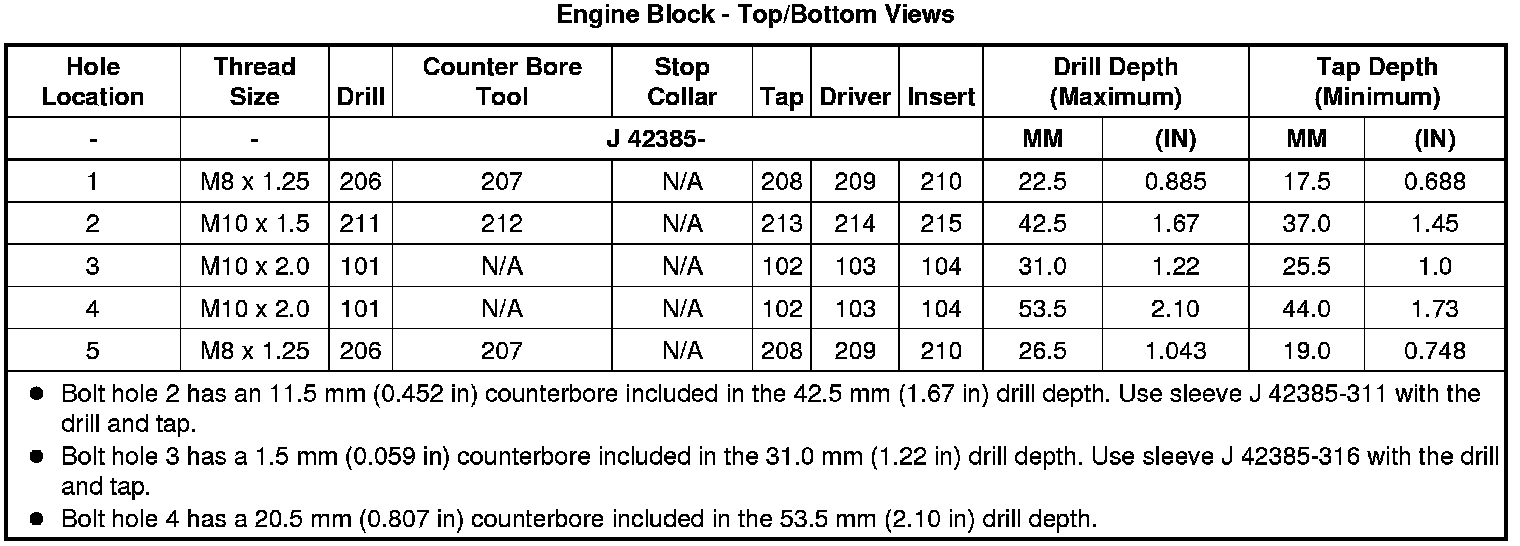

Engine Block - Top/Bottom Views

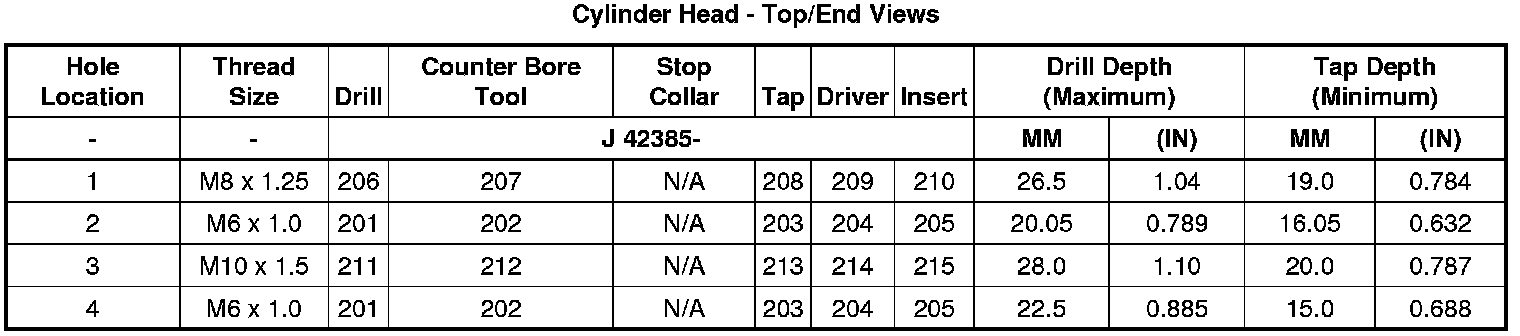

Cylinder Head - Top/End Views

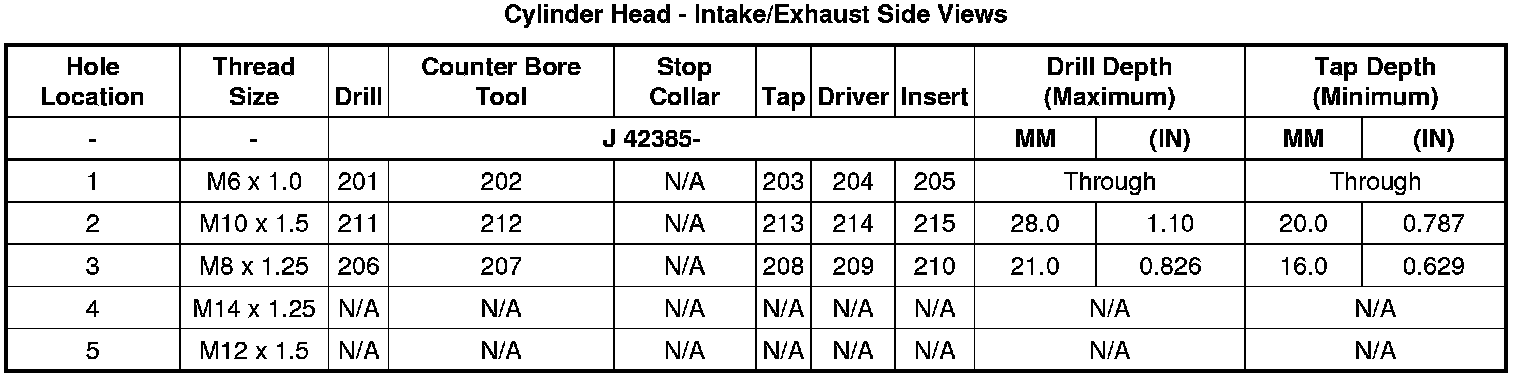

Cylinder Head - Intake/Exhaust Side Views
