Fuel Level Sensor

Wheels/Vehicle Underbody Component Views

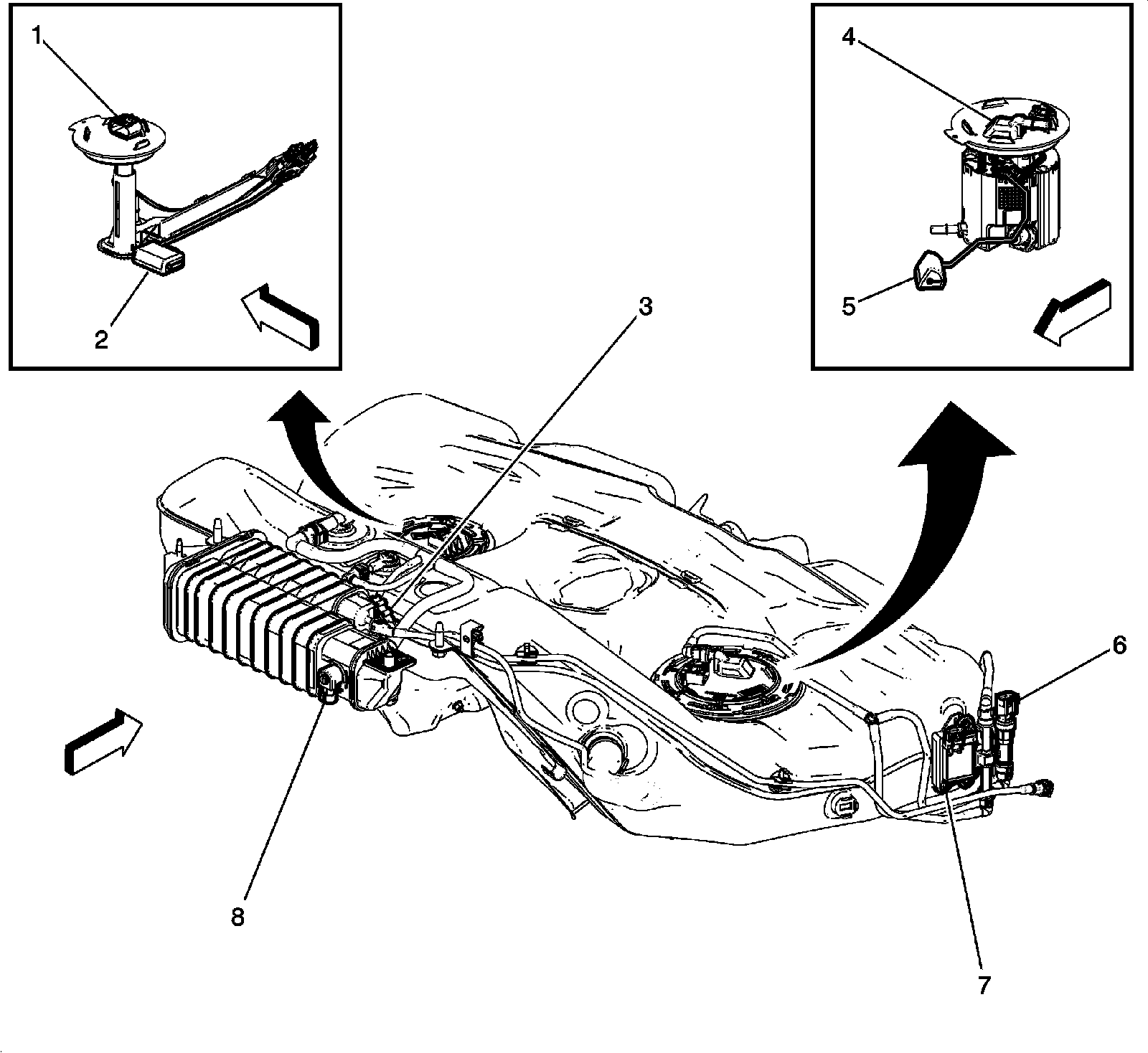

Fuel Tank Components





1 - A7 Fuel Pump and Level Sensor Assembly

2 - B46B Fuel Level Sensor - Secondary

3 - Evaporative Emission Canister

4 - A7 Fuel Pump and Level Sensor Assembly

5 - B46 Fuel Level Sensor

6 - B150 Fuel Tank Pressure Sensor

7 - B198 Fuel Composition Sensor

8 - Q13 Evaporative Emission Vent Solenoid Valve
