Throttle Position Sensor: Locations

Instrument Panel/Center Console Component Views

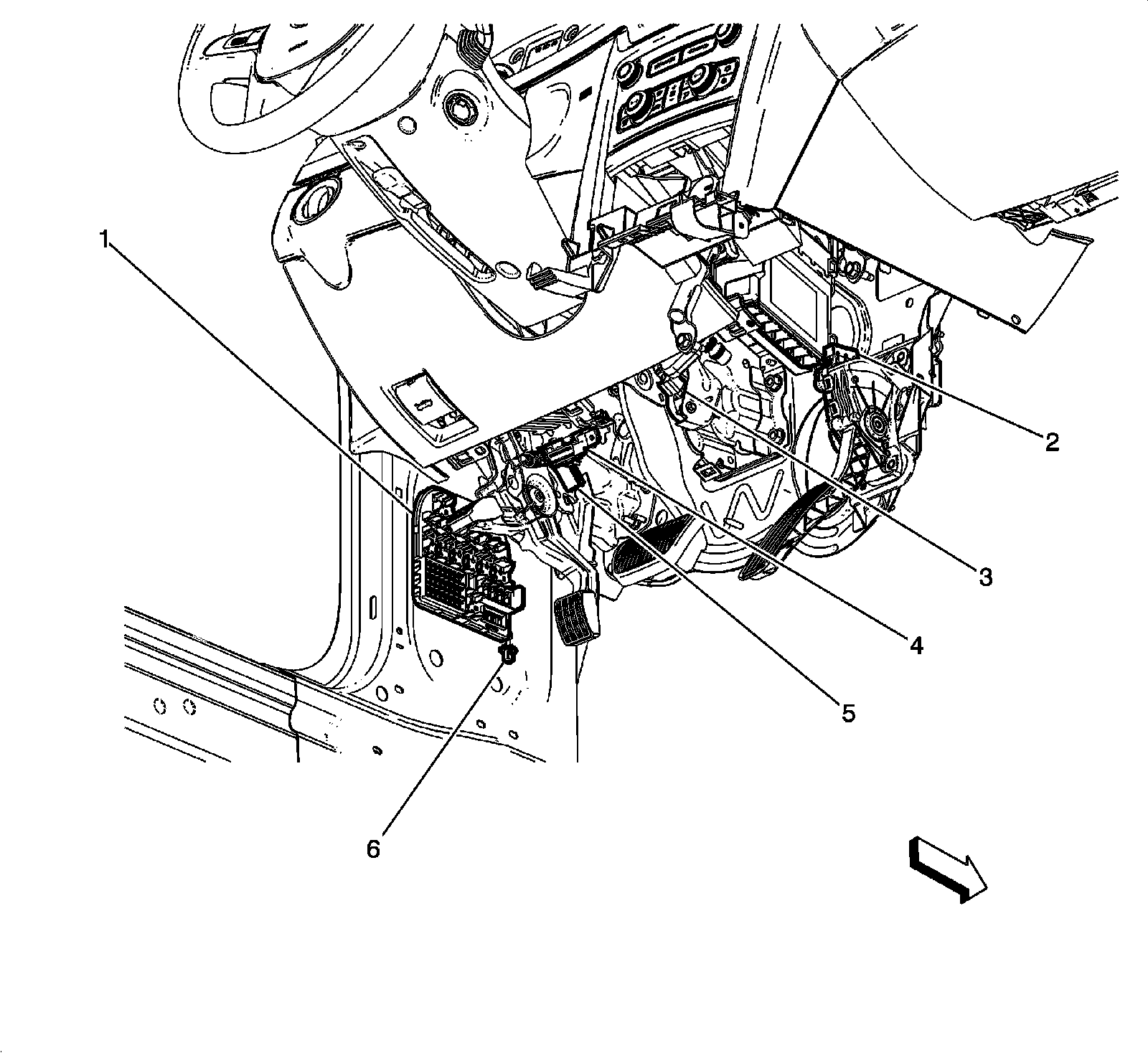

Below the Left Side of the Instrument Panel Components





1 - X51A Fuse Block - Instrument Panel

2 - B107 Accelerator Pedal Position Sensor

3 - B22 Brake Pedal Position Sensor

4 - X84 Data Link Connector

5 - B80 Park Brake Switch

6 - T2 Antenna
