Instrument Panel and Center Console Components

Instrument Panel/Center Console Component Views

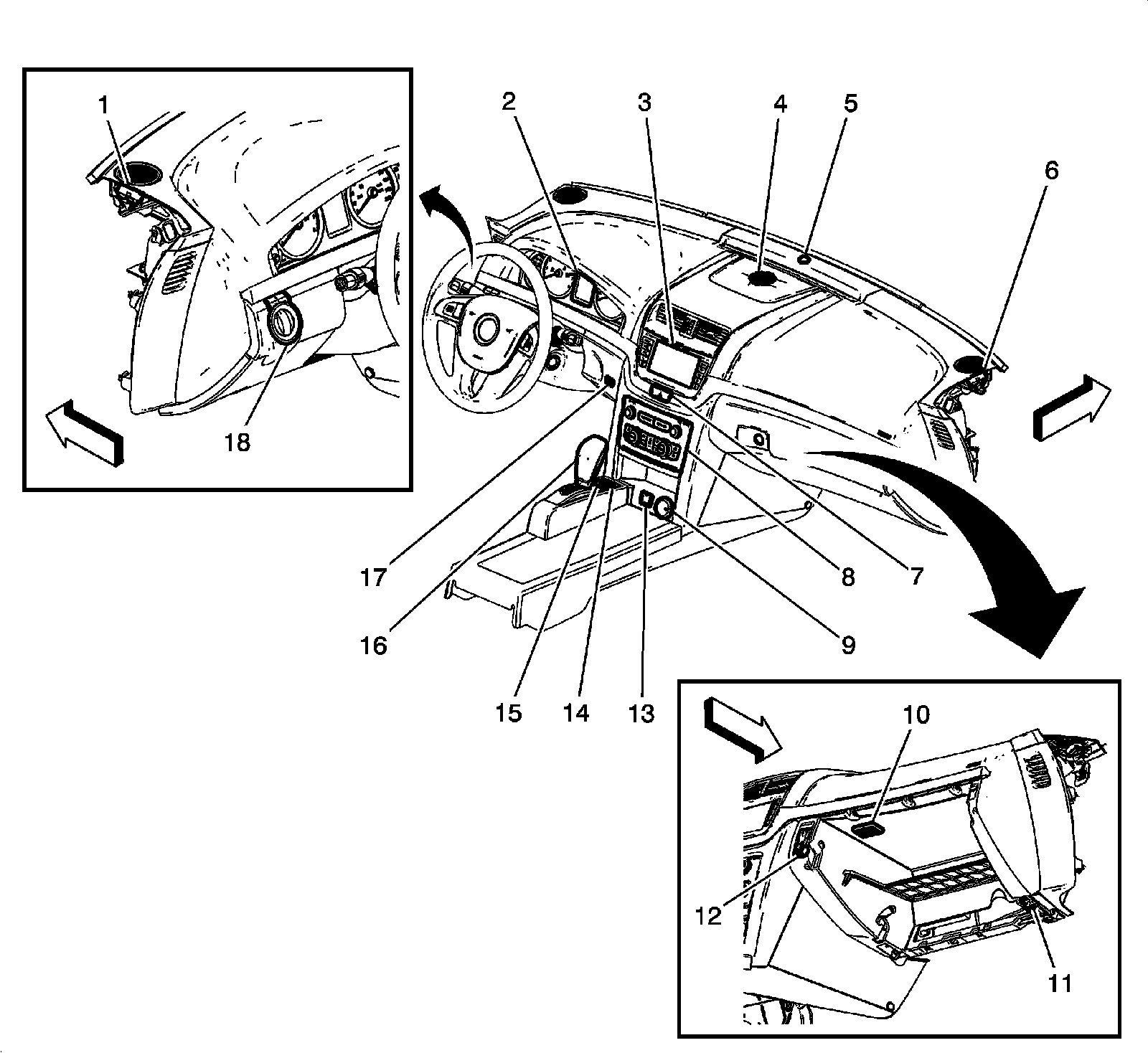

Instrument Panel and Center Console Components





1 - P19H Speaker - Left Front Tweeter

2 - P16 Instrument Cluster

3 - P17 Info Display Module

4 - P19B Speaker - Center Instrument Panel

5 - B10B Ambient Light/Sunload Sensor

6 - P19V Speaker - Right Front Tweeter

7 - S26 Hazard Warning Switch

8 - A20 Radio/HVAC Controls

9 - X80H Accessory Power Receptacle - Center Console

10 - E27 Instrument Panel Compartment Lamp

11 - S35 Instrument Panel Compartment Lamp Switch 2

12 - S35 Instrument Panel Compartment Lamp Switch

13 - S58B Rear Compartment Lid Unlatch Switch - Interior

14 - S48E Multifunction Switch Module

15 - S48E Multifunction Switch Module

16 - S3 Transmission Shift Lever

17 - B7A Inside Air Temperature Sensor

18 - S30 Headlamp Switch
